(110) - STEERING MECHANISM, FRONT AXLE STAY ROD ATTACHMENT, FOR USE W/POWER STEERING

Запчасти Case IH B414 (110) - STEERING MECHANISM, FRONT AXLE STAY ROD ATTACHMENT, FOR USE W/POWER STEERING Steering Mechanism

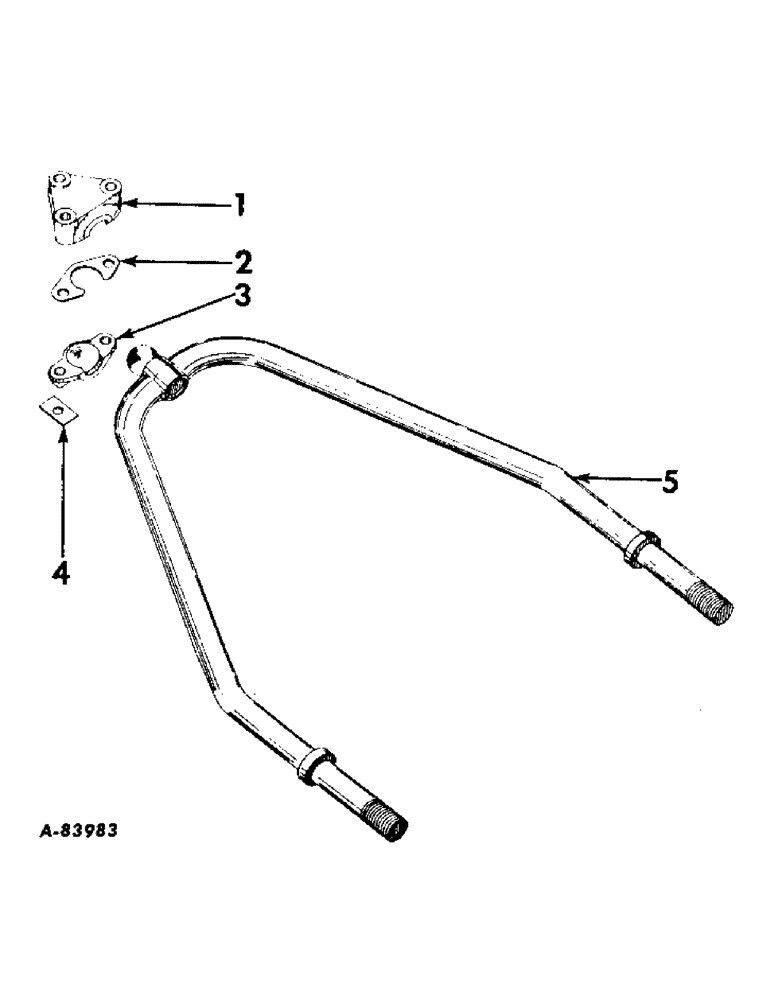

Схема запчастей Case IH B414 - (110) - STEERING MECHANISM, FRONT AXLE STAY ROD ATTACHMENT, FOR USE W/POWER STEERING Steering Mechanism
3
2
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3043920R1

CUP

SOCKET, STAY ROD BALL

1шт.

2

842389R1

SHIM

STAY ROD SOCKET CAP SHIM

1шт.

3

842388R1

CAP

STAY ROD BALL SOCKET

1шт.

4

842391R1

PLATE

BALL SOCKET LOCK

3шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

1шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 HEX-HD CAP

2шт.

5

3043919R11

STIRRUP

ROD ASSY, STAY

1шт.

427370

NUT

9/16-12 x 1-3/8 HEX

2шт.
