Запчасти Case IH B414 (106) - STEERING MECHANISM, POWER STEERING BOOSTER Steering Mechanism

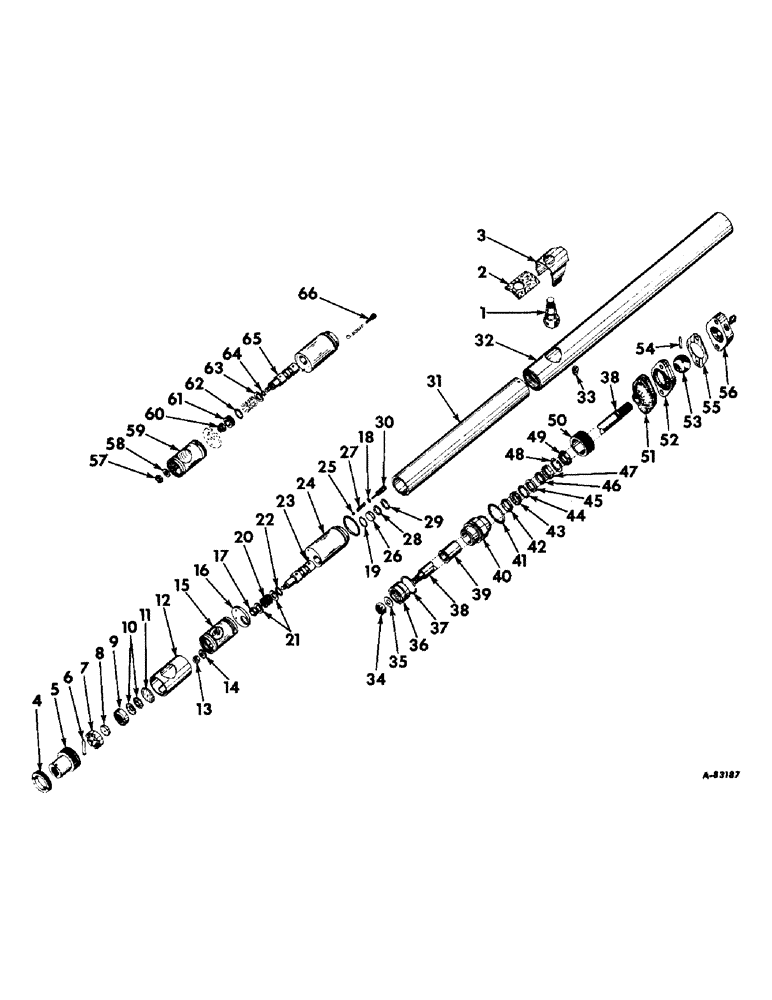

Схема запчастей Case IH B414 - (106) - STEERING MECHANISM, POWER STEERING BOOSTER Steering Mechanism
45
7
28
60
55
33
52
53
43
47
66
36
9
13
29
10
20
4
56
26
22
44
35
39
62
50
14
2
61
17
42
21
41
34
19
5
27
51
48
64
63
40
38
58
11
31
12
46
38
24
3
6
8
25
1
54
65
57
32
23
16
37
59
15
49
18
30

Артикул

Название

Примечание

Количество

3043938R91

STEERING CYLINDER

BOOSTER W/ADAPTER ASSY, STEERING, Serial Range: -B-414/23355

1шт.

3043938R92

STEERING CYLINDER

BOOSTER W/ADAPTER ASSY, STEERING, Start Serial: B-414/23356

1шт.

1

3048486R1

PIN

ACTUATING BALL

1шт.

2

3048508R1

PAD

GREASE RETAINER

1шт.

3

3048507R1

COVER

SPRING

1шт.

4

3048489R1

RING

LOCK (FOR EXTENSION)

1шт.

5

3048488R1

EXTENSION

TAKE-OFF

1шт.

6

3046133R1

CLIP

SPRING

1шт.

7

3046132R1

HOLDER, BALL CUP, TWO HOLE, Serial Range: -B-414/23355

1шт.

7

3064058R1

HOLDER

BALL CUP, SIX HOLE, Start Serial: B-414/23356

1шт.

8

3046131R1

CUP

BALL

1шт.

9

3046129R1

CUP

BALL

1шт.

10

3046128R1

WASHER

BELLVILLE

2шт.

11

3046127R1

WASHER

BACKING

1шт.

12

3046134R1

SLEEVE

LOCATING

1шт.

13

3064493R1

NUT, ON SPOOL, Start Serial: B-414/23356

1шт.

3046119R1

PIN

SPLIT

1шт.

14

3064494R1

WASHER

HARDENED, Start Serial: B-414/23356

1шт.

15

3064496R1

SLEEVE

OPERATING B-414/23356 to

1шт.

16

3046122R1

SPACER

1шт.

17

3064495R1

COLLAR CLAMP

COLLAR, Start Serial: B-414/23356

1шт.

18

3064490R1

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

ON PLUG, Start Serial: B-414/23356

1шт.

19

3064491R1

O-RING

O-RING, IN VALVE BODY, Start Serial: B-414/23356

1шт.

20

3048483R1

SPRING

RE-ACTION

1шт.

21

3064516R1

WASHER, RE-ACTION, Start Serial: B-414/23356

2шт.

22

3064492R1

RING

O-RING, ON SPOOL (, Start Serial: B-414/23356

1шт.

23

3046116R1

PIN, LOCATING

2шт.

24

3064488R91

BODY

VALVE AND SPOOL ASSY, Start Serial: B-414/23356

1шт.

25

3046102R1

BALL

RELIEF VALVE

1шт.

26

3046113R1

COVER

END (IN VALVE BODY)

1шт.

27

3046103R1

SPRING

RELIEF VALVE

1шт.

28

3046112R1

RING

O-RING, END COVER

1шт.

29

3046114R1

RETAINER

CIRCLIP, INTERNAL

1шт.

30

3064489R91

PLUG AND PIN, RELIEF VALVE, Start Serial: B-414/23356

1шт.

31

3048491R1

TUBE, INNER, Serial Range: -B-414/23355

1шт.

31

3065312R1

TUBE

INNER, Start Serial: B-414/23356

1шт.

3048490R1

HARDWARE

PIN, SPLIT (AT ENDS)

2шт.

32

3048487R91

TUBE ASSY, OUTER, Serial Range: -B-414/23355

1шт.

32

3065311R91

TUBE

ASSY, OUTER, Start Serial: B-414/23356

1шт.

33

3046137R1

FITTING

LUBRICATION

1шт.

34

3048496R1

NUT

1шт.

3048497R1

PIN

SPLIT

1шт.

35

3048495R1

WASHER

1шт.

36

3048493R1

PISTON

1шт.

37

3048494R1

RING

PISTON

1шт.

38

3048492R91

ROD

W/BALL AND PIN, PISTON

1шт.

39

BUSHING, BEARING (ORDER 3048498R91)

1шт.

40

3048498R91

CRANKSHAFT BEARING

BEARING W/BUSHING ASSY

1шт.

41

310939R1

O-RING

BEARING (1-3/4 x 2 x 1/8)

2шт.

42

3048500R1

SEAL

SPREADER, SEAL

1шт.

43

3048501R1

RING

GLAND

1шт.

44

3048502R1

WASHER

VELLUMOID

1шт.

45

3048504R1

WASHER

METAL

1шт.

46

3048499R1

BLADE

SCRAPER, SQUARE SECTION RUBBER

1шт.

47

3048505R1

RING RACE

HOUSING, RUBBER SCRAPER

1шт.

48

3048506R1

RETAINER

CIRCLIP, INTERNAL

1шт.

49

3048509R1

BLADE

SCRAPER, LIP

1шт.

50

3048503R1

SCRAPER RING

RING, BEARING LOCK

1шт.

51

3043944R1

COVER

RUBBER PROTECTIVE

1шт.

52

3043943R1

CUP

INNER BALL

1шт.

53

BALL, ANCHOR (ORDER 3048492R91)

1шт.

54

PIN, ANCHOR BALL (ORDER 3048492R91)

1шт.

55

3043940R1

SHIM

TO ANCHOR CUPS (.0024)

1шт.

55

3043941R1

SHIM

TO ANCHOR CUPS (.005)

1шт.

55

3043942R1

SHIM

TO ANCHOR CUPS (.010)

1шт.

56

3043939R1

CLAMP

CUP, OUTER BALL

1шт.

57

3048479R1

NUT, ON SPOOL, Serial Range: -B-414/23355

1шт.

58

3048480R1

WASHER, HARDENED, Serial Range: -B-414/23355

1шт.

59

3048485R2

SLEEVE, OPERATING, Serial Range: -B-414/23355

1шт.

60

3048481R1

COLLAR, Serial Range: -B-414/23355

1шт.

61

3048477R1

RING, RE-ACTION, Serial Range: -B-414/23355

1шт.

62

3048478R1

RING

O-RING, ON RE-ACTION RING, Serial Range: -B-414/23355

1шт.

63

3048482R1

WASHER, RE-ACTION, Serial Range: -B-414/23355

1шт.

64

3048484R1

RING

O-RING, ON SPOOL, Serial Range: -B-414/23355

1шт.

65

3048450R91

BODY

VALVE AND SPOOL ASSY, Serial Range: -B-414/23355

1шт.

66

3048261R1

PLUG AND PIN, RELIEF VALVE, Serial Range: -B-414/23355

1шт.

3064499R1

BOLT,Mild Steel

BANJO, Start Serial: B-414/23356

2шт.

3064500R1

BOLT

BANJO

2шт.

3045118R1

SEAL

WASHER, BANJO BOLT

4шт.

3043982R1

BOLT

BANJO, Serial Range: -B-414/23355

2шт.

3043983R1

BOLT, BANJO

2шт.

704743R91

SEALING WASHER

WASHER, BANJO BOLT

4шт.

Выбрано товаров: 82
