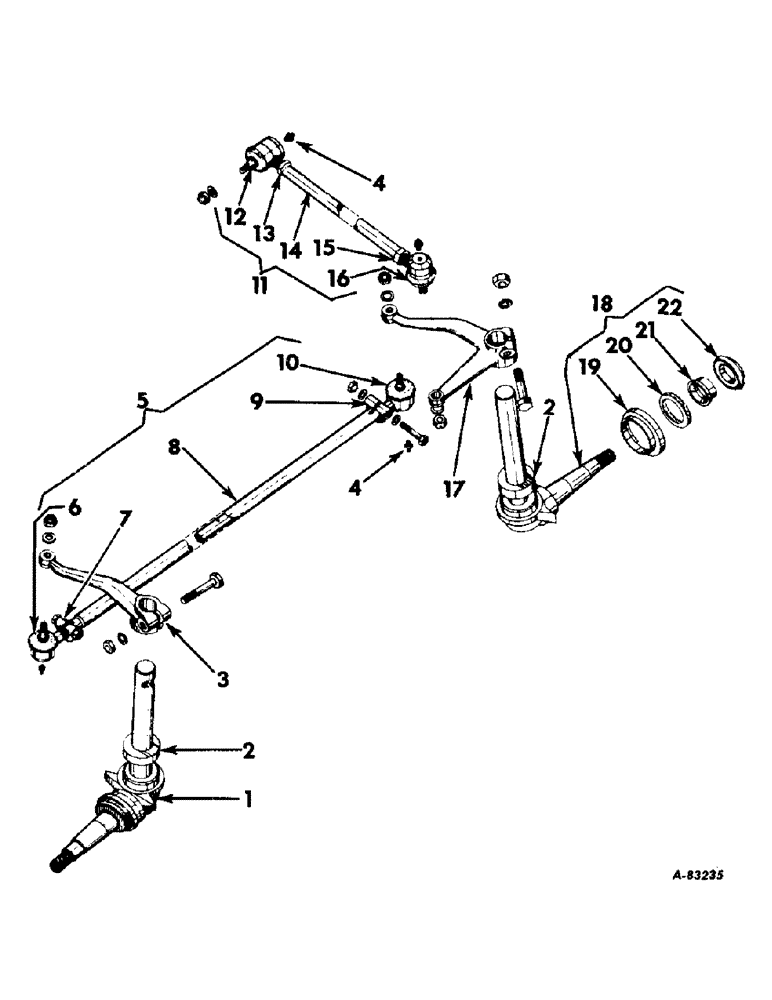

Запчасти Case IH B414 (100) - STEERING MECHANISM, STEERING KNUCKLES AND TIE ROD, FOR TRACTORS W/O POWER STEERING Steering Mechanism

1

3043865R92

STEERING KNUCKLE

KNUCKLE ASSY, RH STEERING (COMPOSED OF

1шт.

3043866R2

KNUCKLE (NSS)

1шт.

3040276R1

PIVOT (NSS)

1шт.

48539D

SEAL

1шт.

48541D

SHIELD

1шт.

50270D

SPACER

1шт.

50259D

WASHER

WASHER)

1шт.

1

3066603R91

KNUCKLE ASSY, RH STEERING (HI-CLEAR TRACTORS) (COMPOSED OF

1шт.

3043929R3

KNUCKLE (NSS)

1шт.

3066604R1

PIVOT (NSS)

1шт.

48539D

SEAL

1шт.

48541D

SHIELD

1шт.

50270D

SPACER

1шт.

50259D

WASHER

WASHER)

1шт.

2

3070055R91

SPLINED BUSHING

BEARING, STEERING KNUCKLE THRUST

2шт.

2

751947R91

BEARING

STEERING KNUCKLE THRUST (HI-CLEAR TRACTORS)

2шт.

3

3040273R1

STEERING LEVER

ARM, RH STEERING KNUCKLE

1шт.

102639

NUT,5/8"-11, G5

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 HEX-HD MACH

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 STR LUB

4шт.

5

708426R92

BAR

ROD ASSY, TIE (COMPOSED OF

1шт.

3041061R91

CLIP

1шт.

3041062R91

CLIP

1шт.

3040920R92

BALL JOINT

END

1шт.

3040919R92

BALL JOINT

END

1шт.

3041063R1

ROD

)

1шт.

5

3066605R91

ROD ASSY, TIE (HI-CLEAR TRACTORS) (COMPOSED OF

1шт.

3041061R91

CLIP

1шт.

3041062R91

CLIP

1шт.

3040920R92

BALL JOINT

END

1шт.

3040919R92

BALL JOINT

END

1шт.

3041063R1

ROD

)

1шт.

6

3040919R92

BALL JOINT

END ASSY W/EXTENSION, RH TIE ROD (COMPOSED OF

1шт.

3041067R1

BOOT

1шт.

3041066R1

CLIP

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

3042689R1

WASHER

)

1шт.

7

3041061R91

CLIP

ASSY, RH (COMPOSED OF

1шт.

3042284R1

BOLT

1шт.

3042282R1

NO LONGER SERVICED

CLIP

1шт.

3042285R1

NUT

1шт.

3042286R1

WASHER

1шт.

3042287R1

WASHER

)

2шт.

8

3041063R1

ROD

TIE

1шт.

9

3041062R91

CLIP

ASSY, LH (COMPOSED OF

1шт.

3042284R1

BOLT

1шт.

3042283R1

NO LONGER SERVICED

CLIP

1шт.

3042285R1

NUT

1шт.

3042286R1

WASHER

1шт.

3042287R1

WASHER

)

2шт.

10

3040920R92

BALL JOINT

END ASSY, LH TIE ROD (THREADED END) (COMPOSED OF

1шт.

3041067R1

BOOT

1шт.

3041066R1

CLIP

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

3042689R1

WASHER

)

1шт.

11

3043877R91

LINK ASSY, STEERING DRAG (COMPOSED OF

1шт.

3040921R92

KNEE JOINT

END

1шт.

3040922R92

BALL JOINT

END

1шт.

705247R1

NUT

1шт.

705248R1

NUT

1шт.

3041060R1

ROD

)

1шт.

12

3040921R92

KNEE JOINT

END ASSY, LH THREAD DRAG LINK (COMPOSED OF

1шт.

3041067R1

BOOT

1шт.

3041066R1

CLIP

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

3041065R1

WASHER

)

1шт.

13

705247R1

NUT

3/8-16 LOCK LH THREAD

1шт.

14

3041060R1

ROD

1шт.

15

705248R1

NUT

3/8-16 LOCK RH THREAD LOCK

1шт.

16

3040922R92

BALL JOINT

END ASSY, RH THREAD DRAG LINK (COMPOSED OF

1шт.

3041067R1

BOOT

BOLT

1шт.

3041066R1

CLIP

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

3041065R1

WASHER

)

1шт.

17

3040272R1

STEERING LEVER

ARM, LH STEERING KNUCKLE

1шт.

114745

WOODRUFF KEY,#21, 1/4" x 1 1/4", HT

(no. 810) #21, 1/4" x 1 1/4", HT

1шт.

102639

NUT,5/8"-11, G5

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 HEX-HD MACH

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

18

3043864R92

STEERING KNUCKLE

KNUCKLE ASSY, LH STEERING (COMPOSED OF

1шт.

3043866R2

KNUCKLE (NSS)

1шт.

3040276R1

PIVOT (NSS)

1шт.

48539D

SEAL

1шт.

48541D

SHIELD

1шт.

50270D

SPACER

1шт.

50259D

WASHER

WASHER)

1шт.

18

3066602R91

STEERING KNUCKLE

KNUCKLE ASSY, LH STEERING (HI-CLEAR TRACTORS) (COMPOSED OF

1шт.

3043929R3

KNUCKLE (NSS)

1шт.

3066604R1

PIVOT (NSS)

1шт.

48539D

SEAL

1шт.

48541D

SHIELD

1шт.

50270D

SPACER

1шт.

50259D

WASHER

WASHER)

1шт.

19

48541D

SHIELD

FRONT WHEEL DUST

2шт.

20

50259D

WASHER

WASHER, FRONT WHEEL FELT

2шт.

21

50270D

SPACER

FRONT WHEEL BEARING

2шт.

22

48539D

SEAL, FRONT WHEEL OIL

2шт.

114745

WOODRUFF KEY,#21, 1/4" x 1 1/4", HT

(no. 810) #21, 1/4" x 1 1/4", HT

1шт.
