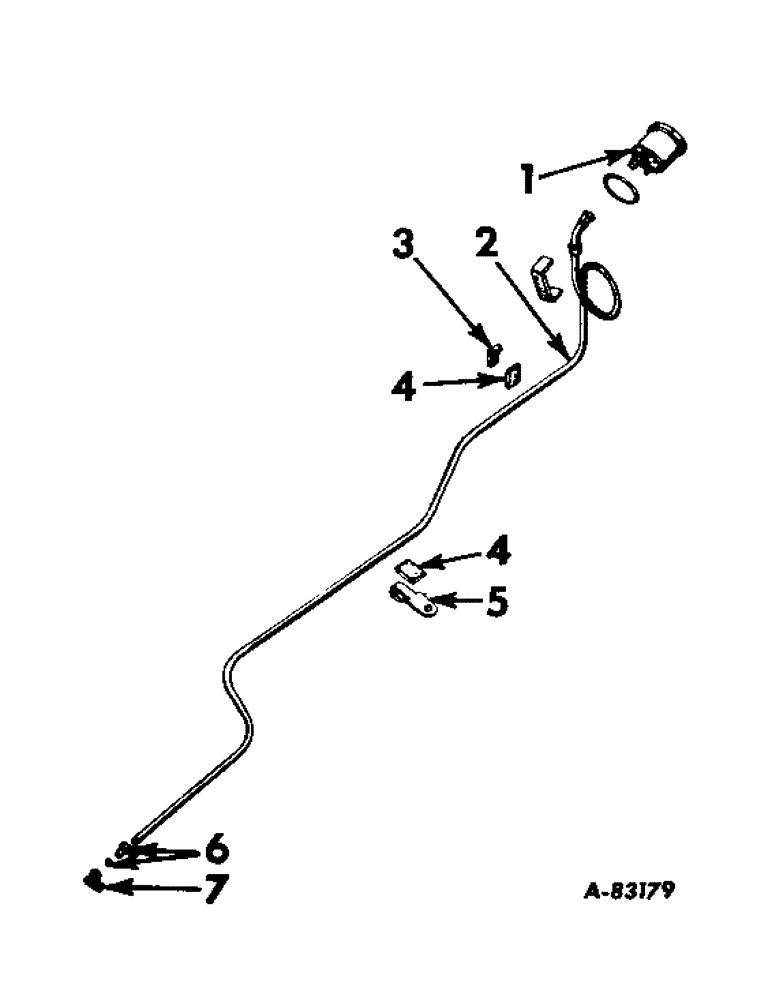

Запчасти Case IH B414 (057) - LUBRICATION SYSTEM, OIL PRESSURE GAUGE AND CONNECTIONS, DIESEL ENGINE TRACTORS Lubrication System

1

709166R91

ELECTRICAL GAUGE

GAUGE ASSY, OIL PRESSURE

1шт.

2

3040385R91

PIPE

W/NUT, 3041151R11, ENGINE TO PRESSURE GAUGE OIL

1шт.

3

60938D

CLIP, OIL PRESSURE PIPE REAR

1шт.

17408R1

BOLT, 3/8-16 x 5/8 HEX-HD MACH.

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

52728D

CUSHION, OIL PIPE

2шт.

5

708115R1

PLATE ASSY.

CLIP, OIL PRESSURE PIPE FRONT

1шт.

6

3041151R11

NUT

OIL PIPE COUPLING

1шт.

7

3040386R1

ELBOW

OIL PIPE TO ENGINE

1шт.
