Запчасти Case IH B414 (053) - GOVERNOR, FOOT OPERATED ACCELERATOR ATTACHMENT, DIESEL ENGINE TRACTORS Governor

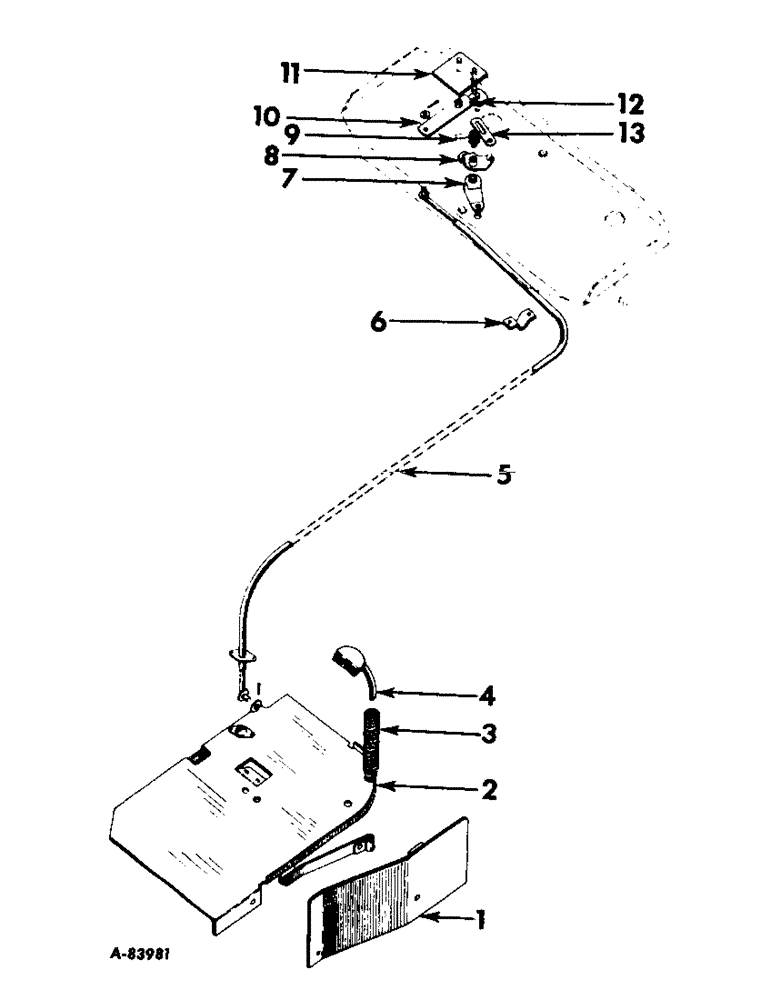

Схема запчастей Case IH B414 - (053) - GOVERNOR, FOOT OPERATED ACCELERATOR ATTACHMENT, DIESEL ENGINE TRACTORS Governor
11
2
7
4
5
10
3
6
1
13
12
8
9

Артикул

Название

Примечание

Количество

3045852R91

ATTACHMENT, FOOT OPERATED ACCELERATOR

1шт.

1

751666R11

PLATE ASSY, FOOT GUIDE

1шт.

102635

NUT,3/8"-16, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

3045294R93

FOOTPLATE ASSY

1шт.

3

709137R1

SPRING

FOOT CONTROL PEDAL

1шт.

4

3047530R91

PEDAL ASSY, FOOT CONTROL

1шт.

109084

NUT,1/4"-20, G5

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

3045301R92

CABLE

ASSY

1шт.

6

3045302R1

CLIP, CABLE

1шт.

225-10108

NUT,#8-32

Machine screw #8-32

2шт.

100869

BOLT,Hex, 5/16" - 24 x 2 3/4", Gr 8

SCREW, NO. 10-32 UNF SLT-F-HD

2шт.

451689

SHAKER SHOE

SCREW, 8-32 UNF HEX-HD MACH

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

7

709190R11

LEVER W/PIN 706204RU, BELLCRANK OPERATING

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 COT.

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 GA

1шт.

8

3042758R11

BELLCRANK ASSY, GOVERNOR CONTROL ROD

1шт.

9

3045308R1

SPRING, BELLCRANK RETURN

1шт.

10

3045299R11

LEVER ASSY, TWO-WAY CONTROL

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 COT.

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 GA

1шт.

16558R1

WASHER

17/64 x 5/8 x 16 GA

1шт.

11

3045298R91

BRACKET ASSY, TWO-WAY MECHANISM PIVOT

1шт.

12

709189R1

BOSS, GOVERNOR CONTROL ROD BELLCRANK

1шт.

13

709191R1

LINK

BELLCRANK CONNECTING

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

16558R1

WASHER

17/64 x 5/8 x 16 GA

1шт.

706204R1

PIN, GOVERNOR CONTROL ROD BALL

1шт.

3045297R95

TRAY ASSY, BATTERY

1шт.

3045777R91

ATTACHMENT, HIGH SPEED FOOT ACCELERATOR

1шт.

3045340R1

BRACKET, HAND CONTROL ADJUSTMENT SCREW

1шт.

3045342R2

BRACKET, FOOT CONTROL ADJUSTMENT SCREW

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

5/16-18 HEX. LOCK

2шт.

3045341R1

SCREW, HIGH SPEED ADJ

2шт.

Выбрано товаров: 38
