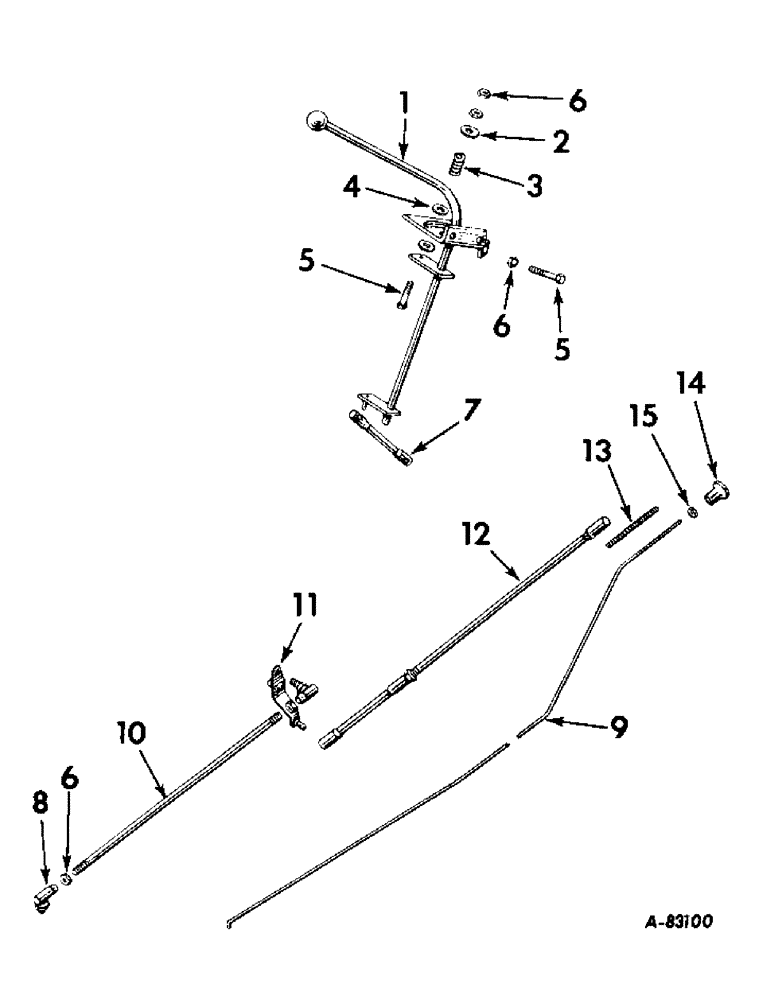

Запчасти Case IH B414 (051) - GOVERNOR, GOVERNOR CONTROLS, DIESEL ENGINE TRACTORS Governor

1

708432R93

LEVER

CONTROL ASSY, GOVERNOR

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x 16 GA

1шт.

2

3047325R1

WASHER

GOVERNOR CONTROL, Start Serial: B-414/20776

1шт.

3

3047323R1

SPRING

FRICTION GOVERNOR CONTROL

1шт.

4

704681R2

FRICTION WASHER

FRICTION GOVERNOR CONTROL

2шт.

5

NLS

NO LONGER SERVICED

SCREW, 1/4-28 x 1-1/2 SLT-FIL-HD MACH

2шт.

5

517194R1

PIN, 1/4 x 1-3/8 STD-HD, ORDER TWO NUTS 114492, SCREW 225506 AND WASHER 3047325R1, Serial Range: -B-414/20775

1шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

1шт.

6

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 HEX. JAM

5шт.

7

708431R92

ROD

ROS ASSY, CROSS SHAFT CONTROL

1шт.

8

3043081R91

CONNECTION

JOINT, BALL

2шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 HEX. JAM

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

3043911R1

ROD, FUEL SHUT-OFF CONTROL, Serial Range: -B-414/40440

1шт.

9

3066380R1

ROD, FUEL SHUT-OFF CONTROL, Start Serial: B-414/40441

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 COT.

2шт.

446160

WASHER,#10

7/32 x 7/16x 18 GA

2шт.

10

708647R1

ROD

BELL CRANK TO GOVERNOR CONTROL

1шт.

11

708327R21

CRANK

BELL CRANK ASSY, GOVERNOR CONTROL ROD

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x 16 ga) 3/8"

1шт.

12

706209R92

ROD

ASSY, CROSS SHAFT TO BELL CRANK

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

Control Jam, 1/4"-20, G5

2шт.

13

3043915R1

SPRING, FUEL SHUT-OFF RETURN CONTROL, Serial Range: -B-414/40440

1шт.

13

3066382R1

SPRING

FUEL SHUT-OFF RETURN CONTROL ROD, Start Serial: B-414/40441

1шт.

14

3066381R1

KNOB

FUEL SHUT-OFF CONTROL ROD

1шт.

15

706216R1

NUT

FUEL SHUT-OFF CONTROL ROD

1шт.
