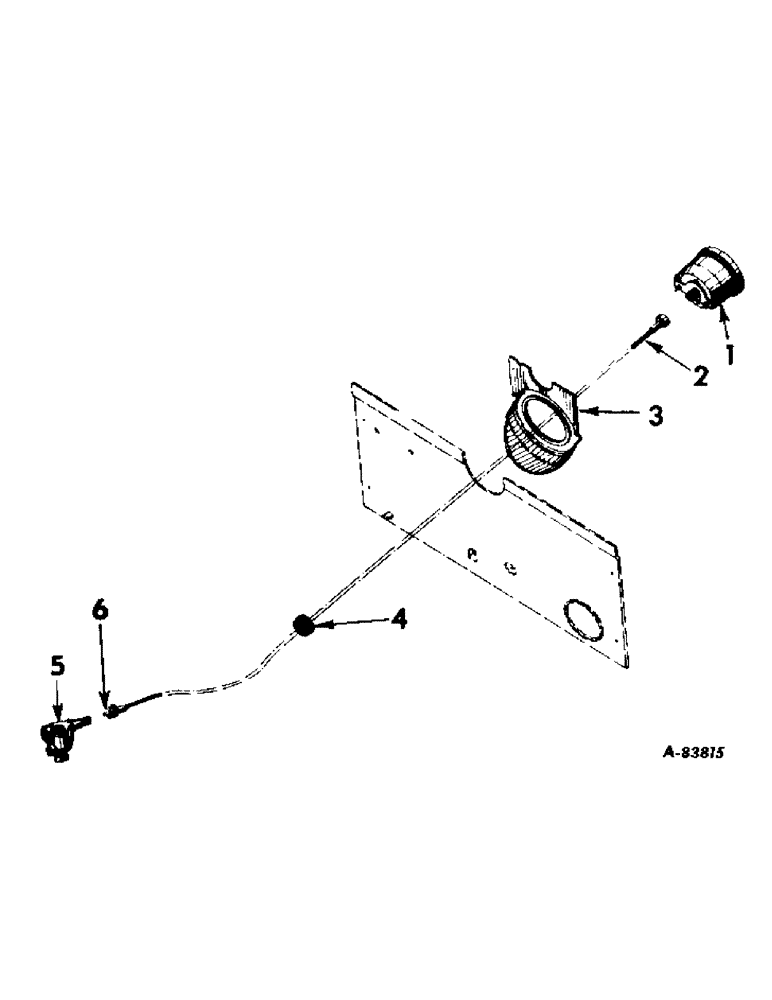

Запчасти Case IH B414 (153A) - ENGINE CONTROLS, INSTRUMENT & PANEL, TACHOMETER, DIESEL ENGINE TRACTORS Engine Controls

3045772R93

ATTACHMENT TACHOMETER

1шт.

1

3045066R92

METER

TACHOMETER ASSY

1шт.

2

3042473R91

SHAFT

ASSY, TACHOMETER DRIVE (36 IN.)

1шт.

3

3040857R91

BRACKET ASSY, TACHOMETER

1шт.

186509

CAPSCREW

SCREW, NO. 8 x 1/4 PAN-HD CR-REC TAP.

4шт.

4

3040862R1

WASHER

GROMMET, SHAFT TACHOMETER DRIVE

1шт.

5

3042474R91

ANGLE

BOX ASSY, GEAR

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

3048132R1

CABLE

CORE, TACHOMETER DRIVE SHAFT (37-1/4 IN.)

1шт.
