Запчасти Case IH B414 (143) - DRAWBARS AND HITCHES, THREE-POINT HITCH Drawbar & Hitches

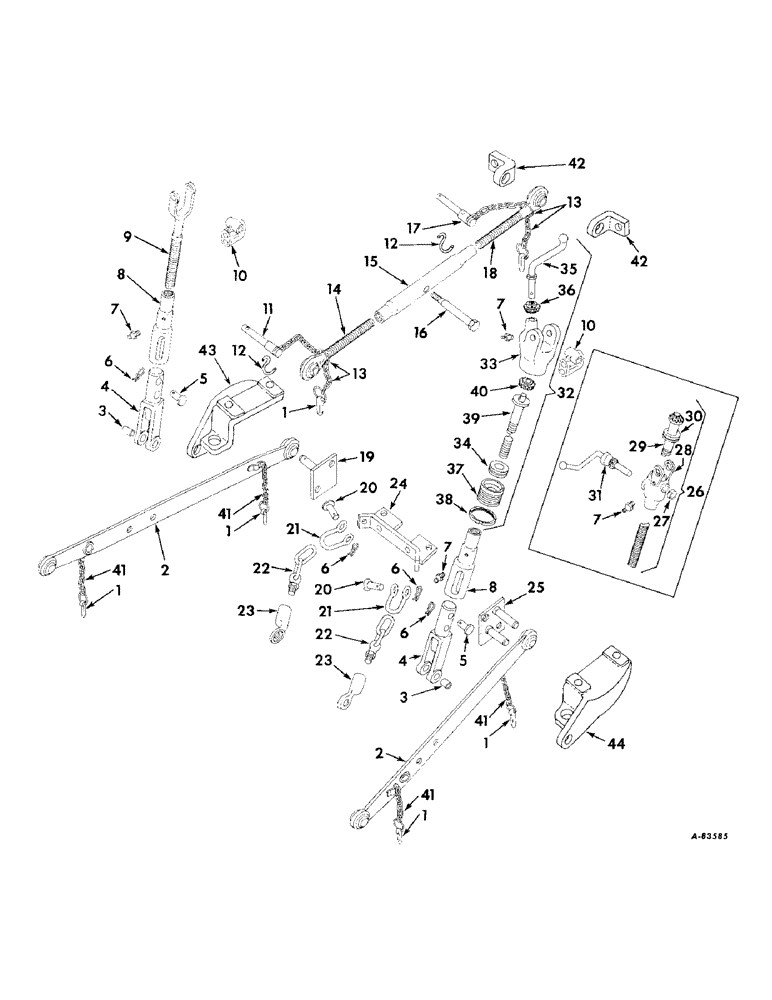

Схема запчастей Case IH B414 - (143) - DRAWBARS AND HITCHES, THREE-POINT HITCH Drawbar & Hitches
6
36
22
7
4
1
3
31
8
33
20
26
43
29
10
12
23
6
6
40
21
9
7
10
44
13
21
35
32
18
39
7
42
7
19
11
2
2
41
20
14
30
41
1
1
16
3
15
41
37
8
1
5
42
38
34
6
17
1
13
27
23
28
4
25
41
22
24
5
12

Артикул

Название

Примечание

Количество

3060811R91

ATTACHMENT, THREE-POINT HITCH (HI-CLEAR)

1шт.

3044336R92

ATTACHMENT, THREE-POINT HITCH

1шт.

1

517758R91

SPLIT PIN/SAFETY PIN

PIN ASSY, IMPLEMENT

6шт.

2

3044341R91

STRUT

LINK ASSY, W/TWO HOLDERS 707071R12 AND TWO COTTERS 372907R91, LOWER

2шт.

2

3060816R11

LINK ASSY, LH LOWER (HI-CLEAR) (COMPOSED OF

1шт.

3060818R91

CLEVIS LH

1шт.

3060823R91

CLEVIS RH

1шт.

517758R91

SPLIT PIN/SAFETY PIN

COTTER

2шт.

707071R12

HOLDER

2шт.

102639

NUT,5/8"-11, G5

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

3060817R91

LINK ASSY, RH LOWER (HI-CLEAR) (COMPOSED OF

1шт.

3060822R91

CLEVIS LH

1шт.

3060819R91

CLEVIS RH

1шт.

517758R91

SPLIT PIN/SAFETY PIN

COTTER

2шт.

707071R12

HOLDER

2шт.

102639

NUT,5/8"-11, G5

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

3044353R1

BUSHING

LIFT ROD

2шт.

3

704194R2

BUSHING

LIFT ROD (HI-CLEAR)

2шт.

4

3044352R1

FORK

LIFT ROD

2шт.

4

3048304R1

FORK, LIFT ROD (HI-CLEAR)

2шт.

PO15149

PIN, LIFT ROD FORK (HI-CLEAR)

2шт.

5

708884R1

AXLE PIN

PIN, 3/4 x 2-7/16 STD-HD

2шт.

575813R1

WASHER

25/32 x 1-1/4 x 11 GA

2шт.

6

520175R1

CLIP

PIN, QUICK ATTACHABLE COT.

4шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

3шт.

8

3045186R1

TUBE,1.5" ID, 1.906" OD, 7.8" Length

LIFT ROD TELESCOPING

2шт.

9

3044350R1

ROD

LH UPPER HALF LIFT

1шт.

10

704207R3

PIVOT

SWIVEL, LIFT ROD

2шт.

3044309R1

PIN

5/8 x 3-3/8 STD-HD HARDENED

1шт.

3069069R1

PIN

5/8 x 3 STD-HD

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

11

3060316R2

PIN

TOP LINK (CATEGORY I)

1шт.

12

704185R1

HOOK, TOP LINK PIN

2шт.

13

704184R93

CHAIN ASSY W/RING, TOP LINK RETAINING

2шт.

14

704178R21

BOLT

EYEBOLT ASSY W/BALL, TOP LINK (CATEGORY I)

1шт.

426899

NUT,Jam, 1"-8, G5

1-8 C-Z HEX. JAM

1шт.

15

3044340R1

BUCKLE

TURNBUCKLE, TOP LINK

1шт.

15

3060813R1

TURNBUCKLE, TOP LINK (HI-CLEAR)

1шт.

16

19952R1

BOLT,Hex, 1/2" - 13 x 7", Gr 5

1/2-13 x 7 C-Z HEX-HD MACH

1шт.

3069861R1

NUT

1/2-13 SELF-SEALING

1шт.

17

704182R1

PIN

TOP LINK (CATEGORY II)

1шт.

17

704183R1

PIN

TOP LINK (CATEGORY I)

1шт.

18

704177R21

BOLT

EYEBOLT ASSY W/BALL, TOP LINK (CATEGORY II)

1шт.

19

3048869R91

PLATE

ASSY, LH HITCH

1шт.

19

3060815R91

PLATE ASSY, LH HITCH (HI-CLEAR)

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-3/8 HEX-HD CAP

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

20

6642

PIN

5/8 x 2-1/4 STD-HD

2шт.

720631R1

LINCH PIN

PIN, QUICK ATTACHABLE COT.

2шт.

21

3044357R1

STIRRUP

SHACKLE, CHECK CHAIN

2шт.

22

3061991R91

CHAIN (AG)

CHAIN ASSY W/BOLT, CHECK (NOTE C)

2шт.

22

3048454R91

X

CHAIN ASSY, CHECK (HI-CLEAR)

2шт.

218443

NUT

3/4-10 HEX. JAM

2шт.

23

3063457R1

ANCHOR

CHECK CHAIN (NOTE B)

2шт.

3063311R2

BOLT

CHECK CHAIN ANCHOR

2шт.

3069861R1

NUT

1/2-13 LOCK

2шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 GA

2шт.

24

3044329R92

BRACKET ASSY, CHECK CHAIN

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25

3048870R91

PLATE

ASSY, RH HITCH

1шт.

25

3060814R91

PLATE ASSY, RH HITCH (HI-CLEAR)

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-3/8 HEX-HD CAP

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

26

3044344R91

ROD

ASSY, RH LEVELING LIFT

1шт.

27

704203R1

COLLAR

LEVELING CONTROL CRANK

1шт.

142507

GROOVED PIN

Pin, Grooved, 3/16" x 7/8", Type A

1шт.

28

3044345R1

HOUSING

LIFT ROD

1шт.

172580

PLUG,Exp, 1 7/8"

1-7/8 EXPANSION

1шт.

29

3044349R1

ROD

LEVELING

1шт.

30

3044346R91

BALL BEARING

BEARING, LEVELING ROD BALL

1шт.

31

704200R32

CRANK

ASSY, LEVELING CONTROL

1шт.

32

3069056R91

ROD

ASSY, RH LEVELING LIFT USED WITH TWO PINION LEVELING ROD

1шт.

33

3069057R1

BOX

LEVELING GEAR USED WITH TWO PINION LEVELING ROD

1шт.

34

3044346R91

BALL BEARING

BEARING, LEVELING ROD BALL USED WITH TWO PINION LEVELING ROD

1шт.

35

3069062R11

CRANK

ASSY, LEVELING USED WITH TWO PINION LEVELING ROD

1шт.

36

3069063R1

GEAR

PINION, LEVELING CRANK USED WITH TWO PINION LEVELING ROD

1шт.

435-1612

GROOVED PIN,3/16" x 3/4", Type A

Pin, Grooved, 3/16" x 3/4", Type A

1шт.

37

3069064R1

BEARING

LEVELING ROD USED WITH TWO PINION LEVELING ROD

1шт.

38

3069065R1

LOCK NUT

LEVELING ROD BEARING LOCK USED WITH TWO PINION LEVELING ROD

1шт.

39

3069066R1

ROD

LEVELING USED WITH TWO PINION LEVELING ROD

1шт.

40

3061067R1

PINION

LEVELING ROD USED WITH TWO PINION LEVELING ROD

1шт.

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY, WOODRUFF (1/8 x 5/8)

1шт.

41

707071R12

HOLDER W/CHAIN, LYNCH PIN

4шт.

42

704779R3

BRACKET

CHECK CHAIN INNER (HI CLEAR)

2шт.

43

3060826R1

BRACKET, LH CHECK CHAIN (HI CLEAR)

1шт.

44

3060827R1

BRACKET, RH CHECK CHAIN (HI CLEAR)

1шт.

3060315R91

LINK ASSEMBLY, TOP (COMPOSED OF

1шт.

19952R1

BOLT,Hex, 1/2" - 13 x 7", Gr 5

1шт.

704184R93

CHAIN

1шт.

700531R1

NO LONGER SERVICED

COTTER

1шт.

704177R21

BOLT

EYEBOLT

1шт.

704178R21

BOLT

EYEBOLT

1шт.

704185R1

HOOK

2шт.

3069861R1

NUT

1шт.

426899

NUT,Jam, 1"-8, G5

JAM

1шт.

704182R1

PIN

1шт.

3060316R2

PIN

1шт.

704187R1

LOCKING RING

RING

1шт.

3044340R1

BUCKLE

TURNBUCKLE)

1шт.

3060812R91

LINK ASSEMBLY, TOP (HI-CLEAR) (COMPOSED OF

1шт.

19952R1

BOLT,Hex, 1/2" - 13 x 7", Gr 5

1шт.

704184R93

CHAIN

2шт.

70053R1

COTTER

1шт.

704177R21

BOLT

EYEBOLT

1шт.

704178R21

BOLT

EYEBOLT

1шт.

704185R1

HOOK

2шт.

3069861R1

NUT

1шт.

426899

NUT,Jam, 1"-8, G5

JAM

1шт.

704182R1

PIN

1шт.

704183R1

PIN

1шт.

704187R1

LOCKING RING

RING

1шт.

3060813R1

TURNBUCKLE)

1шт.

Выбрано товаров: 117
