Запчасти Case IH B414 (141A) - DRAWBARS AND HITCHES, THREE POINT LINKAGE DRAWBAR ATTACHMENT Drawbar & Hitches

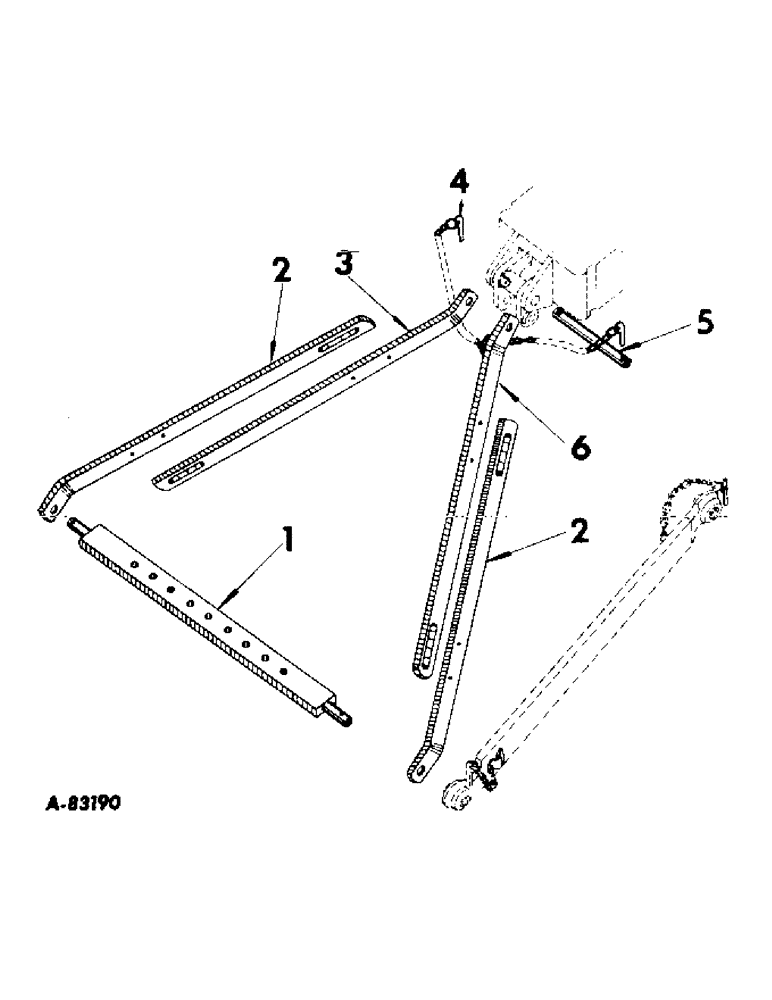

Схема запчастей Case IH B414 - (141A) - DRAWBARS AND HITCHES, THREE POINT LINKAGE DRAWBAR ATTACHMENT Drawbar & Hitches
5
4
2
3
1
6
2

Артикул

Название

Примечание

Количество

3049064R91

ATTACHMENT, THREE POINT LINKAGE DRAWBAR (TRACTORS WITH HYDRAULIC LIFT ATTACHMENT)

1шт.

1

751764R1

BAR

DRAWBAR

1шт.

2

751765R1

STRUT

LOWER HALF

2шт.

102637

NUT,1/2"-13, G5

4шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, 1/2-13 x 1-3/8 HEX-HD CAP

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x 11 GA

4шт.

3

751766R11

STRUT ASSY, UPPER LH HALF

1шт.

4

380545R91

PIN

ASSY, LOWER DRAWBAR LINK

1шт.

5

3049067R1

SHAFT

PIN, TOP LINK (NOT INCLUDED IN DRAWBAR ATTACHMENT)

1шт.

6

3049066R91

STRUT ASSY, UPPER RH HALF

1шт.

102637

NUT,1/2"-13, G5

2шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

Выбрано товаров: 14
