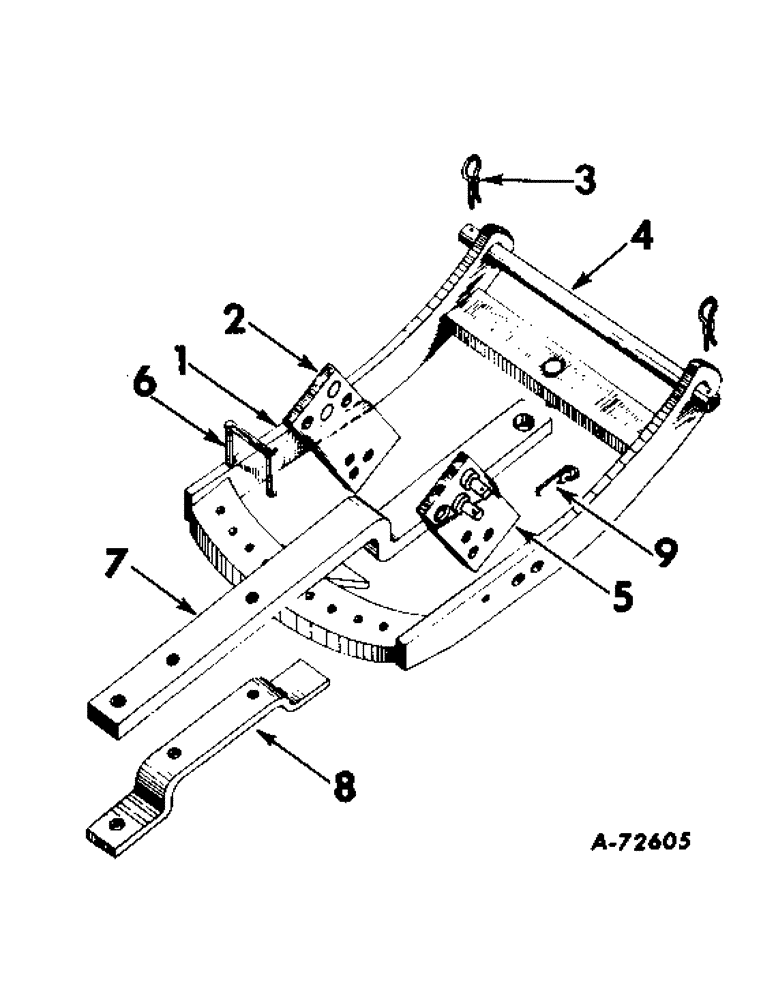

Запчасти Case IH B414 (141) - DRAWBARS AND HITCHES, SWINGING DRAWBAR Drawbar & Hitches

3048871R91

ATTACHMENT, SWINGING DRAWBAR

1шт.

3061001R91

ATTACHMENT, SWINGING DRAWBAR, HI-CLEAR

1шт.

1

3043143R93

FRAME ASSY, DRAWBAR (HI-CLEAR)

1шт.

1

704022R94

FRAME ASSY, DRAWBAR

1шт.

220081

NUT

3/4-10 HEX.

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 HEX-HD CAP

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

2

704051R12

PLATE

ASSY, LH DRAWBAR SUPPORT (HI-CLEAR)

1шт.

2

3048869R91

PLATE

ASSY, LH DRAWBAR SUPPORT

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-3/8 HEX-HD CAP

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

3

3067210R1

CLIP

SPRING

2шт.

4

704058R1

PIN

DRAWBAR FRAME

1шт.

5

704052R12

PLATE

ASSY, RH DRAWBAR SUPPORT (HI-CLEAR)

1шт.

5

3048870R91

PLATE

ASSY, RH DRAWBAR SUPPORT

1шт.

271606

BOLT,Hex, 3/4" - 10 x 1 3/8", Gr 5

SCREW, 3/4-10 x 1-3/8 HEX-HD CAP

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

6

704061R6

AXLE PIN

PIN, SWINGING DRAWBAR STOP

1шт.

720631R1

LINCH PIN

PIN, COT.

1шт.

7

704059R3

BAR

DRAWBAR, SWINGING

1шт.

102639

NUT,5/8"-11, G5

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 2-1/2 HEX-HD CAP

2шт.

8

704060R3

CLEVIS

DRAWBAR

1шт.

9

380545R91

PIN

ASSY, IMPLEMENT

1шт.
