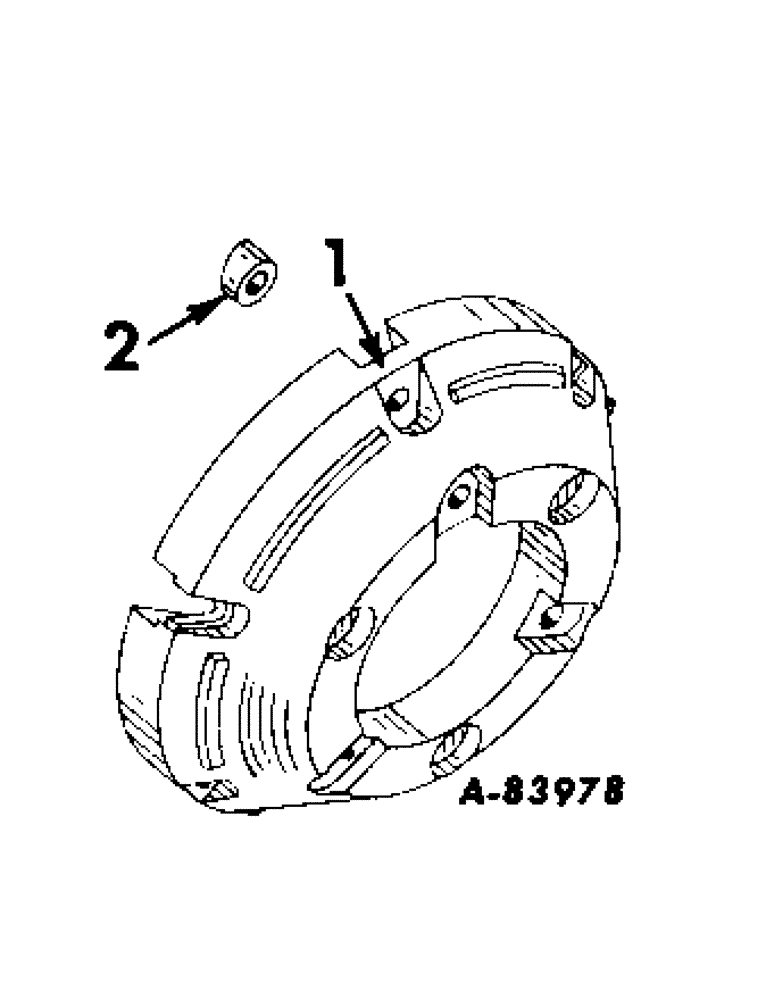

Запчасти Case IH B414 (117) - WHEELS, REAR WHEEL WEIGHTS, ONE PIECE (11) - WHEELS

376510R91

WEIGHT, REAR WHEEL (FOR FIRST, SECOND OR THIRD POSITION) (NOT HI CLEAR)

1шт.

1

376511R1

WEIGHT, REAR WHEEL, APPROX 135 LBS (2 FOR FIRST POSITION) (NOT HI CLEAR)

1шт.

13380R1

BOLT, 5/8-11 x 2-1/2 SQ-HD MACH (FOR MOUNTING ON CONVEX SIDE OF WHEEL HAVING 10-3/4 IN. DIA. BOLT CIRCLE)

6шт.

13454R1

BOLT, 5/8-11 x 3-1/2 SQ-HD MACH (FOR MOUNTING ON CONVEX SIDE OF WHEEL HAVING 19 IN. DIA. BOLT CIRCLE OR ON CONCAVE SIDE OF WHEEL HAVING EITHER 10-3/4 IN. OR 19 IN. BOLT CIRCLE)

6шт.

102639

NUT,5/8"-11, G5

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

446238

BANJO BOLT

.062 x 1.37 x .109 GA

6шт.

1

376511R1

WEIGHT, REAR WHEEL, APPROX 135 LBS (2 FOR SECOND OR THIRD POSITION) (NOT HI CLEAR)

1шт.

13454R1

BOLT, 5/8-11 x 3-1/2 SQ-HD MACH

6шт.

102639

NUT,5/8"-11, G5

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

1

708795R1

WEIGHT, REAR WHEEL, APPROX 145 LBS (2 FOR FIRST, SECOND OR THIRD POSITIONS) (FOR HI CLEAR)

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 x 3-1/4 HEX-HD (USED ON FIRST POSITION), Course Threads

10шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

(Used on second position) Hex, 5/8"-11 x 5 1/2", G5

10шт.

17956R1

BOLT,Hex, 5/8" - 11 x 7 3/4"

5/8-11 x 7-3/4 HEX-HD MACH (USED ON THIRD POSITION)

10шт.

102639

NUT,5/8"-11, G5

10шт.

2

376509R1

WASHER, WEIGHT MOUNTING (6 FOR FIRST, SECOND OR THIRD POSITION) (NOT HI CLEAR)

1шт.
