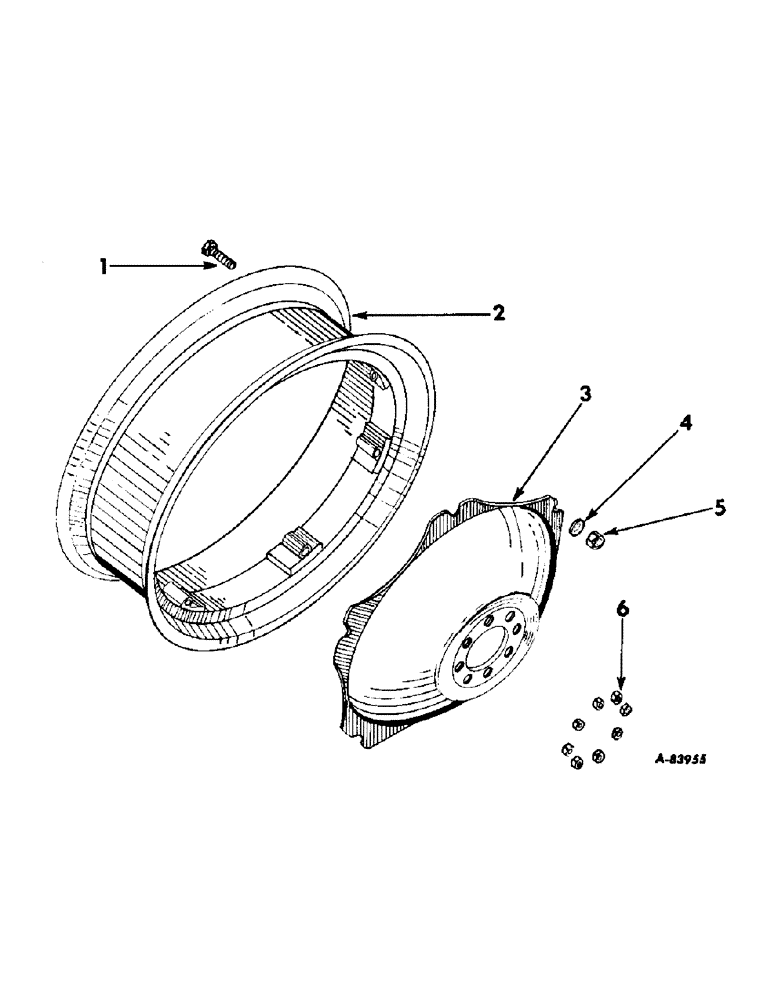

Запчасти Case IH B414 (116) - WHEELS, REAR WHEEL (11) - WHEELS

1

703929R1

BOLT,5/8" - 18 x 2 7/8"

REAR WHEEL RIM

12шт.

1

751839R1

BOLT, REAR WHEEL RIM (HI CLEAR)

16шт.

2

703928R91

NO LONGER SERVICED

RIM ASSY, REAR WHEEL (W9 x 28)

2шт.

2

3041077R91

RIM ASSY, REAR WHEEL, DW-11-38 (HI CLEAR)

2шт.

2

707703R91

NO LONGER SERVICED

RIM ASSY, REAR WHEEL (W11 x 28)

2шт.

2

3061823R1

RIM ASSY, REAR WHEEL (W12 x 24)

2шт.

2

3068209R91

RIM

ASSY, REAR WHEEL (W12 x 28)

2шт.

2

3068210R91

RIM

ASSY, REAR WHEEL (W13 x 28)

2шт.

3

703927R1

NO LONGER SERVICED

DISC, REAR WHEEL

2шт.

3

3041078R1

DISC, REAR WHEEL (HI CLEAR)

2шт.

3

3061824R1

DISC

REAR WHEEL, W12 x 24 (AGRICULTURAL)

2шт.

4

703931R1

WASHER

REAR WHEEL RIM BOLT

12шт.

4

751841R1

WASHER

LOCK (HI CLEAR)

16шт.

5

703930R1

NUT

REAR WHEEL RIM BOLT

12шт.

5

751840R1

NUT

REAR WHEEL RIM BOLT (HI CLEAR)

16шт.

6

703925R1

NUT

REAR WHEEL DISC

16шт.
