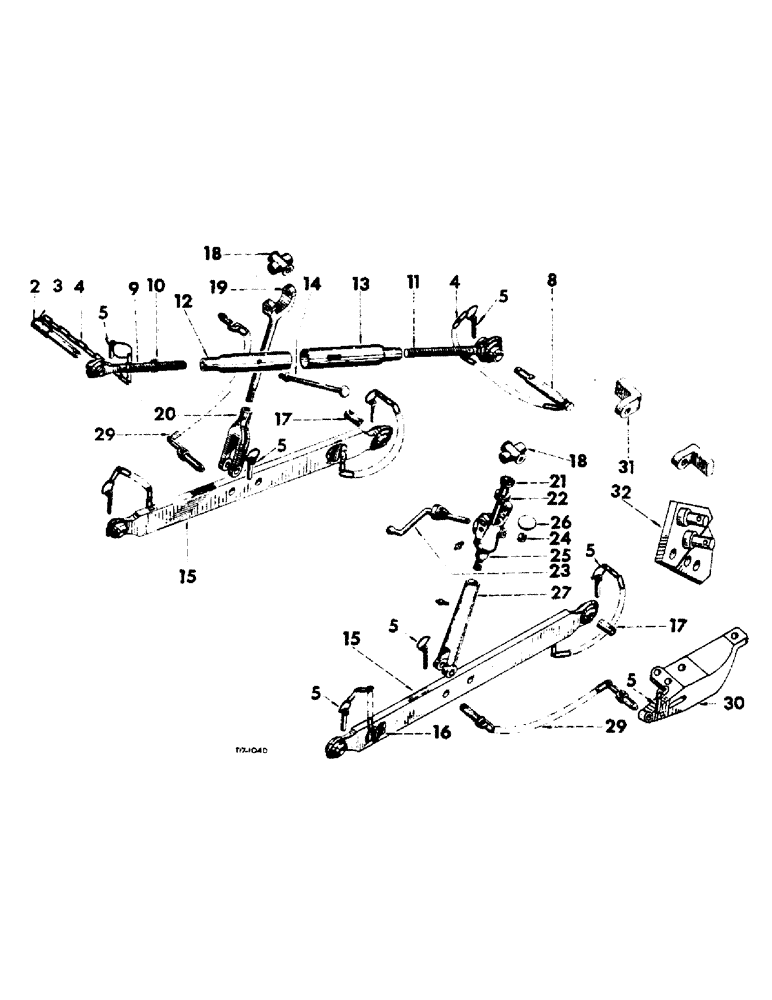

Запчасти Case IH B275 (117) - ATTACHMENTS, THREE POINT LINKAGE ATTACHMENT Attachments

707820R91

THREE POINT LINKAGE, attachment (Low hitch point) (706137R92)

1шт.

2

704183R1

PIN

top link, (Cat. 1)

1шт.

3

704185R1

HOOK, top link pin

2шт.

4

704184R93

CHAIN, retaining, top link pin, assy., w/plate

2шт.

5

704212R91

COTTER PIN

COTTER, implement, assy.

10шт.

5

372907R91

LINCH PIN

COTTER, implement

10шт.

8

704182R1

PIN

top link, (Cat. 2)

1шт.

9

704178R21

BOLT

EYEBOLT, top link, assy., (Cat. 1) w/ball

1шт.

10

218445

NUT,Jam, 1"-8, G5

jam, 1"

1шт.

11

704177R21

BOLT

EYEBOLT, top link, assy., (Cat. 2) w/ball

1шт.

12

704180R1

LINK

top, telescoping, (Half) (Cat. 1 end)

1шт.

13

704179R1

LINK

top, telescoping, (Half) (Cat. 2 end)

1шт.

14

17926R1

BOLT

hex. hd., 1/2" x 7"

1шт.

704181R1

NUT

pinnacle, 1/2", or

1шт.

3040353R1

NUT

pinnacle, 1/2"

1шт.

15

704188R95

NO LONGER SERVICED

LINK, lower, assy., w/two holders 707071R12 and two cotters 704212R91

2шт.

16

707071R12

HOLDER, linch pin, cpte., w/chain

4шт.

17

704194R2

BUSHING

BUSH, lower link

2шт.

18

704207R1

NO LONGER SERVICED

SWIVEL, lift rod

2шт.

19

704541R2

ROD

lift, upper half

1шт.

PO25465

PIN, head, std., 5/8" x 3-3/8"

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

20

704542R4

ROD

lift, lower half

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

LUBRICATOR, lift rod

1шт.

21

704198R1

ROD

levelling

1шт.

22

704197R91

BALL BEARING

BEARING, ball, thrust, 20 MM, or

1шт.

22

704201R91

BALL BEARING

BEARING, ball, thrust, 20 MM, or

1шт.

22

704202R91

BALL BEARING

BEARING, ball, thrust, 20 MM

1шт.

23

704200R32

CRANK

levelling, control

1шт.

24

704203R1

COLLAR

levelling control crank

1шт.

NLS

NO LONGER SERVICED

Pin, Grooved, 3/16" x 7/8", Type A

1шт.

25

704195R3

NO LONGER SERVICED

BOX, levelling

1шт.

26

172578

PLUG,Exp, 1 3/4"

expansion, 1-3/4" O.D.

1шт.

27

704205R2

NUT

levelling rod

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

LUBRICATOR, 7/16"

1шт.

28

704196R93

ROD, lift, levelling, cpte., Comprising

1шт.

704197R91

BALL BEARING

BEARING

1шт.

704195R2

NO LONGER SERVICED

BOX

1шт.

704200R31

NO LONGER SERVICED

COLLAR

1шт.

704203R1

COLLAR

LUBRICATOR

2шт.

704205R2

NUT

1шт.

443147

PIN

1шт.

172578

PLUG,Exp, 1 3/4"

1шт.

704198R1

ROD

1шт.

29

704208R93

CHAIN (AG)

CHAIN, check, assy.

2шт.

30

704214R2

BRACKET

check chain, R.H. (Illustrated)

1шт.

704213R2

BRACKET, check chain, L.H.

1шт.

17956R1

BOLT,Hex, 5/8" - 11 x 7 3/4"

machine, hex. hd., 7-3/4 x 5/8"

4шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

31

704779R3

BRACKET

check chain, inner

2шт.

17439R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2

hex. hd., 1/2" x 1-1/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

32

704052R12

PLATE

support, drawbar, cpte., R.H. (Illustrated)

1шт.

704051R12

PLATE

support, drawbar, cpte., L.H.

1шт.

704190R51

END

lower link, cpte. (Cat. 1 end)

1шт.

704191R51

END

lower link, cpte. (Cat. 2 end)

1шт.
