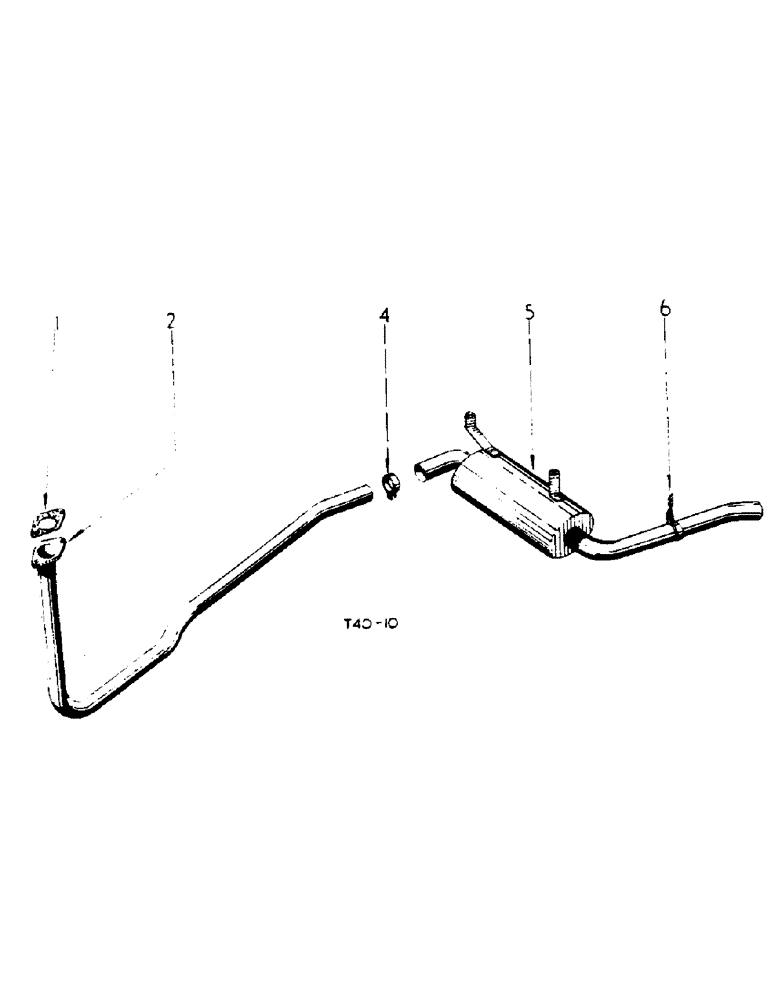

Запчасти Case IH B275 (096) - CHASSIS, DOWN SWEPT EXHAUST PIPE (12) - CHASSIS

1

704613R1

GASKET

exhaust pipe flange

1шт.

2

708329R21

PIPE

exhaust, manifold to silencer, cpte., B-275/17162 up

1шт.

2

704618R31

PIPE

exhaust, manifold to silencer, cpte., Serial Range: Up-B-275/17161

1шт.

280136

NUT,3/8"-16, G8

Exhaust pipe flange 3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

704621R1

CLAMP

exhaust pipe

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex hd, 3/8"-16 x 1-1/4"

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

704620R92

MUFFLER

SILENCER, exhaust, cpte.

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

6

705449R1

CLAMP

silencer pipe support

1шт.
