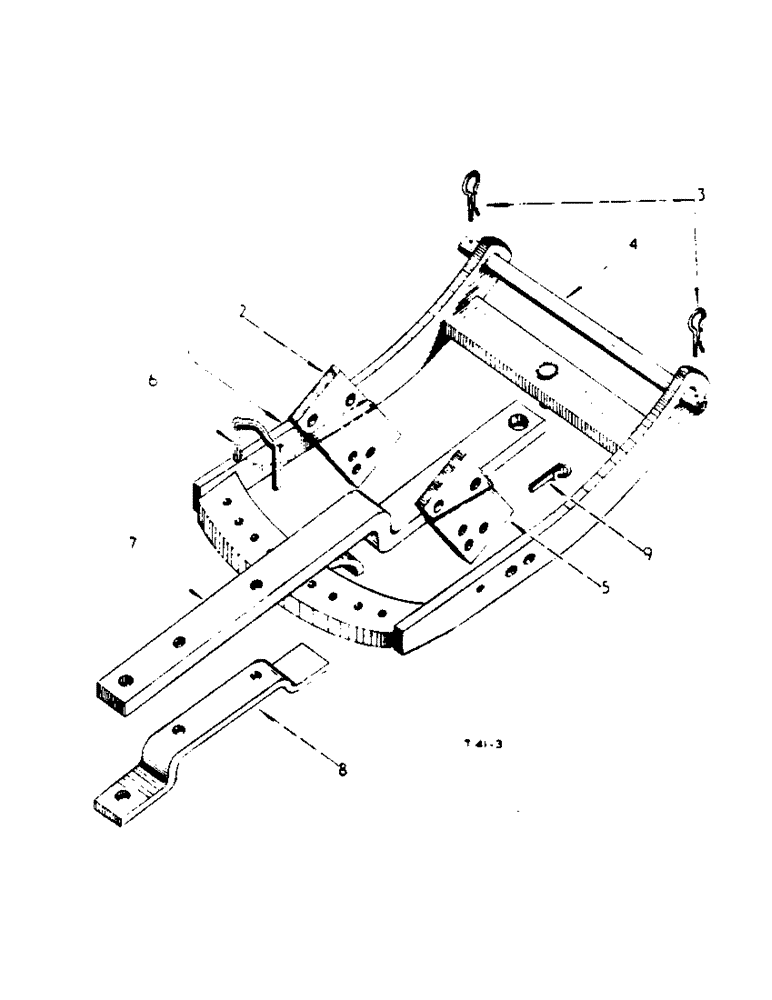

Запчасти Case IH B275 (095) - CHASSIS, DRAWBAR (12) - CHASSIS

1

704022R91

FRAME, drawbar, cpte.

1шт.

179952

BOLT, hex. hd., 3/4" x 2"

2шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

2

751187R1

PLATE, support, drawbar, L.H.

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

hex. hd., 3/4" x 1-3/8"

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

3

700387R1

CLIP, SPRING

2шт.

4

704058R1

PIN

drawbar frame

1шт.

5

751188R1

PLATE, support, drawbar, R.H.

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

hex. hd., 3/4" x 1-3/8"

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

6

704061R4

SPARE PART

PIN, stop, swinging drawbar

1шт.

520175R1

CLIP

PIN, cotter

1шт.

7

704059R1

NO LONGER SERVICED

DRAWBAR, swinging

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

hex. hd., 5/8" x 2-1/2"

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

704060R1

NO LONGER SERVICED

CLEVIS, drawbar

1шт.

9

372907R91

LINCH PIN

COTTER, implement, cpte., or

1шт.

9

704212R91

COTTER PIN

COTTER, implement, cpte.

1шт.
