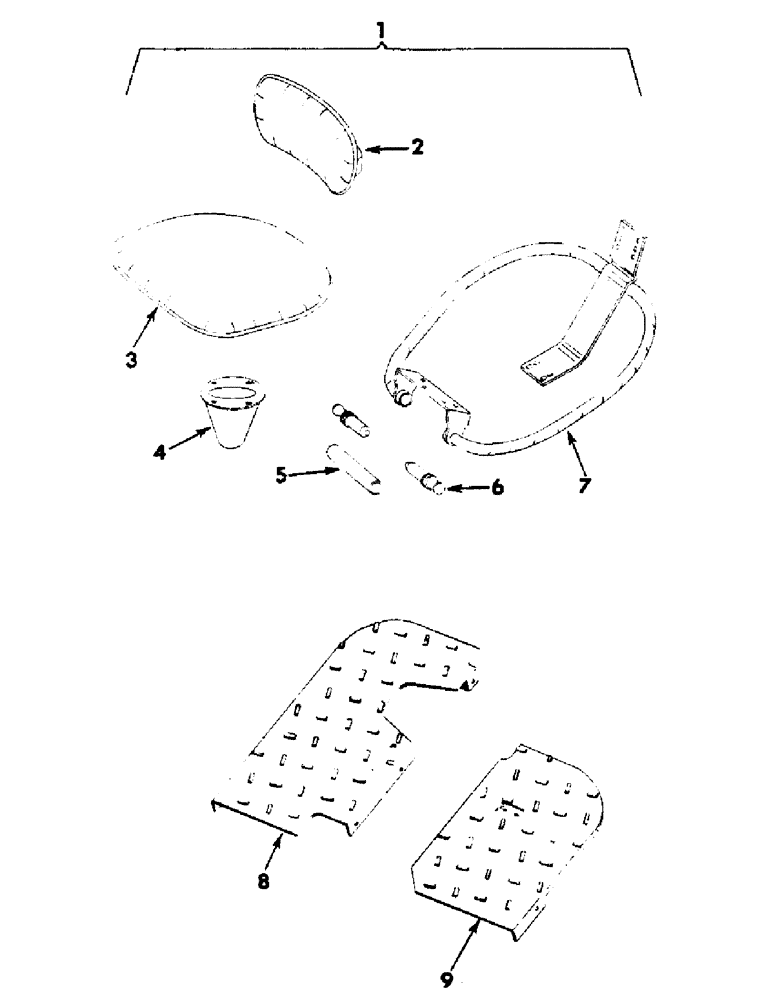

Запчасти Case IH B275 (093) - CHASSIS, SEAT AND FOOTPLATES (12) - CHASSIS

1

751730R92

SEAT

de-luxe, cpte.

1шт.

2

3040988R92

BACK

REST, assembly, seat

1шт.

2

3040988R92

BACK

REST, assembly, seat

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Seat Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

114605

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, , Seat Ext Tooth, 5/16"

2шт.

3

3040992R91

SEAT, assembly

1шт.

4

3040994R1

BUMPER

BUFFER, seat

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

Seat Hex, 1/4"-20 x 3/8", G5, Full Thd

4шт.

114604

LOCK WASHER,Ext Tooth, 1/4"

WASHER, lock, external-tooth 1/4", seat

4шт.

5

3040993R1

TUBE, spacer, seat

1шт.

6

3040984R1

PIN

locator, seat

2шт.

7

3040991R91

FRAMEWORK, assembly, seat

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Seat Hex, 1/4"-20 x 1/2", G5, Full Thd

8шт.

114604

LOCK WASHER,Ext Tooth, 1/4"

WASHER, lock, external-tooth, 1/4", seat

8шт.

8

707296R21

PLATE

FOOTPLATE, cpte., L.H.

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Footplate Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

machine, hex. hd., 3/8" x 3/4", footplate

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Footplate Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Footplate 3/8"

4шт.

102635

NUT,3/8"-16, G5

Footplate 3/8"-16, G5

1шт.

9

707297R41

FOOTPLATE, cpte., R.H.

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Footplate Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

machine, hex. hd., 3/8" x 3/4", footplate

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Footplate Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

102635

NUT,3/8"-16, G5

Footplate 3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Footplate 3/8"

3шт.
