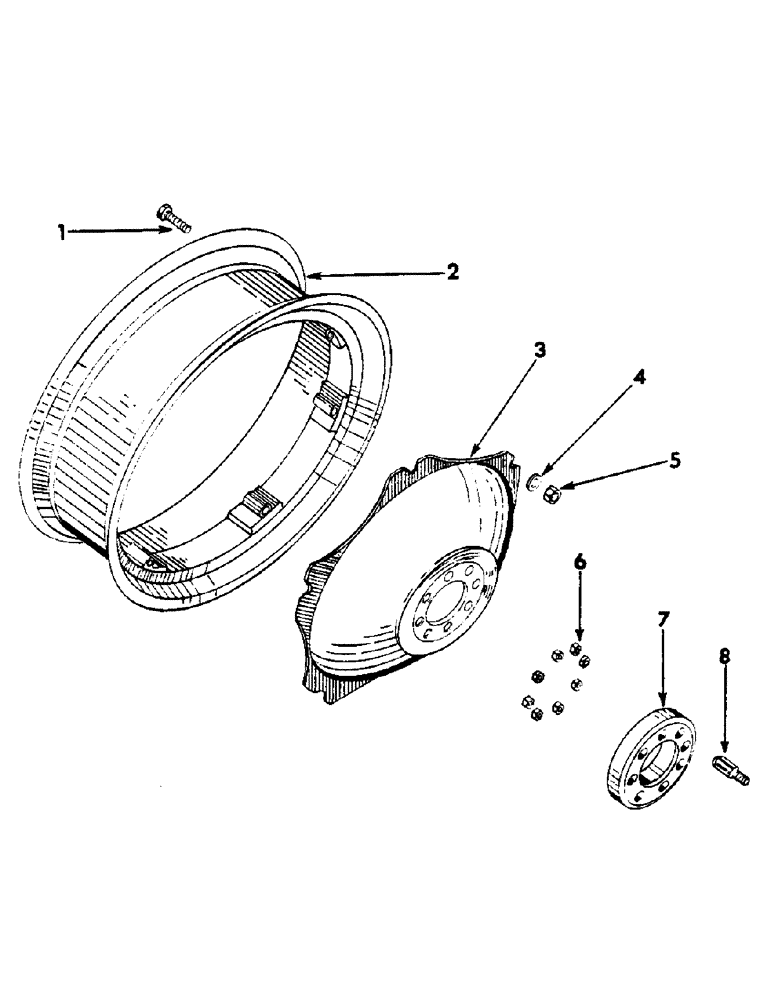

Запчасти Case IH B275 (092) - CHASSIS, REAR WHEEL (12) - CHASSIS

(A) Service parts for tractors equipped with single rear wheels

1шт.

(B) Service parts for tractors equipped with dual rear wheels

1шт.

1

703929R1

BOLT,5/8" - 18 x 2 7/8"

rear wheel rim (A)

12шт.

1

703929R1

BOLT,5/8" - 18 x 2 7/8"

rear wheel rim (B)

24шт.

2

703928R91

NO LONGER SERVICED

RIM, rear wheel, cpte. (W9 x 28) (A)

2шт.

2

703928R91

NO LONGER SERVICED

RIM, rear wheel, cpte. (W9 x 28) (B)

4шт.

2

707703R91

NO LONGER SERVICED

RIM, rear wheel, cpte. (W11 x 28) (A)

2шт.

3

703927R1

NO LONGER SERVICED

DISC, rear wheel, Up to B-275/20222, (A)

2шт.

3

703927R1

NO LONGER SERVICED

DISC, rear wheel, Up to B-275/20222, (B)

4шт.

3

3042290R1

DISC

rear wheel, B-275/20223 up, (A)

2шт.

3

3042290R1

DISC

rear wheel, B-275/20223 up, (B)

4шт.

4

703931R1

WASHER

rear wheel rim bolt (A)

12шт.

4

703931R1

WASHER

rear wheel rim bolt (B)

24шт.

5

703930R1

NUT

rear wheel rim bolt (A)

12шт.

5

708930R1

GASKET

NUT, rear wheel rim bolt (B)

24шт.

6

703925R1

NUT

rear wheel disc

16шт.

7

707707R1

SPACER, wheel (B)

2шт.

8

707706R1

NUT

special, wheel spacer (B)

16шт.
