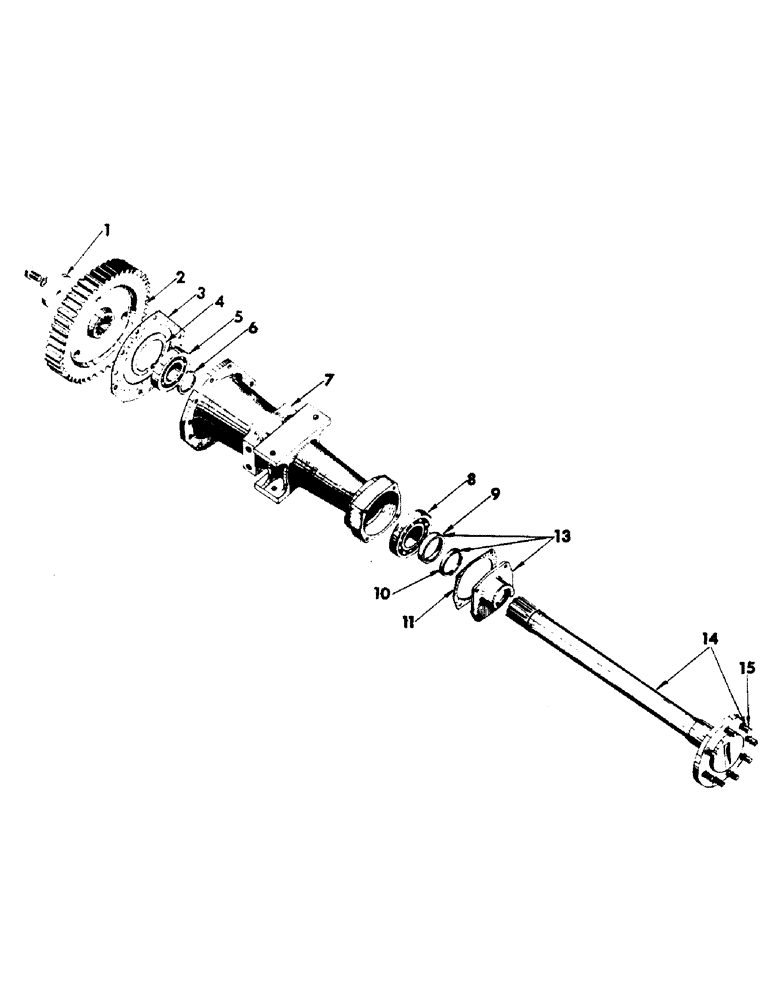

Запчасти Case IH B275 (090) - CHASSIS, REAR AXLE (12) - CHASSIS

1

709252R1

WASHER

retaining, bull bear

2шт.

28-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 8

hex, hd., 3/4" UNF x 1-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

2

751053R3

GEAR, bull, (48 teeth)

2шт.

3

703913R3

GASKET,0.79mm Thk

rear axle carrier

2шт.

4

703911R1

RING

CIRCLIP, "Seeger", 110 MM bore size, internal, or

2шт.

933078R1

SNAP RING,M110, Int

RING, locking

2шт.

5

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING, ball, rear axle, inner

2шт.

6

709251R1

COLLAR

rear axle

2шт.

7

703910R2

NO LONGER SERVICED

CARRIER, rear axle, R.H. (Illustrated)

1шт.

703909R2

NO LONGER SERVICED

CARRIER, rear axle, L.H.

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

hex. hd., 1/2" x 1-3/8"

20шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

20шт.

8

ST219A

BALL BEARING,65 mm ID x 120 mm OD x 23 mm

BEARING, ball, rear axle, outer

2шт.

9

703916R91

SEAL

OIL SEAL, rear axle, or

2шт.

703917R92

OIL SEAL

OIL SEAL, rear axle

2шт.

10

703915R1

WASHER,2.56mm ID x 3.13mm OD x 0.25mm Thk

felt, rear axle

2шт.

11

711197R1

GASKET

rear axle bearing, retainer

2шт.

13

751398R11

RETAINER

rear axle bearing, cpte., w/oil seal 703916R91 and washer 703915R1, or

2шт.

13

703914R11

RETAINER

rear axle bearing, cpte., w/oil seal 703916R91 and washer 703915R1

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

14

709250R11

AXLE

rear, cpte., w/eight bolts 709782R1

2шт.

15

709782R1

BOLT

rear wheel hub

16шт.

3042081R1

SHIM

bull gear

1шт.
