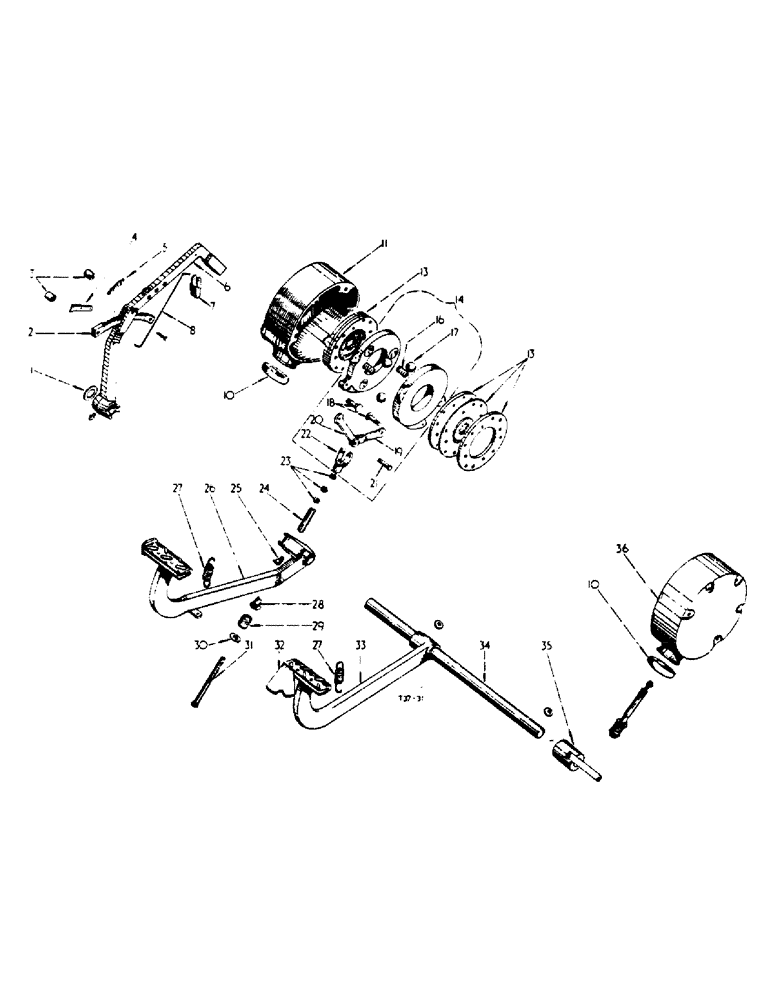

Запчасти Case IH B275 (088) - CHASSIS, DISC BRAKES (12) - CHASSIS

1

65012H

WASHER, plain, 1 -9/64" I.D. x 1-3/4" O.D. x 16 ga.

1шт.

119195

COTTER PIN,3/16" x 1 5/8"

PIN, SPLIT (COTTER), 3/16" x 1 5/8"

1шт.

2

709500R2

SECTOR

QUADRANT, hand brake lever

1шт.

3

703952R2

SPACER

hand brake lever quadrant

2шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

hex. hd., 3/8" x 1-3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1505

WASHER

plain, 13/32" I.D. x 1" O.D. x 16 ga.

2шт.

4

709497R1

PAWL

hand brake

1шт.

709499R1

PIN

hand brake pawl pivot

1шт.

137130

PIN

cotter, 1/16" dia. x 7/16"

1шт.

5

709498R1

SPRING

pawl return

1шт.

6

709492R91

LEVER

hand brake, cpte., w/three rivets 102684

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

102684

RIVET,But Hd, 5/16" x 11/16"

small, solid, button hd., 5/16" dia. x 13/16

3шт.

7

709495R1

LEVER, hand brake, release

1шт.

443146

AXLE PIN

PIN, groove, 3/16" x 3/4" long

1шт.

8

709496R1

ROD

hand brake pawl

1шт.

137124

FRAME

PIN, cotter, 1/16" x 5/16"

2шт.

446120

WASHER,#6

plain, 5/32" I.D. x 5/16" O.D. x .035"

2шт.

10

705965R1

BOOT

protection, brake housing

2шт.

11

708995R1

HOUSING, brake, R.H.

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

hex. hd., 3/8" x 3-1/4"

4шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

hex. hd., 3/8" x 3-1/2"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

95-11041

WASHER,3/8"

(13/32 ID x 13/16 OD x .065) 3/8"

1шт.

13

704422R92

NO LONGER SERVICED

DISC w/lining, cpte.

4шт.

14

704426R31

DISC, actuation, cpte., Comprising

2шт.

706039R2

BALL

3шт.

NSS

NOT SOLD SEPARAT

DISC

2шт.

704427R2

LINK

1шт.

704428R21

LINK

1шт.

118624

JAM NUT,Jam, 5/16"-24, G5

2шт.

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

706037R1

SPRING

2шт.

706038R1

STUD

2шт.

705972R1

YOKE

1шт.

16

706037R1

SPRING

extension

4шт.

17

706039R2

BALL

steel, actuating disc

6шт.

18

706038R1

STUD

4шт.

118624

JAM NUT,Jam, 5/16"-24, G5

jam, hex., light

4шт.

19

704428R21

LINK, actuating brake, female, cpte.

2шт.

20

704427R2

LINK

actuating brake, male

2шт.

21

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN, brake operating rod yoke

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

22

705972R1

YOKE

brake operating rod

2шт.

23

325-157

NUT

jam, hex., 7/16" - 20 UNF

6шт.

24

705231R2

SPACER, brake operating rod

2шт.

25

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

26

703938R13

PEDAL, brake, R.H., cpte., or

1шт.

26

3043221R1

PEDAL, brake, R.H., cpte.

1шт.

27

703943R3

SPRING

brake pedal return

2шт.

28

705978R1

BALL, brake operating rod

2шт.

29

705977R1

SPRING

brake opertating rod

2шт.

30

707351R1

WASHER

flat, 15/32" I.D. x 1-1/8" O.D. x 11 ga.

2шт.

31

703932R3

ROD

brake operating

2шт.

32

43751DB

LATCH, PEDALS

PLATE, lock brake pedal

1шт.

443036

PIN, groove, type 3, 1/4" x 3/4"

1шт.

51293D

SPRING

tension, brake pedal lock plate

1шт.

33

3043220R11

PEDAL, disc brake, L.H., cpte., w/plate 43751DB, pin 443036 and spring 51293D, or

1шт.

33

703935R13

PEDAL, disc brake, L.H., cptel, w/plate 43751DB, pin443036 and spring 51293D

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

18465D

WASHER

KEY, brake lever

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

34

703934R1

SHAFT, brake pedal

1шт.

35

703942R3

LEVER, disc brake, L.H.

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

704664R1

WASHER

KEY, brake lever

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

36

704429R2

HOUSING, brake, L.H.

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

hex. hd., 3/8" x 3-1/4"

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

356528R91

LINING

PACKAGE, service brake lining (consists of four linings with twenty four rivets)

2шт.
