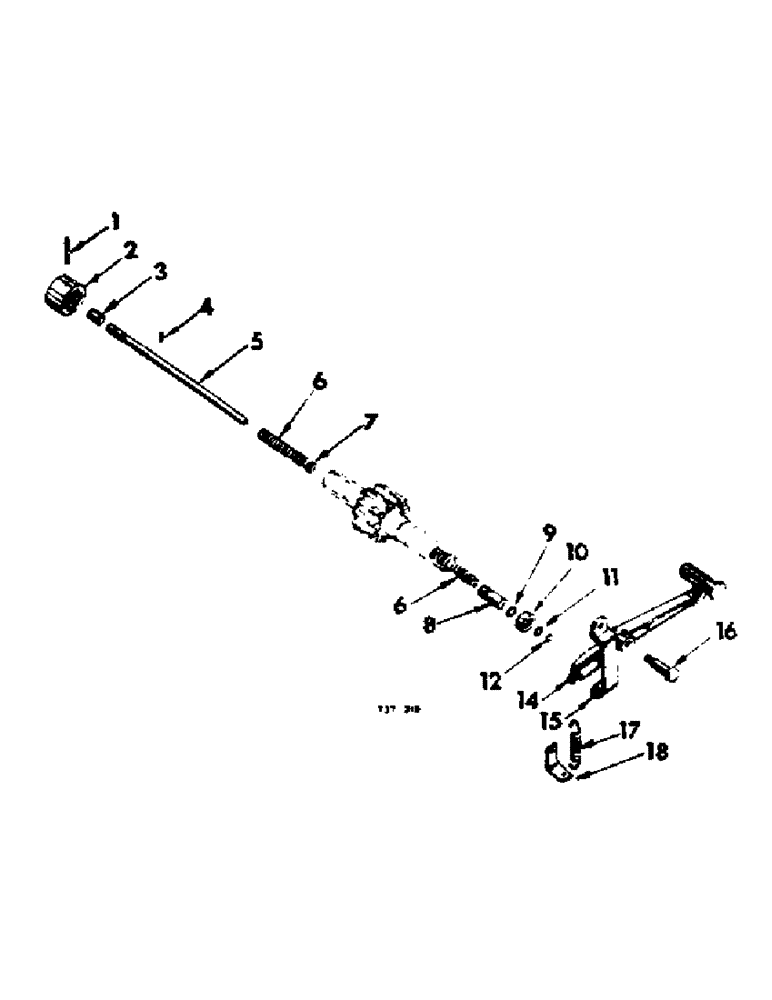

Запчасти Case IH B275 (087) - CHASSIS, DESCRIPTION (12) - CHASSIS

1

443050

PIN

groove, type 3, 5/16" x 2-1/2"

1шт.

2

704747R1

CLUTCH

differential lock

1шт.

3

704750R1

TUBE

DISTANCE PIECE, differential lock shaft

1шт.

4

141155

DOWEL,3/16" x 3/4"

PIN, dowel, 3/16" x 3/4"

1шт.

5

708997R1

SHAFT

differential lock

1шт.

6

705233R1

SPRING

differential lock

2шт.

7

704749R1

COLLAR

differential lock shaft

1шт.

8

708996R1

RETAINER

"O" ring, differential lock shaft

1шт.

9

704751R1

OIL SEAL

"O" RING, inner, differential lock shaft, or

1шт.

704752R1

O-RING

"O" RING, inner, differential lock shaft, or

1шт.

704753R1

GASKET,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

"O" RING, inner, differential lock shaft

1шт.

10

708998R91

SEAL

OIL SEAL, differential lock shaft

1шт.

11

704754R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

"O" RING, outer, differential lock shaft, or

1шт.

704755R1

GASKET

"O" RING, outer, differential lock shaft, or

1шт.

704756R1

O-RING

"O" RING, outer, differential lock shaft

1шт.

12

708999R1

RETAINER

CIRCLIP, external

1шт.

14

704744R3

LEVER

differential lock

1шт.

15

704758R1

LARGE PLATE

PLATE, thrust, differential lock lever

1шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

hex. hd., 7/16" x 1-1/8"

2шт.

W6652

WASHER

plain, 15/32" I.D. x 1" O.D. x 16 ga.

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

16

704757R1

BOLT

pivot, differential lock

1шт.

615167R1

WASHER

plain 25/32" I.D. x 1-3/16" O.D. 16 ga.

2шт.

17

704759R2

SPRING

return, differential lock lever

1шт.

18

707299R2

PLATE, anchor, differential lock lever return spring

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PT, Differential lock lever 1/8"-27 x .66 lg

1шт.
