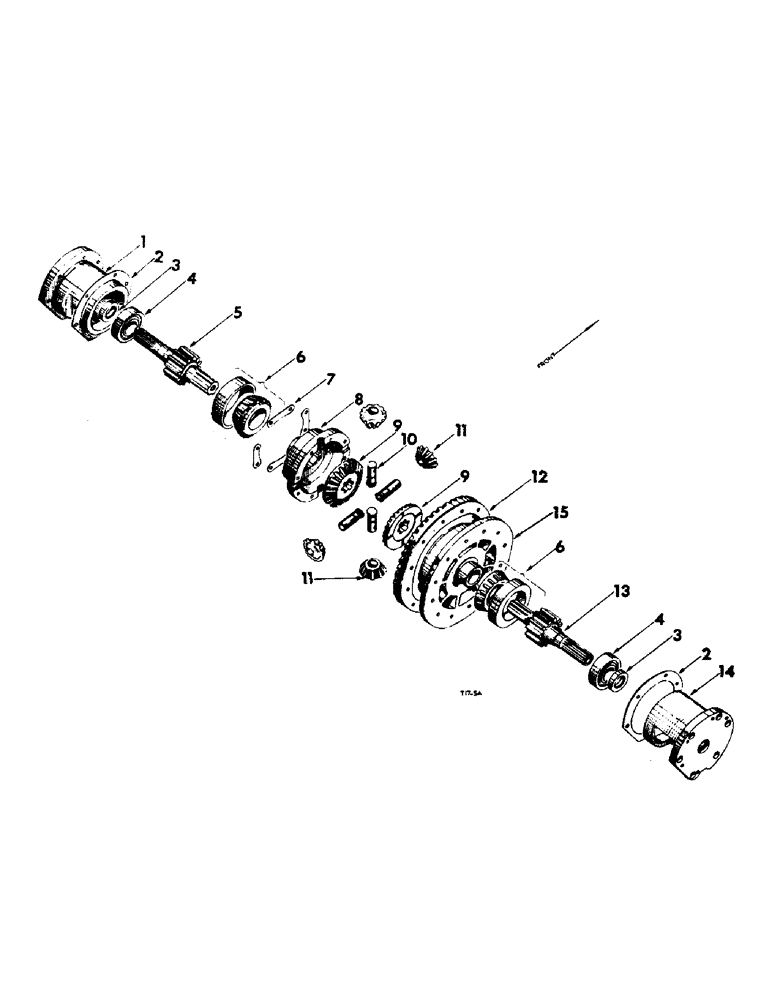

Запчасти Case IH B275 (085) - CHASSIS, DIFFERENTIAL (12) - CHASSIS

1

703905R21

CAGE, bearing, bull pinion shaft L.H., cpte. w/oil seal P/N 703907R91

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

2

711184R1

SHIM

bull pinion shaft bearing cage (Light)

1шт.

2

711185R1

SHIM

bull pinion shaft bearing cage (Medium)

1шт.

2

711186R1

SHIM

bull pinion shaft bearing cage (Heavy)

1шт.

3

703907R91

SEAL ASSY.

OIL SEAL, bull pinion shaft, or

2шт.

3

703908R92

OIL SEAL

bull pinion shaft

2шт.

4

ST293

BALL BEARING,45mm ID x 100mm OD x 25mm W

BEARING, ball, bull pinion shaft

2шт.

5

751109R1

SHAFT

brake, L.H. and bull pinion (13 teeth)

1шт.

6

704716R91

ROLLER BEARING

BEARING, roller, differential, or

2шт.

6

703904R91

BEARING

roller, differential

2шт.

7

705551R1

LOCK WASHER

PLATE, lock

4шт.

8

NSS

NOT SOLD SEPARAT

CASE, differential, order: P/N 703900R22

1шт.

9

704215R1

GEAR

bevel, differential (24 teeth)

2шт.

10

704707R1

AXLE DIFFERENTIAL

SHAFT, differential

4шт.

11

15350DA

PINION

differential (13 teeth)

4шт.

704765R1

DOWEL

PIN, dowel

4шт.

12

NSS

NOT SOLD SEPARAT

GEAR, bevel, drive, order: P/N 709448R91

1шт.

13

751110R1

SHAFT

brake, R.H. and bull pinion (13 teeth)

1шт.

14

703906R21

CAGE, bearing, bull pinion shaft R.H., cpte. w/oil seal order: P/N 703907R91

1шт.

NLS

NO LONGER SERVICED

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

15

NSS

NOT SOLD SEPARAT

CASE, differential order: P/N 703906R22

1шт.

703900R22

CASE, differential, cpte., (Two halves ref. nos. 8 and 15)

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

8шт.

3042127R1

BOLT,Hex, 7/16" - 20 x 1 1/8"

hex. hd., 7/16" UNF x 1-1/8"

12шт.

114607

LOCK, Ext Tooth, 7/16"

12шт.
