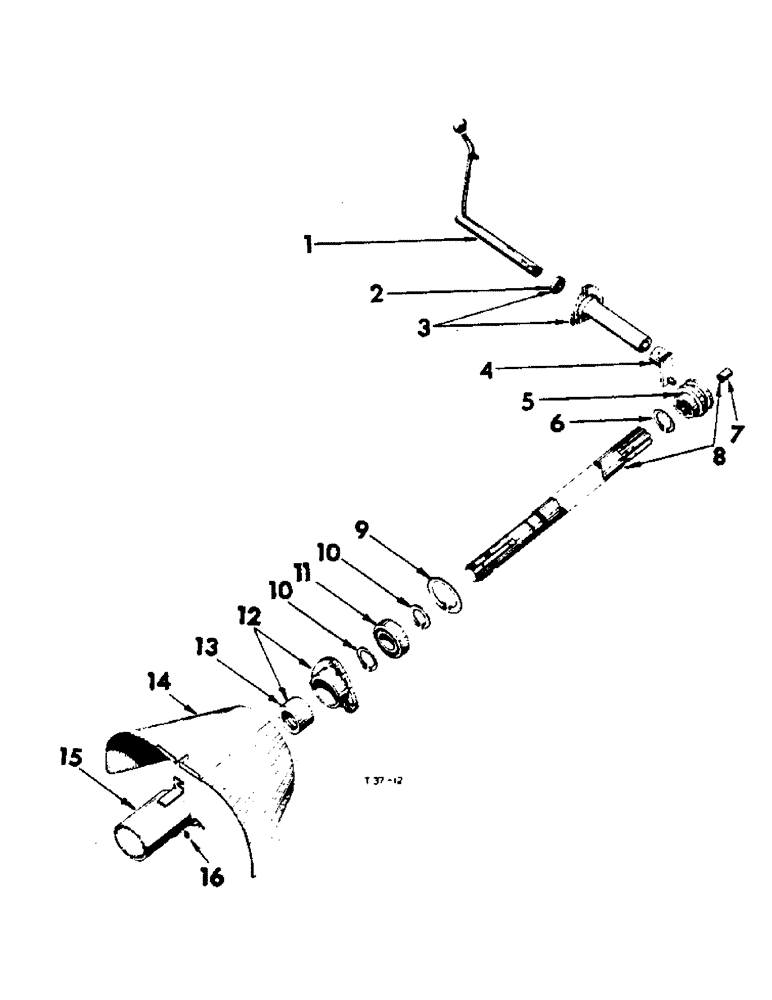

Запчасти Case IH B275 (084) - CHASSIS, REAR P.T.O. (12) - CHASSIS

1

751118R91

LEVER

shifter, P.T.O. rear clutch, cpte.

1шт.

2

704393R91

OIL SEAL

OIL SEAL, P.T.O. shifter bracket, or

1шт.

2

704394R91

SEAL

OIL SEAL, P.T.O. shifter bracket

1шт.

3

704392R21

SUPPORT

BRACKET, P.T.O. rear clutch, cpte. w/oil seal 704393R91

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

751115R91

LEVER

SHIFTER, P.T.O., cpte.

1шт.

142508

DRIVE BUSHING

groove, type 1, 3/16" x 1-1/4"

1шт.

5

751113R1

NO LONGER SERVICED

CLUTCH, rear, P.T.O. shaft

1шт.

6

751117R1

CLIP

CIRCLIP, P.T.O. shaft rear clutch

1шт.

7

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

BUSH, P.T.O. rear shaft

1шт.

8

751114R21

REAR PTO ASSY

SHAFT, P.T.O. rear, cpte. w/bush 48594DA

1шт.

9

704385R1

CLIP

CIRCLIP, (Internal 72 MM)

1шт.

10

708541R1

RETAINER

CIRCLIP, P.T.O. shaft rear bearing

2шт.

11

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, P.T.O. shaft rear

1шт.

12

704387R11

RETAINER

P.T.O. oil seal, cpte. w/oil seal 45702D

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

3шт.

95-11034

WASHER,1/4"

plain, 11/32" x I.D. x 11/16" O.D. x 16 ga.

3шт.

13

45702D

OIL SEAL

OIL SEAL, P.T.O

1шт.

14

704395R95

SHIELD

safety, P.T.O, cpte.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

15

3041319R11

CAP

safety, P.T.O., cpte., or

1шт.

751471R91

CAP

safety, P.T.O., cpte.

1шт.

16

751472R1

WASHER

special

3шт.
