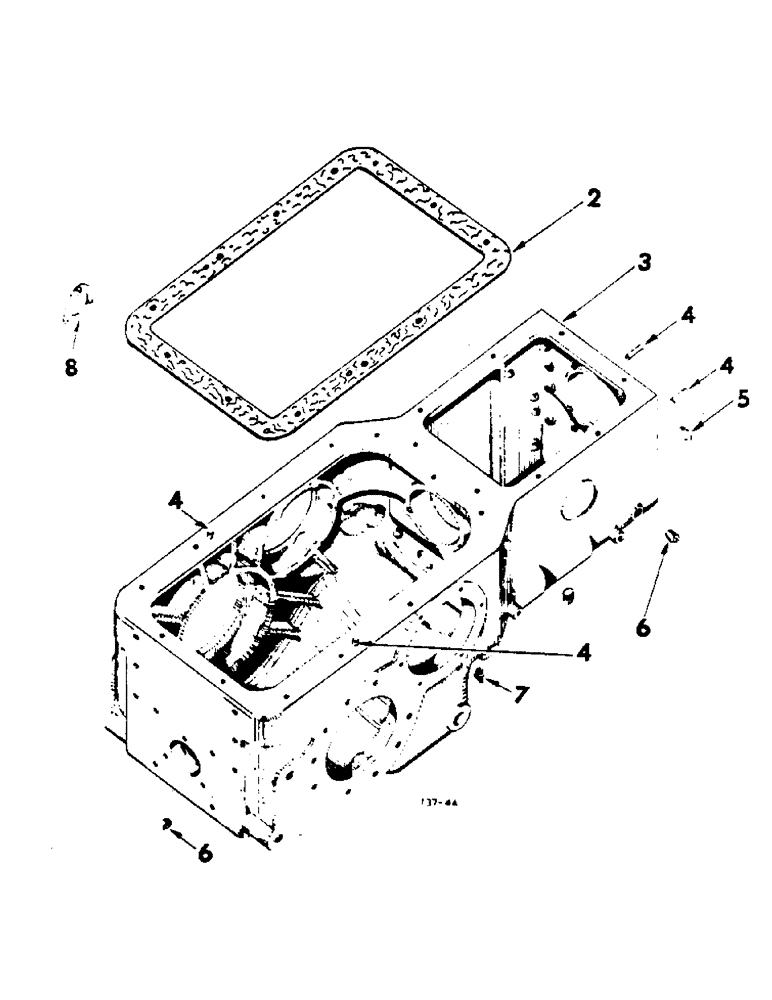

Запчасти Case IH B275 (083) - CHASSIS, TRANSMISSION CASE (12) - CHASSIS

2

703967R1

GASKET

transmission case cover - rear

1шт.

3

751051R21

CASE, transmission, Comprising

1шт.

703966R1

BUSHING

1шт.

711272R2

BUSHING

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

LUBRICATOR, angle 1/8" PT - 45 degrees

2шт.

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

172575

PLUG,Exp, 1 9/16"

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, Sq Hd, 1/2"-14 NPTF

3шт.

104938

PLUG

10шт.

4

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

5

172575

PLUG,Exp, 1 9/16"

expansion

1шт.

6

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

3шт.

7

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

LUBRICATOR, angle 1/8" PT - 45 degrees (Break pedal shaft)

2шт.

8

711312R1

GASKET

P.T.O. shifter shaft hole cover plate

1шт.

711272R1

BUSHING

reverse idler gear - rear

1шт.

703966R1

BUSHING

reverse idler gear - front

1шт.

104938

PLUG

cork, no. 2

10шт.

112428

PLUG

cork, no. 0

2шт.
