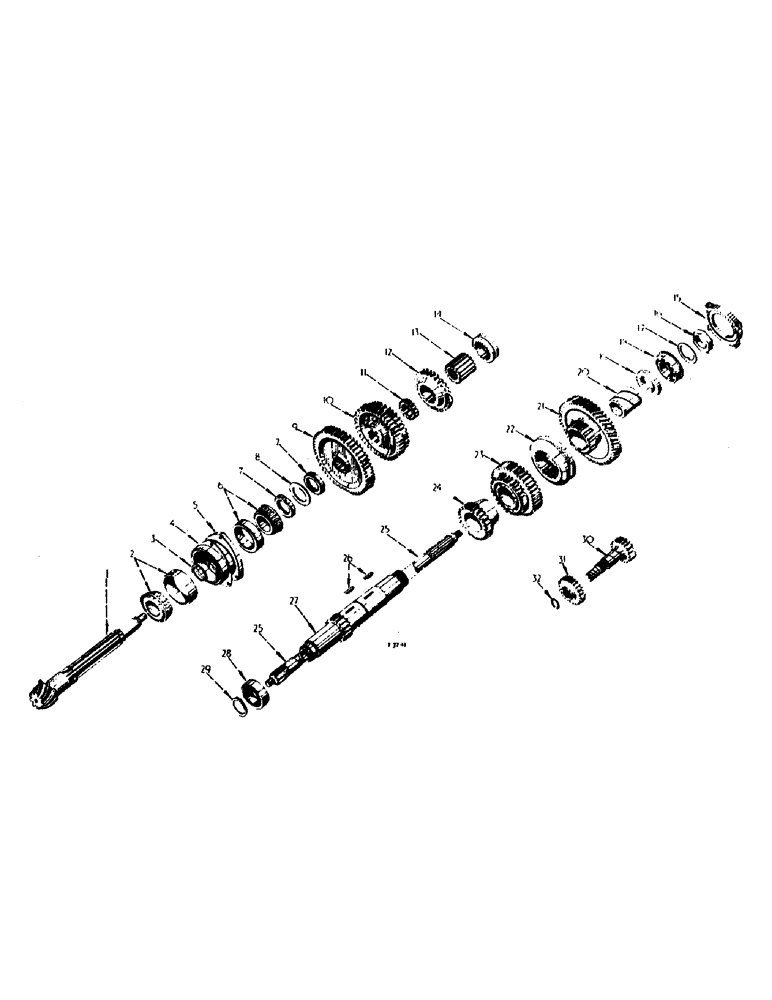

Запчасти Case IH B275 (080) - CHASSIS, TRANSMISSION GEARS AND SHAFTS (12) - CHASSIS

1

NSS

NOT SOLD SEPARAT

SHAFT, transmission spline (Order 709448R92)

1шт.

2

PO15712

TAPERED BEARING

roller, taper, trans. spline shaft, rear

1шт.

3

707500R1

SPACER

trans. spline shaft taper roller bearing

1шт.

707501R1

SHIM

trans. spline shaft taper roller bearing (.002)

1шт.

707503R1

SHIM

trans. spline shaft taper roller bearing (.004)

1шт.

707502R1

SHIM

trans. spline shaft taper roller bearing (.010)

1шт.

4

704008R1

SHIM

trans. spline shaft, taper roller brg. cage, heavy

1шт.

4

704009R1

SHIM

trans. spline shaft, taper roller brg. cage, medium

1шт.

4

704010R1

SHIM

trans. spline shaft, taper roller brg. cage, lingt

1шт.

5

751069R1

CAGE

trans. spline shaft, taper roller bearing

1шт.

186334

BOLT, hex. hd., 1/2" UNF x 2-5/8"

3шт.

25-118

NUT,1/2"-20, G5

lock, 1/2" UNF

3шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

3шт.

6

ST2037

TAPERED BEARING,2" ID x 3.5" OD x 0.8265"

BEARING, roller, taper, trans. spline shaft, front

1шт.

7

751068R1

NUT

lock, trans. spline shaft taper roller bearing

2шт.

8

703992R1

WASHER

lock, trans. spline shaft taper roller brg. lock nut

1шт.

9

751070R1

GEAR

sliding, 1st and reverse speed (51 teeth)

1шт.

10

751071R1

GEAR

sliding, 2nd and 3rd speed, (44 and 38 teeth)

1шт.

11

751073R1

GEAR

coupling, 4th and direct speed

1шт.

12

751072R1

GEAR

coupling, sliding, 4th and direct speed (31 teeth)

1шт.

13

751074R11

PINION

GEAR, sliding quill, cpte. w/two bearings 751075R91

1шт.

14

751076R1

COUPLING

sliding gear

1шт.

15

751150R1

RETAINER

front bearing, transmission countershaft

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex. hd., 3/8" - 1-1/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

751065R1

BEARING LOCK NUT

lock, countershaft front bearing

1шт.

17

751066R1

WASHER

lock, countershaft front bearing

1шт.

18

751060R91

CRANKSHAFT BEARING

BEARING, ball, countershaft, front

1шт.

19

751059R1

SPACER

countershaft

1шт.

20

751056R1

BUSHING

BUSH, cast iron

1шт.

21

751058R1

GEAR

constant mesh

1шт.

22

751057R1

COUPLING, sliding gear, Serial Range: Up-B-275/15214

1шт.

22

3040868R1

COUPLING

sliding gear, B-275/15215 up

1шт.

23

751055R1

GEAR

driving, 3rd and 4th speed (32 and 39 teeth)

1шт.

24

751054R1

GEAR

driving, 2nd speed (26 teeth)

1шт.

25

751141R1

SHAFT

P.T.O., front

1шт.

26

124556

WOODRUFF KEY,#18, 1/4" x 1 1/8", HT

2шт.

27

751160R11

GEAR

COUNTERSHAFT, trans. and first speed gear, cpte. w/bush 751161R1

1шт.

28

751063R91

BALL BEARING,50 mm ID x 80 mm OD x 19 mm

ball, trans. countershaft, rear, or

1шт.

28

3040830R91

BALL BEARING

BEARING, ball, trans. countershaft, rear

1шт.

29

751638R1

RING, SNAP

CIRCLIP, trans. countershaft rear bearing retaining

1шт.

30

751082R1

SHAFT AND GEAR, reverse idler (20 teeth)

1шт.

31

751083R1

GEAR

driving, reverse idler (22 teeth)

1шт.

32

704029R1

RING

CIRCLIP, "Seeger," external, type

1шт.

Q319

WASHER, plain, 1-1/64" x 1-35/64" x 12 ga.

1шт.

751075R91

BEARING

needle (Sliding quill gear, cpte.)

2шт.

751161R1

BUSHING

BUSH, P.T.O. shaft

1шт.

709448R92

SHAFT

PACKAGE, service, trans. spline shaft and drive gear

1шт.

3041092R1

SHIM

trans. spline shaft roller bearing retainer (.015)

1шт.

Or as required

1шт.

3041093R1

SHIM, transmision spline shaft roller brg. retainer (.030)

1шт.

Or as required

1шт.
