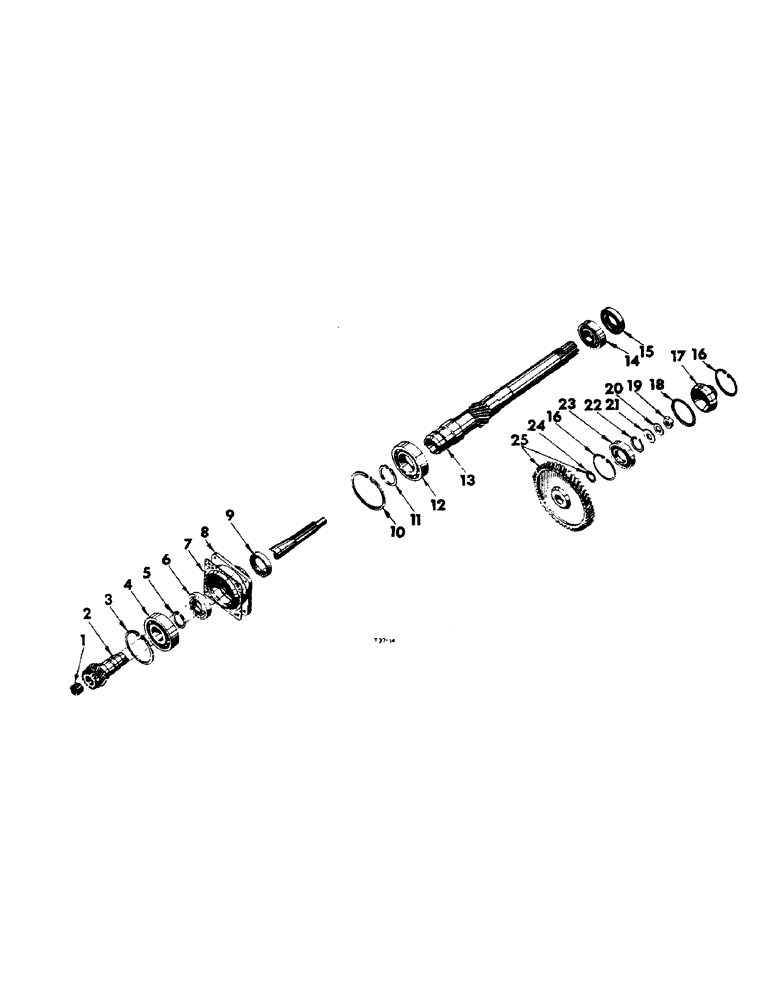

Запчасти Case IH B275 (076) - CHASSIS, P.T.O. GEARS AND SHAFTS (12) - CHASSIS

1

704014R91

NO LONGER SERVICED

BEARING, pilot, trans. spline shaft, or

1шт.

1

751867R91

BEARING

pilot, trans. spline shaft

1шт.

2

751078R2

SHAFT

trans. driving

1шт.

3

751081R1

CLIP

CIRCLIP, trans. driving shaft brg. retaining (100 MM internal)

1шт.

4

ST293

BALL BEARING,45mm ID x 100mm OD x 25mm W

BEARING, trans. driving shaft

1шт.

5

751146R1

RING

CIRCLIP, trans. driving shaft bearing retainings

1шт.

6

751080R91

SEAL

OIL SEAL, trans. driving shaft

1шт.

7

704017R1

GASKET

trans. driving shaft bearing cage

1шт.

8

751077R1

CAGE

bearing, trans. driving shaft

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex. hd., 3/8" x 1-1/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

751140R91

SEAL

OIL SEAL, P.T.O. driving shaft, rear, or

1шт.

9

3042160R91

SEAL

OIL SEAL, P.T.O. driving shaft, rear

1шт.

10

703911R1

RING

CIRCLIP, P.T.O. driving shaft rear brg. retaining (110 MM external), or

1шт.

10

933078R1

SNAP RING,M110, Int

RING, locking

1шт.

11

703696R1

RING

CIRCLIP, P.T.O. driving shaft rear brg. retaining (60 MM external), or

1шт.

11

933089R1

SNAP RING,M60, Ext

RING, locking

1шт.

12

ST227B

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING, P.T.O. driving shaft, rear

1шт.

13

751137R1

SHAFT, driving, and gear, P.T.O. (16 teeth)

1шт.

14

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING, P.T.O. driving shaft, front

1шт.

15

704229R91

OIL SEAL

P.T.O. driving shaft, front, or

1шт.

15

3042159R91

OIL SEAL

P.T.O. driving shaft, front

1шт.

16

751149R1

RING

CIRCLIP, P.T.O. front bearing retaining (850 MM internal)

2шт.

17

751148R3

CAP

P.T.O. front bearing

1шт.

18

751147R1

O-RING

"O" RING, P.T.O. front bearing cap

1шт.

19

219758

JAM NUT,Jam, 3/4"-10, G5

lock, P.T.O. shaft, front

1шт.

20

751143R1

LOCK WASHER

locking, P.T.O. shaft, front

1шт.

21

751142R1

WASHER

retaining P.T.O. shaft, front

1шт.

22

751146R1

RING

CIRCLIP, P.T.O. front bearing retaining (45 MM external)

1шт.

23

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING, P.T.O. shaft, front

1шт.

24

751145R1

RING, SNAP

CIRCLIP, P.T.O. driven gear

1шт.

25

751144R11

GEAR, driven, P.T.O., (54 teeth) cpte. w/circlip 751145R1

1шт.
