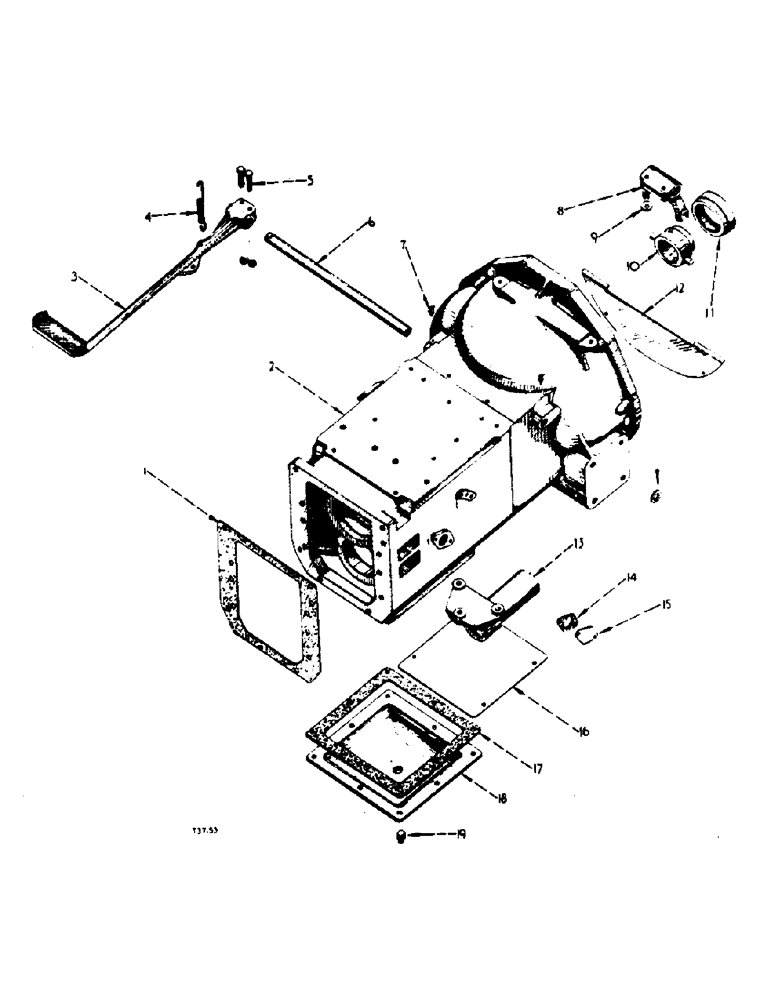

Запчасти Case IH B275 (074) - CHASSIS, CLUTCH HOUSING AND CONNECTIONS (12) - CHASSIS

1

751124R1

GASKET

clutch housing to transmission case

1шт.

2

751122R21

HOUSING, clutch, cpte. w/two lubricators 109462 and four plugs 104942

1шт.

705565R1

BOLT (SPREADER),Hex, 1/2" - 13 x 1 1/2"

BOLT, hex. hd., 1/2" x 1-1/2" (Special)

8шт.

751123R1

BOLT,Hex, 1/2" - 13 x 1 3/4"

hex. hd., 1/2" x 1-3/4" (Special)

2шт.

705566R1

BOLT,Hex, 1/2" - 13 x 1 7/8"

HEX. HD., 1/2" X 1-7/8" (Special)

7шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

17шт.

751443R1

PIN

dowel, clutch housing

2шт.

3

751050R2

PEDAL

clutch

1шт.

751399R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Full Thd

clutch pedal

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

4

705252R2

SPRING

clutch pedal return

1шт.

5

181379

BOLT,Hex, 3/8" - 24 x 2", Gr 5

clutch pedal, 3/8" UNF x 2"

2шт.

103026

NUT,3/8"-24, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

751048R2

SHAFT

clutch release

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

49405H

WASHER

plain, 27/32" I.D. x 1-1/4" O.D. x 16 ga.

1шт.

7

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR, angle 1/8" PT - 90 degrees

2шт.

8

751136R2

FORK TEDDER

FORK, clutch release

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

clutch release fork

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

18465D

WASHER

KEY, clutch release shaft

1шт.

10

751134R1

SLEEVE, clutch release bearing

1шт.

11

751866R91

BEARING

clutch release, or

1шт.

11

751133R94

BALL BEARING

BEARING, clutch release, or

1шт.

3040892R91

BEARING

clutch release

1шт.

12

703957R1

COVER

dust, housing

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

751135R1

CARRIER, clutch release bearing sleeve

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

hex. hd., 7/16" x 1-1/4"

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

14

751130R1

GASKET

cover plate, P.T.O. shifter hole

1шт.

15

751131R1

PLATE

cover, P.T.O. shifter hole

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex. hd., 1/4" x 3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

751125R1

COVER

hand hole, housing

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

17

751126R1

GASKET

cover plate P.T.O. gearbox

1шт.

18

751127R1

PLATE

cover, P.T.O. gearbox

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

19

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, or Sq Hd, 1/2"-14 NPTF

1шт.

19

219199

PLUG

pipe, 1/2" NPT

1шт.

PLATE, tractor, serial no. (non-serviceable)

1шт.

443090

STUD

drive, no. 6 x 3/8" long, grooved

4шт.

NLS

NO LONGER SERVICED

PLUG, cork, no. 6 (Clutch housing)

4шт.
