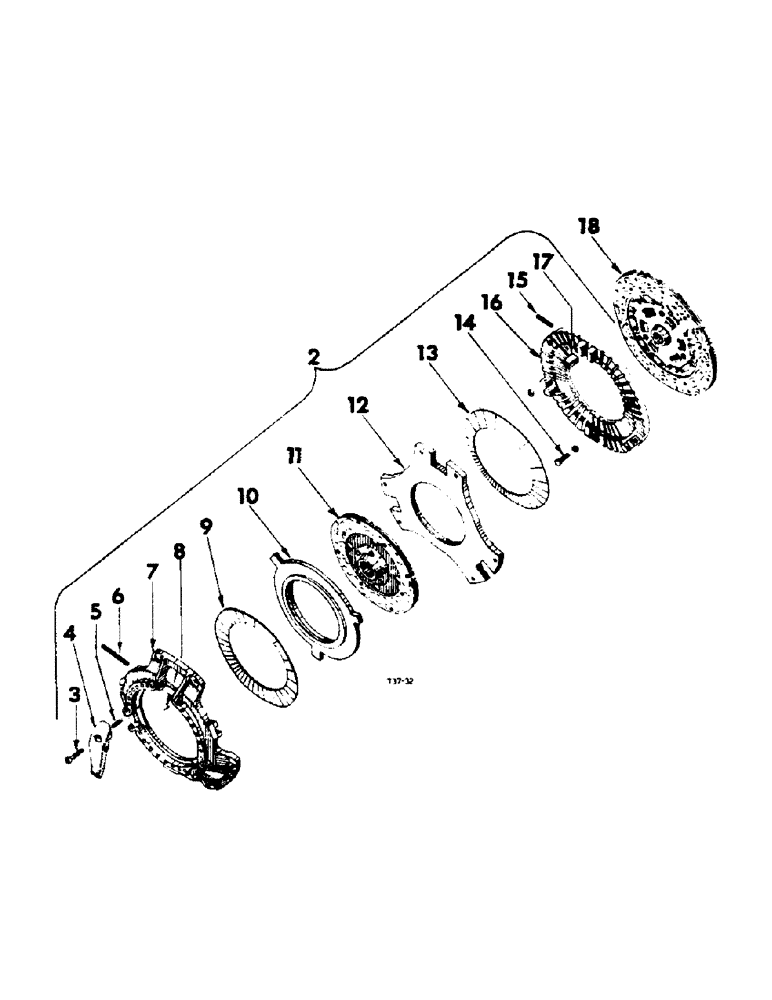

Запчасти Case IH B275 (072) - CHASSIS, DUAL CLUTCH (12) - CHASSIS

2

709638R92

HOUSING

assy., Comprising

1шт.

709643R1

PLATE

COVER

1шт.

709650R1

SET

LEVER

3шт.

709640R92

CLUTCH & DISC ASSY

MEMBER

1шт.

709653R1

NUT

6шт.

709648R1

PIN

3шт.

709649R1

PIN

3шт.

709655R1

PIN

3шт.

709641R1

PLATE

1шт.

709643R1

PLATE

1шт.

709644R1

PLATE

1шт.

709647R1

END FITTING

END

3шт.

709651R1

ADJUSTMENT SCREW

3шт.

709652R1

SET SCREW

9шт.

709645R1

SPRING

1шт.

709646R1

PLATE ASSY.

SPRING

1шт.

709654R1

VALVE SPRING

SPRING

3шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

3

709651R1

ADJUSTMENT SCREW

adjusting

3шт.

4

709650R1

SET

LEVER, clutch

3шт.

5

709654R1

VALVE SPRING

SPRING, anchor clip

3шт.

6

709649R1

PIN

pivot

3шт.

7

709642R1

BRACKET

COVER

1шт.

8

709655R1

PIN

lock, grooved

3шт.

9

709646R1

PLATE ASSY.

SPRING, bellleville (9th clutch)

1шт.

10

709644R1

PLATE

pressure (9th clutch)

1шт.

11

709649R1

PIN

MEMBER, 9" driven, assy.

1шт.

12

709643R1

PLATE

flywheel

1шт.

13

709645R1

SPRING

Belleville (Main drive)

1шт.

14

709652R1

SET SCREW

set

9шт.

709653R1

NUT

lock

6шт.

15

709648R1

PIN

rod end

3шт.

16

709641R1

PLATE

pressure (Main drive)

1шт.

17

709647R1

END FITTING

END, rod

3шт.

18

709639R92

CLUTCH

MEMBER, 11" drive

1шт.

3041389R91

SERVICE KIT

PACKAGE, service, clutch facing (Consists of two facings and twenty-four rivets) (For 11" driven member)

1шт.

3041390R91

FACING

PACKAGE, service, clutch facing (Consists of two facings and eight rivets) (For 9" driven member)

1шт.
