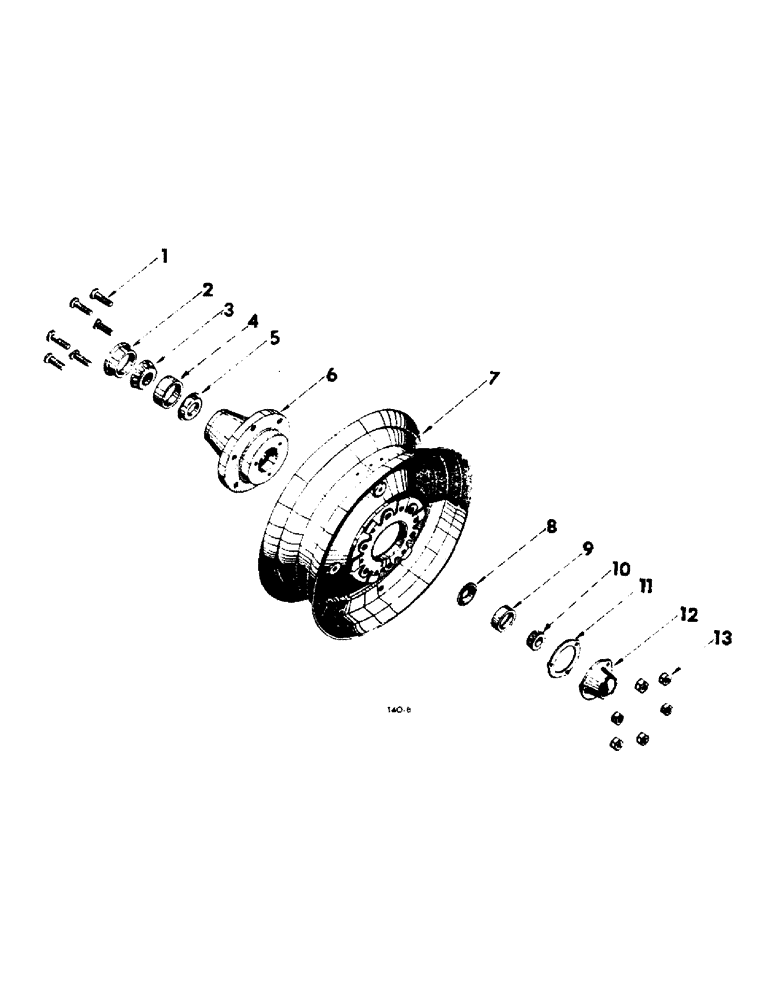

Запчасти Case IH B275 (071) - CHASSIS, FRONT WHEEL (12) - CHASSIS

1

709779R1

BOLT

front wheel hub

12шт.

2

48548D

WASHER

felt washer, front wheel

2шт.

3

ST2049

TAPERED BEARING,1.3755" ID x 2.718" OD x 0.7953"

CONE, front wheel inner bearing

2шт.

4

ST974

TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"

CUP, front wheel inner bearing

2шт.

5

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

grease, front wheel bearing - inner

2шт.

6

HUB, front, wheel (Order wheel assy., 709783R91)

2шт.

7

704675R92

SCREW

RIM AND DISC, front wheel cpte. (4.50 x 16)

2шт.

8

60289D

WASHER

RETAINER, grease, front wheel bearing outer

2шт.

9

13417D

BEARING, CUP,56.92mm OD x 16mm W

CUP, front wheel outer bearing

2шт.

10

13321DA

TAPERED BEARING,23.81mm ID x 19.91mm W

CONE, front wheel outer bearing

2шт.

11

703921R1

GASKET

front, wheel hub cap

2шт.

12

703922R1

NO LONGER SERVICED

CAP, front wheel hub, or

2шт.

12

704021R1

CAP

front wheel hub

2шт.

BOLT, 5/16" x 3/4"

6шт.

WASHER, lock, 5/16"

6шт.

13

704486R1

NUT

front wheel hub bolt

12шт.

709783R91

WHEEL, front service, assy., Comprising

1шт.

ST2049

TAPERED BEARING,1.3755" ID x 2.718" OD x 0.7953"

CONE

1шт.

13321DA

TAPERED BEARING,23.81mm ID x 19.91mm W

CONE

1шт.

ST974

TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"

CUP

1шт.

13417D

BEARING, CUP,56.92mm OD x 16mm W

CUP

1шт.

NSS

NOT SOLD SEPARAT

HUB

1шт.

48548D

WASHER

1шт.

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

1шт.

60289D

WASHER

RETAINER

1шт.
