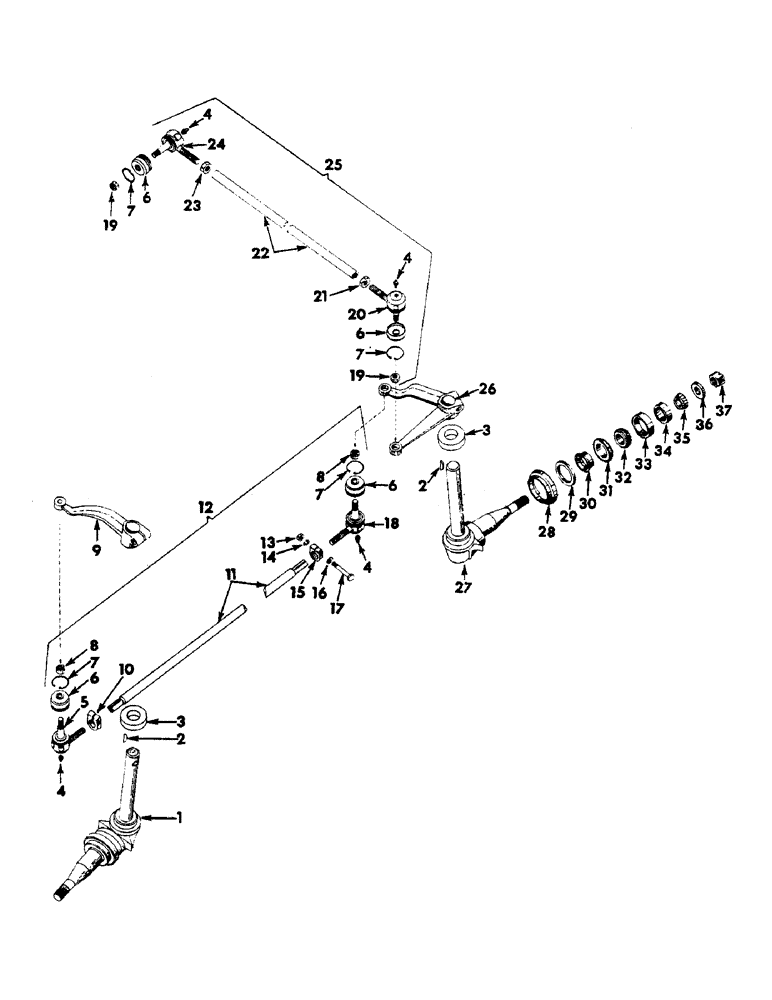

Запчасти Case IH B275 (068) - CHASSIS, STEERING KNUCKLES, ARMS AND DRAGLINKS (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
708430R91
STEERING KNUCKLE
KNUCKLE, steering, R.H., cpte., Up to B-275/13173, Comprising
1шт.
48539D
OIL SEAL
1шт.
48541D
SHIELD
1шт.
50270D
SPACER
1шт.
50259D
WASHER
WASHER
1шт.
1
3040275R91
STEERING KNUCKLE
KNUCKLE, steering, R.H., cpte., B-275/13174 up, Comprising
1шт.
48539D
OIL SEAL
1шт.
48541D
SHIELD
1шт.
50270D
SPACER
1шт.
50259D
WASHER
WASHER
1шт.
2
40093D
WOODRUFF KEY,#127, 1/4" x 2 1/8", HT
KEY, steering knuckle arm (Woodruff no. 127), Up to B-275/13173
2шт.
2
114745
WOODRUFF KEY,#21, 1/4" x 1 1/4", HT
Steering knuckle arm (Woodruff no. 810), B-275/13174 up #21, 1/4" x 1 1/4", HT
2шт.
3
39862D
BEARING ASSY,34.67mm ID x 66.67mm OD x 19.46mm W
steering knuckle thrust
2шт.
4
81300H
LUBE NIPPLE
LUBRICATOR, straight, 1/4" - 28 NF
4шт.
5
3040919R91
THREADED TIE-ROD
END, tie rod, R.H.,cpte., Comprising
1шт.
3041067R1
BOOT
1шт.
3041066R1
CLIP
1шт.
3041064R1
NUT
1шт.
3041065R1
WASHER
1шт.
6
3041067R1
BOOT
end
4шт.
3041065R1
WASHER
boot
4шт.
7
3041066R1
CLIP
boot
4шт.
8
3041064R1
NUT, tie rod end
2шт.
3044927R1
LOCKPLATE, tie rod end nut
2шт.
9
108428R1
ARM, steering knuckle, R.H., Serial Range: Up-B-275/13173
1шт.
9
3040273R1
STEERING LEVER
ARM, steering knuckle, R.H., B-275/13174 up
1шт.
413-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
hex. hd., 5/8" x 2-3/4"
1шт.
102639
NUT,5/8"-11, G5
1шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
10
3042283R1
NO LONGER SERVICED
CLIP, tie rod, R.H.
1шт.
11
3041063R1
ROD
TUBE, tie rod
1шт.
12
708426R92
BAR
TIE ROD, cpte.
1шт.
13
3042285R1
NUT, tie rod clip
2шт.
14
3042286R1
WASHER, tie rod clip nut
2шт.
15
3042282R1
NO LONGER SERVICED
CLIP, tie rod, L.H.
1шт.
16
3042287R1
WASHER
tie rod clip bolt
2шт.
17
3042284R1
BOLT, tie rod clip
2шт.
18
3040920R91
THREADED TIE-ROD
END, tie rod, L.H., cpte., Comprising
1шт.
3041067R1
BOOT
1шт.
3041066R1
CLIP
1шт.
3041064R1
NUT
1шт.
3041065R1
WASHER
1шт.
19
709754R1
NUT, drag link end
2шт.
3044927R1
LOCKPLATE, drag link end nut
2шт.
20
3040922R91
END
drag link, R.H., cpte., Comprising
1шт.
3041067R1
BOOT
1шт.
3041066R1
CLIP
1шт.
709754R1
NUT
1шт.
3041065R1
WASHER
1шт.
21
705248R1
NUT
lock, R.H. drag link end
1шт.
22
3041060R1
ROD
TUBE, drag link
1шт.
23
705247R1
NUT
lock, L.H. drag link end
1шт.
24
3040921R91
THREADED TIE-ROD
END, drag link, L.H., cpte., Comprising
1шт.
3041067R1
BOOT
1шт.
3041066R1
CLIP
1шт.
709754R1
NUT
1шт.
3041065R1
WASHER
1шт.
25
708425R92
BAR
DRAG LINK, cpte.
1шт.
26
708427R1
ARM, steering knuckle, L.H., Serial Range: Up-B-275/13173
1шт.
26
3040272R1
STEERING LEVER
ARM, steering knuckle, L.H., B-275/13174 up
1шт.
413-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
hex hd., 5/8" x 2-3/4"
1шт.
102639
NUT,5/8"-11, G5
1шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
27
708429R91
STEERING KNUCKLE
KNUCKLE, steering, L.H., cpte., Comrising
1шт.
48539D
OIL SEAL
1шт.
48541D
SHIELD
1шт.
50270D
SPACER
1шт.
50259D
WASHER
WASHER
1шт.
27
3040274R91
KNUCKLE, sterring, L.H., cpte., Comprising
1шт.
48539D
OIL SEAL
1шт.
48541D
SHIELD
1шт.
50270D
SPACER
1шт.
50259D
WASHER
WASHER
1шт.
28
48541D
SHIELD
dust, front wheel
2шт.
29
50259D
WASHER
WASHER, felt, front wheel
2шт.
30
50270D
SPACER
bearing, front wheel
2шт.
31
48539D
OIL SEAL, front wheel
2шт.
32
ST2049
TAPERED BEARING,1.3755" ID x 2.718" OD x 0.7953"
CONE, front wheel inner bearing
2шт.
33
ST974
TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"
CUP, front wheel inner bearing
2шт.
34
13417D
BEARING, CUP,56.92mm OD x 16mm W
CUP, front wheel outer bearing
2шт.
35
13321DA
TAPERED BEARING,23.81mm ID x 19.91mm W
CONE, front wheel outer bearing
2шт.
36
700572R1
WASHER
retainer, front wheel outer bearing
2шт.
37
427645
SLOTTED NUT,7/8"-14, G5
NUT, slotted, hex., 7/8" UNF
2шт.
103398
COTTER PIN,5/32" x 1 1/2"
Pin, Split (Cotter), 5/32" x 1 1/2"
2шт.
Выбрано товаров: 84
