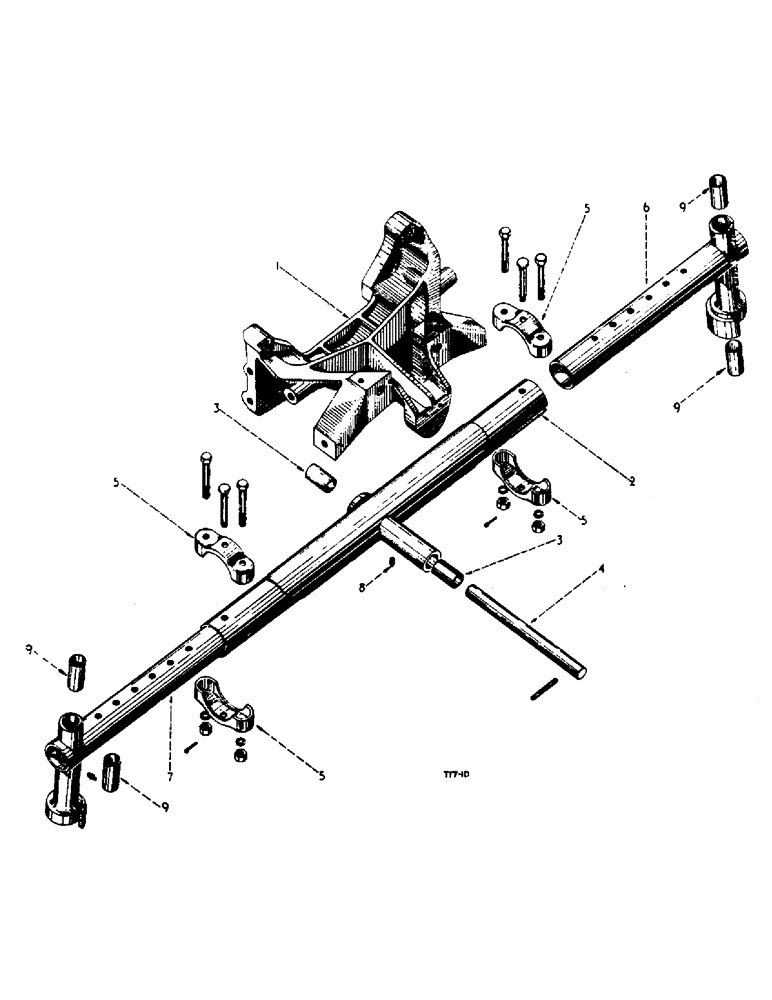

Запчасти Case IH B275 (066) - CHASSIS, FRONT AXLE (12) - CHASSIS

1

706408R5

SUPPORT

front axle (Note)

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

hex. hd., 5/8" x 3", Course Threads

2шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

hex. hd., 5/8" x 3-3/4", Course Threads

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

hex. hd., 5/8" x 2-3/4"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3041407R1

PAD

radiator and axle support

1шт.

2

706409R94

AXLE, front, cpte. w/two bush 705592R1, lubricator 109461 and shim 706151R1

1шт.

3

705592R1

BUSHING

BUSH, front axle pivot pin sleeve

2шт.

3

705593R1

BUSHING

BUSH, front axle pivot pin sleeve

2шт.

4

704078R2

PIN

pivot, front axle

1шт.

443059

PIN

groove, 3/8" x 2-3/4"

1шт.

5

704076R1

CLAMP

front axle

4шт.

17723R1

BOLT,Hex, 5/8" - 11 x 4"

hex. hd., 5/8" x 4"

4шт.

102639

NUT,5/8"-11, G5

4шт.

704077R1

PIN

front axle clamp

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

704069R21

AXLE

EXTENSION, front axle, L.H., cpte. w/lubricator 109461 and two bush 40090D

1шт.

7

704070R21

EXTENSION, front axle, R.H., cpte. w/lubricator 109461 and two bush 40090D

1шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

3шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

LUBRICATOR

3шт.

9

40090D

BUSHING

BUSH, steering knuckle pivot pin

4шт.

706151R1

SHIM

front axle pivot pin sleeve (.0625)

1шт.

706152R1

SHIM

front axle pivot pin sleeve (33 SWG)

1шт.

706153R1

SHIM, front axle pivot pin sleeve (40 SWG)

1шт.

706154R1

SHIM, front axle pivot pin sleeve (44 SWG)

1шт.

706155R1

SHIM, front axle pivot pin sleeve (47 SWG)

1шт.
