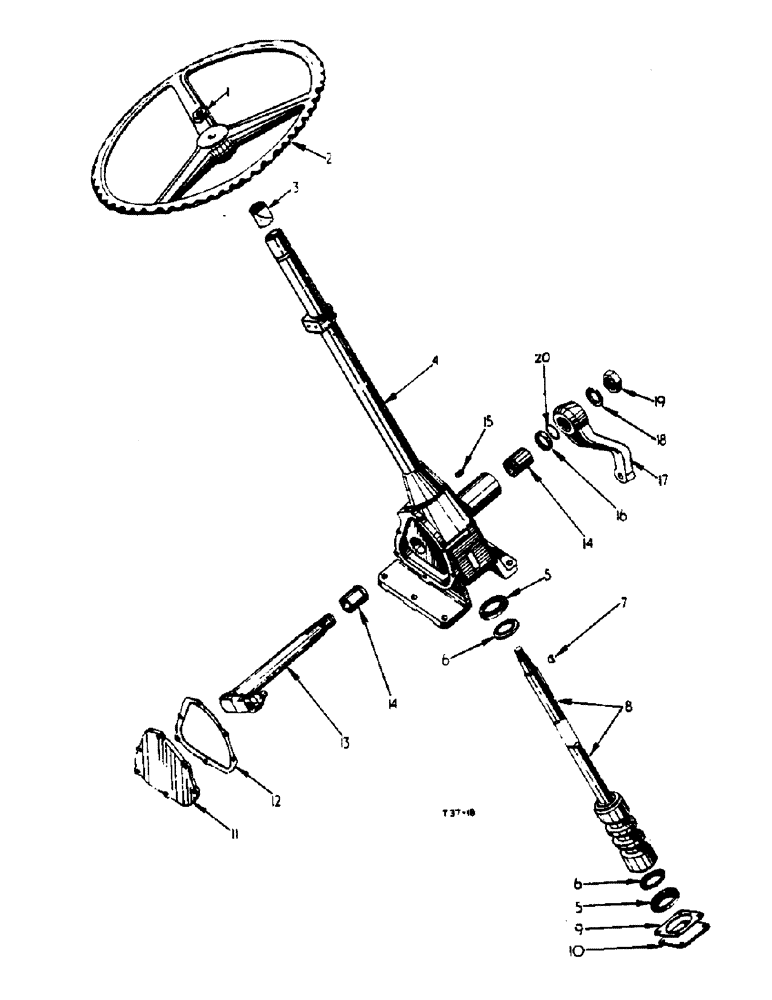

Запчасти Case IH B275 (064) - CHASSIS, STEERING MECHANISM (12) - CHASSIS

1

751454R1

NUT

steering wheel

1шт.

2

708424R91

WHEEL

steering

1шт.

3

708613R1

LARGE PLATE

BUSH, felt

1шт.

4

708600R91

STEERING COLUMN

BOX, steering and outer tube cpte., w/two bush 708601R1, plug 708603R1 and oil seal 708602R91

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

hex. hd., 7/16" x 1-1/4"

3шт.

NLS

NO LONGER SERVICED

hex., 7/16"

1шт.

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

709473R1

STUD, 7/16" x 1-11/16"

1шт.

115550

LOCK WASHER,Int Tooth, 7/16"

WASHER, lock, internal tooth, 7/16"

4шт.

5

708612R1

BEARING CUP,39.69mm ID x 54.84mm OD x 7mm W

CUP, ball

2шт.

6

708611R91

BEARING, BALL,41.96mm ID x 53.98mm OD x 6.73mm W

CAGE, ball assy.

2шт.

7

106751

KEY

Woodruff no. 9

1шт.

8

708604R91

SHAFT

cam and steering, cpte.

1шт.

9

708618R1

SHIM

.0024"

1шт.

9

708619R1

SHIM

.005"

1шт.

9

708623R1

SHIM

.010"

1шт.

10

708617R1

COVER

end

1шт.

708625R1

BOLT (SPREADER)

BOLT, 5/16" UNF

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

708606R1

NO LONGER SERVICED

COVER, side

1шт.

708625R1

BOLT (SPREADER)

BOLT, 5/16" UNF

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

12

708607R1

SHIM

.0024"

1шт.

12

708608R1

SHIM

.005"

1шт.

12

708609R1

SHIM

.010"

1шт.

13

708605R91

SHAFT

rocker, cpte.

1шт.

14

708601R1

BUSHING,31.59mm ID x 35.08mm OD x 38.1mm L

BUSH

2шт.

15

708603R1

PLUG

oil

1шт.

16

708602R91

OIL SEAL

OIL SEAL

1шт.

17

708627R3

ARM

drop

1шт.

18

121326

WASHER,1"

LOCK, 1"

1шт.

19

708615R1

LOCK NUT

lock, 1" UNF

1шт.

20

3044452R1

SEAL

rubber

1шт.

708610R1

GASKET

JOINT, (Used with side cover)

1шт.

708624R1

GASKET

JOINT, (Used with end cover)

1шт.
