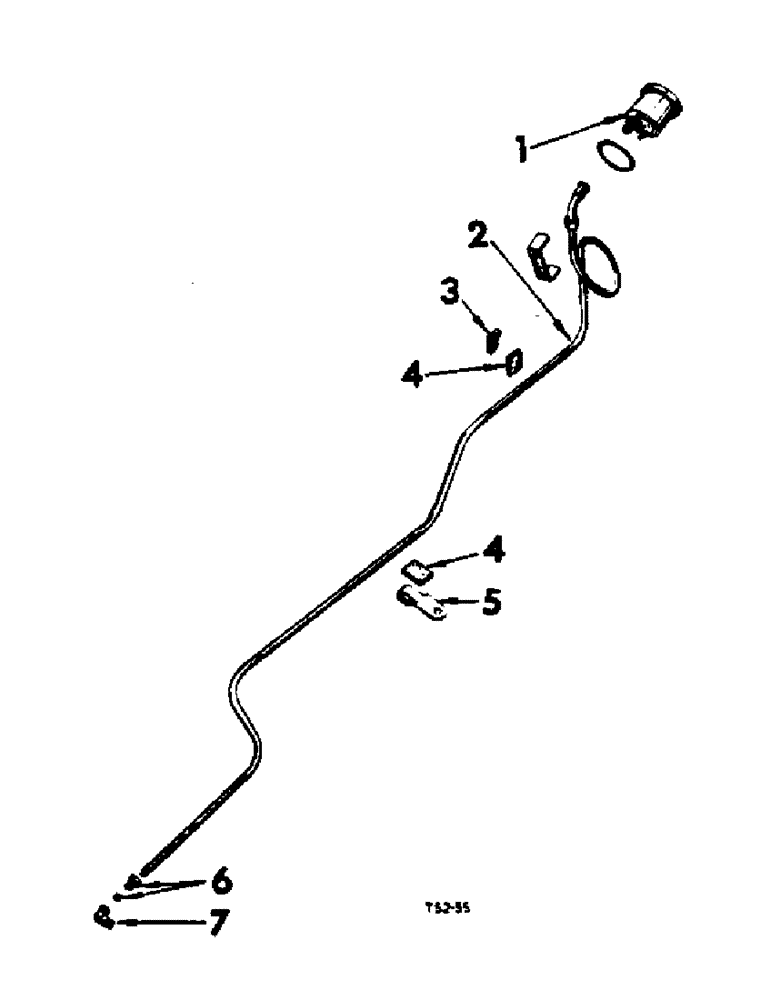

Запчасти Case IH B275 (063) - CHASSIS, OIL PRESSURE GAUGE (12) - CHASSIS

1

709166R91

ELECTRICAL GAUGE

GAUGE, oil pressure, B-275/8523 up

1шт.

1

702397R92

PACKAGE

GAUGE, oil pressure (Order 3040387R91), Serial Range: Up-B-275/8522

1шт.

2

3040385R91

PIPE

oil, engine to oil pressure gauge w/nut 3041151R11, B-275/8523 up

1шт.

704539R21

PIPE, oil, cpte., engine to oil pressure gauge w/two nuts and two olives, Serial Range: Up-B-275/8522

1шт.

3

60938D

CLIP, oil pipe, rear

1шт.

17408R1

BOLT, machine, hex. hd., 3/8" x 5/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

52728D

CUSHION, oil pipe (Oil pipe clip)

2шт.

5

708115R1

PLATE ASSY.

CLIP, oil pipe, front

1шт.

6

3041151R11

NUT

coupling, oil pipe, B-275/8523 up

1шт.

7

3040386R1

ELBOW

oil pipe to engine, B-275/8523 up

1шт.

7

60046D

ELBOW

oil pipe to engine, Serial Range: Up-B-275/8522

1шт.

7

30402D

ELBOW,90 Degree x 1/8" NPT x 7/16"-24

oil pipe to engine, Up to B-275/8522

1шт.

3040387R91

TUBE

PACKAGE, service, oil pressure gauge, Comprising

1шт.

3040386R1

ELBOW

1шт.

3040385R91

PIPE

1шт.
