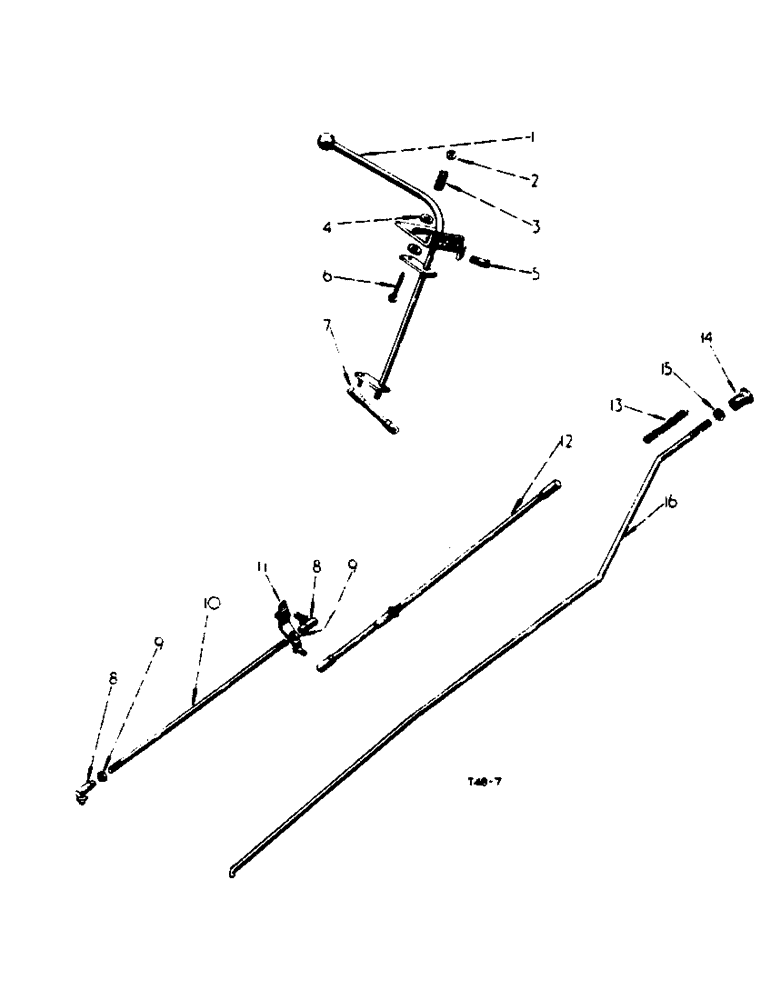

Запчасти Case IH B275 (062) - CHASSIS, DPA GOVERNOR CONTROLS, B-275/17162 UP (12) - CHASSIS

1

708432R93

LEVER

CONTROL, governor, cpte.

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

95-11028

WASHER,1/4"

plain, 9/32" I.D. x 5/8" O.D. x 16 ga.

1шт.

3

704686R1

SPRING

friction, governor control

1шт.

4

704681R2

FRICTION WASHER

friction, governor control

2шт.

5

225506

DRIVING SPROCKET,Slotted Fillister Hd, 1/4" - 28 x 1 1/2"

SCREW, machine, slotted-fillister-hd., 1/4" UNF x 1-1/2"

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

jam, hex., 1/4" UNF

1шт.

6

517194R1

PIN, std. headed, 1/4" x 1-3/8" long

1шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

1шт.

7

708431R91

ROD

control, control to cross shaft, cpte.

1шт.

8

3043081R91

CONNECTION

JOINT, ball

2шт.

9

114492

JAM NUT,Jam, 1/4"-28, G5

jam, 1/4" UNF

2шт.

10

708647R1

ROD

control, bell, Serial Range: crank-governor

1шт.

11

708327R11

NO LONGER SERVICED

CRANK, bell, governor control rod, cpte.

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x 16 ga.

1шт.

12

706209R91

ROD

control, cross shaft to bell crank, cpte.

1шт.

13

708325R2

SPRING

fuel shut-off control rod return

1шт.

14

706215R1

KNOB

fuel shut-off control rod

1шт.

15

706216R1

NUT

hex., 2 BA

1шт.

16

708324R2

ROD, control, fuel shut-off

1шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16" x 1/2"

2шт.

446160

WASHER,#10

plain, 7/32" I.D. x 7/16" O.D. x 16 ga.

1шт.

708647R12

ROD

control, bell crank to governor, cpte., w/two joints 3043081R91, two nuts 114492 and rod 708647R1

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

jam, hex., 1/4" UNF

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
