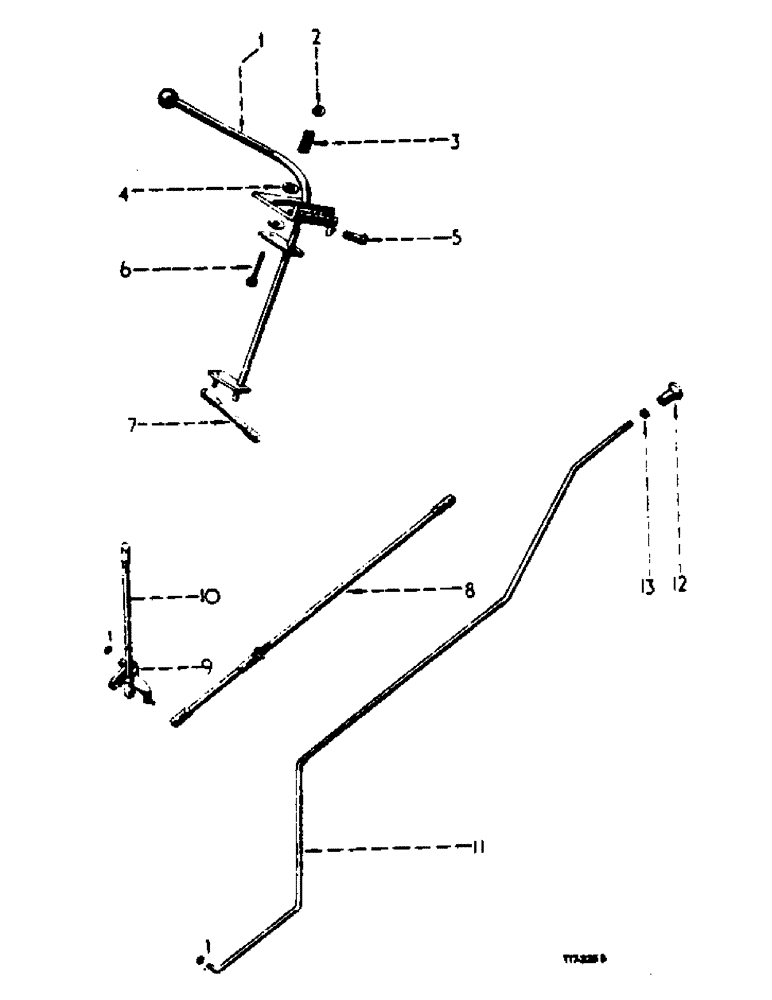

Запчасти Case IH B275 (061) - CHASSIS, PNEUMATIC GOVERNOR CONTROLS, UP TO B-275/17161 (12) - CHASSIS

1

708432R93

LEVER

CONTROL, governor, cpte.

1шт.

2

95-11028

WASHER,1/4"

plain, 9/32" I.D. x 5/8" O.D. x 16 ga.

1шт.

3

704686R1

SPRING

friction, governor control

1шт.

4

704681R1

WASHER

friction, governor control

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(Used with friction plate) Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

NLS

NO LONGER SERVICED

SCREW, machine, fill. hd., slotted, 1/4" UNF x 1-1/2"

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

jam, hex., 1/4" UNF

1шт.

6

517194R1

PIN, headed, 1/4" x 1-3/8" long

1шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

1шт.

7

708431R91

ROD

control (Control to cross shaft) cpte.

1шт.

8

706209R91

ROD

control (Cross shaft to bell crank) cpte.

1шт.

9

706210R11

BELL CRANK, governor control rod, cpte.

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x 16 ga.

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

10

706213R91

ROD, control (Bell crank to venturi) cpte.

1шт.

11

706214R1

ROD, conrol, fuel shut-off

1шт.

446160

WASHER,#10

plain, 7/32" I.D. x 7/16" O.D. x 16 ga.

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16" x 1/2"

1шт.

12

706215R1

KNOB

fuel shup-off control rod

1шт.

13

706216R1

NUT

hex., 2 BA

1шт.

704687R1

BRACKET, cross shaft, governor control, Serial Range: Up-B-275/8065

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Up to B-275/8065 Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

109084

NUT,1/4"-20, G5

Up to B-275/8065 1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , Up to B-275/8065 1/4"

2шт.

702264R1

KNOB

governor control lever, Serial Range: Up-B-275/10155

1шт.

706205R11

PLATE, friction, governor control cpte., Serial Range: Up-B-275/10155

1шт.
