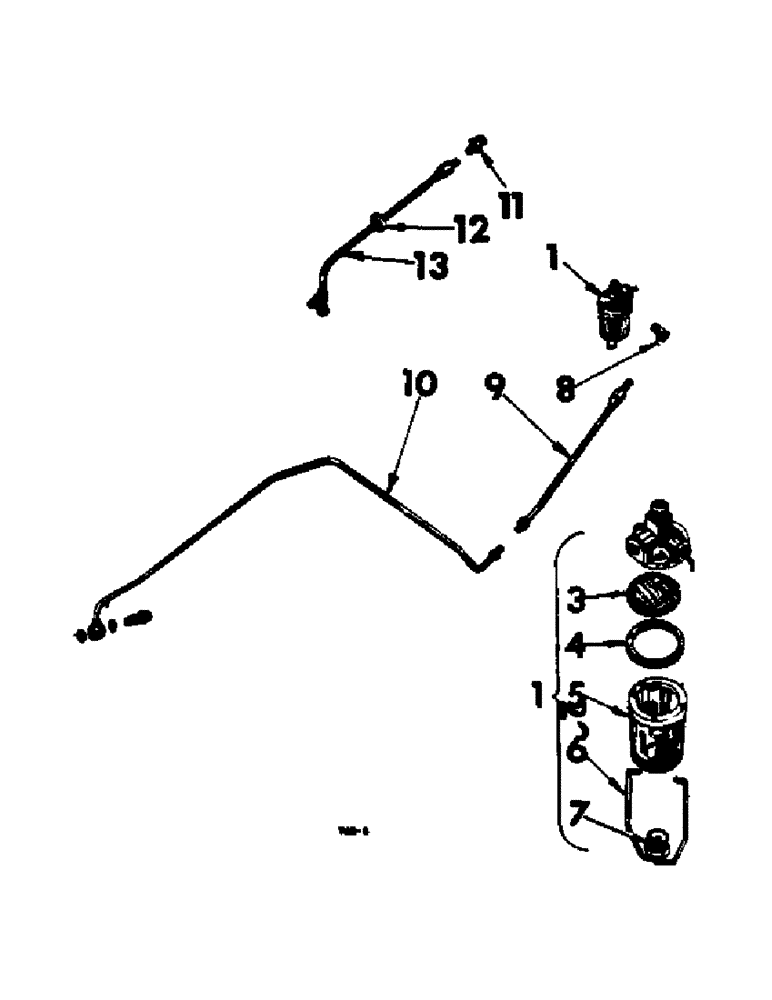

Запчасти Case IH B275 (058) - CHASSIS, WATER TRAP AND FUEL PIPES (12) - CHASSIS

1

705962R91

FILTER

TRAP, water, and fuel tap, cpte. (Illustrated), Comprising

1шт.

705887R1

BOWL

1шт.

705884R1

CAP

1шт.

707362R1

TOP

CASTING

1шт.

705883R91

CLIP

1шт.

705885R1

FILTER SCREEN

SCREEN

1шт.

707361R1

SLEEVE

1шт.

706133R91

COCK

TAP

1шт.

Not supplied separately.

1шт.

705886R1

SEAL

WASHER

1шт.

708817R91

TRAP, water, and fuel tap, cpte., w/bowl 702945R1, seal 702946R91 and cover 3040145R91

1шт.

2

TAP, assy., cpte. (Order 705962R91)

1шт.

707361R1

SLEEVE

rubber, for tap assy.

1шт.

3

705885R1

FILTER SCREEN

SCREEN, gauze

1шт.

4

705886R1

SEAL

WASHER, joint, for filter bowl

1шт.

5

705887R1

BOWL

filter, glass

1шт.

6

705883R91

CLIP

retainer, assy.

1шт.

7

705884R1

CAP

screw, for bowl

1шт.

8

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

flared tube, 1/4" 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.

8

118754

ELBOW

flared tube, 5/16", 90 degrees

1шт.

9

3043229R91

PIPE

fuel, water trap to lift pump, rear, cpte., B-275/17162 up

1шт.

10

3043228R91

PIPE

fuel, water trap to lift pump, front, cpte., B-275/17162 up

1шт.

708296R1

CONNECTOR, ELEC

BOLT, banjo

1шт.

708297R1

GASKET

WASHER, banjo bolt

2шт.

706229R91

PIPE, fuel, water trap to lift pump, cpte., Serial Range: Up-B-275/17161

1шт.

704694R1

GROMMET

fuel pipe

1шт.

11

704701R1

UNION

fuel tank and fuel return pipe

1шт.

12

704700R1

GROMMET

fuel return pipe

1шт.

13

708994R91

PIPE

fuel return, B-275/17162 up

1шт.

13

704698R92

PIPE, fuel return, Serial Range: Up-B-275/17161

1шт.

702945R1

BOWL

glass

1шт.

704695R1

LATCH ASSY.

CLIP, fuel pipe

1шт.

52728D

CUSHION, fuel pipe

1шт.

3040145R91

COVER, assy., Comprising

1шт.

3040146R1

COVER

1шт.

700190R3

GASKET

1шт.

700555R1

RING

sealing

1шт.

3040148R1

SCREEN

1шт.

706237R1

SCREW

1шт.

3040147R91

WHEEL AND STEM, assy.

1шт.

702946R91

SEAL

ball and bowl, assy.

1шт.
