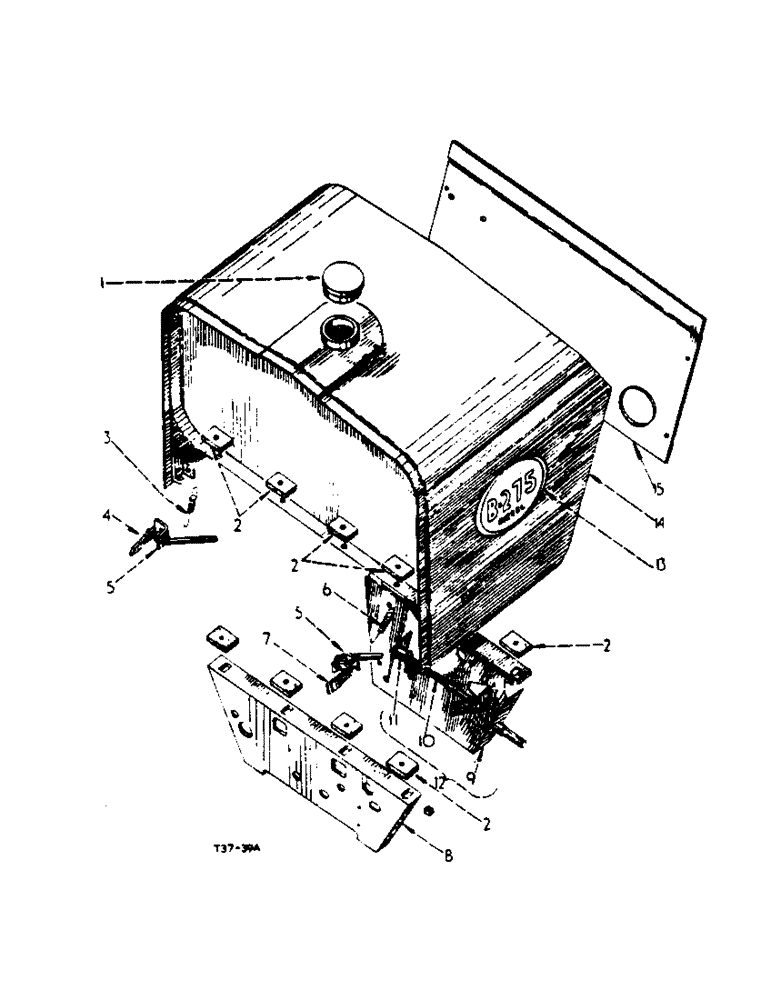

Запчасти Case IH B275 (057) - CHASSIS, FUEL SYSTEM (12) - CHASSIS

1

707822R92

NO LONGER SERVICED

CAP, fuel tank filller

1шт.

2

704520R2

PAD

rubber, fuel tank support

14шт.

3

705591R1

SPRING

hood latch, R.H.

1шт.

4

704523R12

LATCH

hood, cpte., R.H.

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

Q397

WASHER

plain, 11/32" I.D. x 3/4" O.D. x 16 ga.

1шт.

5

704525R1

BRACKET, hood, cpte., R.H.

2шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

machine, slotted, rd. hd. 1/4" x 5/8"

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

704526R1

SPRING

hood latch, L.H.

1шт.

7

704522R12

LATCH

hood, cpte., L.H.

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

Q397

WASHER

plain, 11/32" I.D. x 3/4" O.D. x 16 ga.

1шт.

8

707534R21

SUPPORT, scuttle front, cpte.

1шт.

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

hex. hd., 7/16" x 7/8"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

9

708319R31

SUPPORT, scuttle rear, cpte., B-275/17162 up

1шт.

9

704527R71

SUPPORT, scuttle rear, cpte., Serial Range: Up-B-275/17161

1шт.

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

hex. hd., 7/16" x 7/8"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

10

706207R92

CROSS SHAFT

SHAFT, cross (Order 706207R93 w/spacer 703952R2), Serial Range: B-275/8066-B-275/11205

1шт.

10

706207R93

SHAFT

cross, B-275/11206 up and B-275/518 I up

1шт.

11

703952R2

SPACER

B-275/11206 up and B-275/518 I up

1шт.

12

3040911R93

SUPPORT, scuttle, rear, and cross shaft, cpte., w/shaft 706207R93, support 708319R31 and spacer 703952R2, B-275/17162 up

1шт.

12

3040352R93

SUPPORT, scuttle, rear, and cross shaft, cpte., w/shaft P/N 706207R93 support P/N 704527R71 and spacer P/N 703952R2, Serial Range: B-275/11206-17161

1шт.

Includes: B275/8392/3/6/7/8, 8400/1/2/3, 8828, 9062, 100078, 10186 to 10191, 10275/6, 10534/5, 10598, 10601 to 10604, 10623, 10625/6, 10631/2, 10638/9, 10646 to 10651, 10665 to 10680, 10709/10, 10712 to 10719, 10748, 10767/8, 10770 to 10798, 10800, 10802, 10863 to 10872, 10902/3, 10918, 10920/1/2, 10943 to 10948, 10976 to 10979, 10981/2/3, 10985 to 10988, 11008, 11010 to 11014, 11016, 11018/19/20, 11023 to 11037, 11041 to 11069, 11073 to 11088, 11092, 11094 to 11111, 11113 to 11141, 1144/5/6, 11148, 11152 t

1шт.

12

3040352R92

SUPPORT, scuttle, rear, and cross shaft, cpte., w/shaft 706207R92 and support 704527R71 (Order 3040352R93), Serial Range: B-275/8066-11205

1шт.

13

1026245R1

PRODUCT GRAPHIC

TRANSFER, B-275 diesel (Order transfer package, 751642R91)

2шт.

14

751615R91

SCUTTLE, fuel tank and cap 707822R92, B-275/17162 up

1шт.

14

704505R92

SCUTTLE, fuel tank and cap 707822R92, Serial Range: Up-B-275/17161

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

7шт.

705151R1

NUT, fuel tank

7шт.

706281R1

WASHER, lock, hold down bolt

7шт.

15

708317R11

PANEL, scuttle, cpte., B-275/17162 up

1шт.

15

704521R31

PANEL, scuttle, cpte., Serial Range: Up-B-275/17161

1шт.

704444R2

SCREW

rd. hd., 1/4" BSW x 1/2"

4шт.

704445R1

NUT

spire speed, 1/4" BSW

4шт.

3041388R1

GASKET

fuel tank filler cap

1шт.
