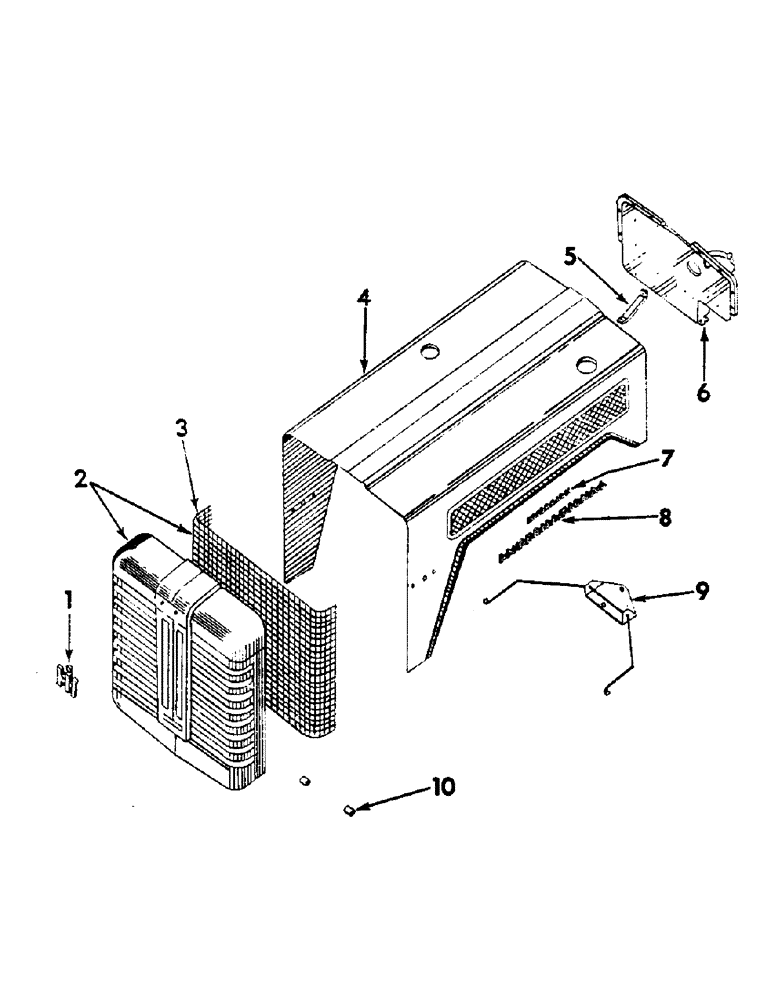

Запчасти Case IH B275 (055) - CHASSIS, HOOD AND GRILLE (12) - CHASSIS

1

704143R3

IDENTITY PLATE

PLATE, "I.H." monogram (Order package, 707333R92), Serial Range: Up-B-275/7289

1шт.

110634

NUT, sq., machine screw, no. 10

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

446160

WASHER,#10

plain, 7/32" I.D. x 7/16" O.D. x 18 ga.

2шт.

1

704143R4

DECAL

PLATE, "I.H." monogram, B-275/7290 up

1шт.

3040851R1

CLIP

attaching, plate

2шт.

2

704139R92

NO LONGER SERVICED

GRILLE, radiator w/screen, 704142R2

1шт.

3

704142R2

SCREEN

radiator grille

1шт.

4

709524R94

HOOD AND NAMEPLATES, cpte., Comprising

1шт.

704133R3

PLATE

2шт.

3042024R1

PLATE

2шт.

709475R1

PLATE

10шт.

3040850R1

RIVET

10шт.

134532

DISC

NUT, sq., machine screw, no. 6

18шт.

121839

SCREW,Sl Rnd Hd, #6 - 32 x 5/16"

machine, slotted rd. hd., no. 6 x 5/16"

18шт.

5

706225R2

BRACKET, hood, guide plate

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

3040829R91

PLATE, hood guide, cpte. (Tractor with foot accelerator)

1шт.

6

3040828R91

PLATE, hood guide, cpte.

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

704133R3

PLATE

name, "Mc Cormick"

2шт.

709475R1

PLATE, back

4шт.

3040850R1

RIVET

pop

4шт.

8

3042024R1

PLATE

name, "International"

2шт.

709475R1

PLATE, back

6шт.

3040850R1

RIVET

pop

4шт.

9

704144R21

STAY, hood, cpte.

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

704135R1

SPACER

hood pivot

2шт.

429618

BOLT

hex. hd., 7/16" UNF x 1-3/16"

2шт.

615063R1

WASHER

plain, 15/32" I.D. x 7/8" O.D. 16 ga.

2шт.

707333R92

SYMBOLS

PACKAGE, service, I.H. monogram, Up to B-275/7289, Comprising

1шт.

704143R4

DECAL

MONOGRAM I.H.

1шт.

3040851R1

CLIP

2шт.
