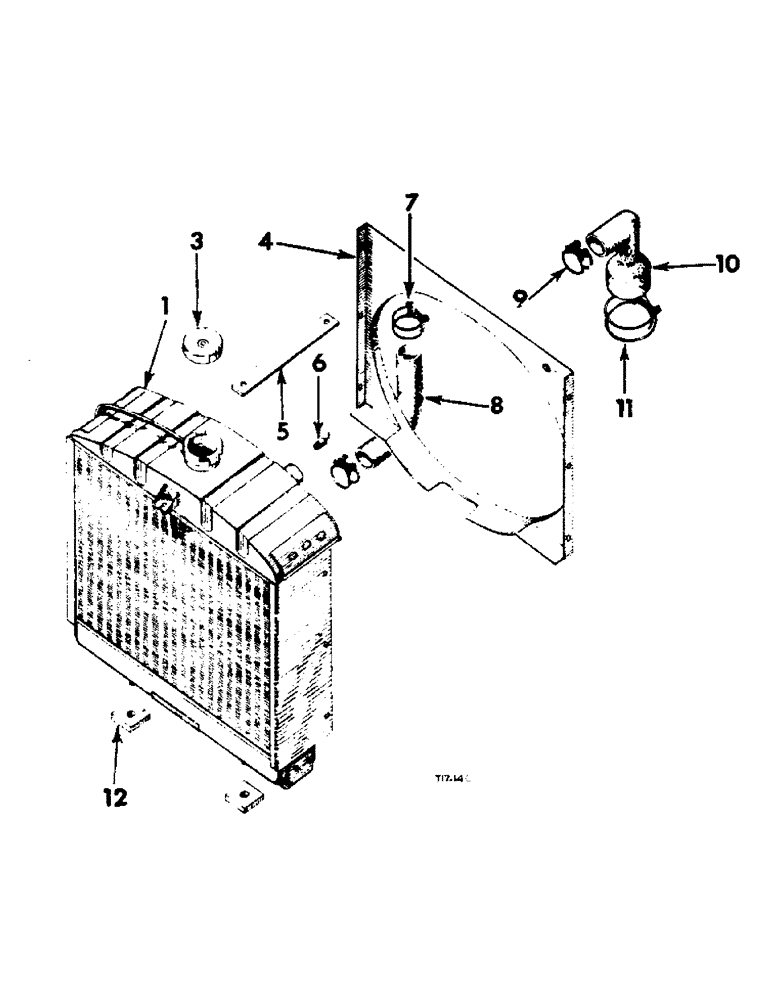

Запчасти Case IH B275 (054) - CHASSIS, RADIATOR AND CONNECTIONS (12) - CHASSIS

1

3041403R91

RADIATOR

WITH FAN HOUSING, cpte., w/cap 707338R91, gasket 707294R1, housing 705918R91, and six screws 705920R1 (Note A)

1шт.

1

3041405R91

RADIATOR WITH FAN HOUSING, cpte., w/cap 707338R91, gasket 705294R1, housing 705918R91, and six screws 705920R1 (Increased capacity cooling) (Note B)

1шт.

15090R1

BOLT, carriage, sq. neck, 7/16" x 2-1/4"

2шт.

271500

SOCKET

hex., 7/16"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

3

707338R91

CAP

radiator

1шт.

707294R1

GASKET, radiator cap

1шт.

4

705918R91

HOUSING

fan

1шт.

705920R1

SCREW, rd. hd., 1/4" x 3/8"

6шт.

5

704285R1

BRACE, radiator, Serial Range: Up-B-275/15692

1шт.

5

3041404R1

BRACE, radiator, B-275/15693 up

1шт.

5

707317R1

BRACE, radiator (Increased capacity cooling), Serial Range: Up-B-275/15692

1шт.

5

3041406R1

BRACE, radiator (Increased capacity cooling) B-275/15693 up

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

106794

VALVE

COCK, drain, type "A", 1/4"

1шт.

7

995219R1

CLIP

CLAMP, radiator outlet hose, 1-3/4"

2шт.

8

704287R2

RADIATOR HOSE,1.38" ID x 6.38", SAE 20R4 CLASS R

Outlet 1.38" ID x 6.38", SAE 20R4 CLASS R

1шт.

9

995220R1

CLAMP

radiator inlet hose, 2"

1шт.

10

704289R1

FLEXIBLE HOSE

HOSE, radiator inlet

1шт.

11

995223R1

CLAMP

CALMP, radiator inlet hose, 3"

1шт.

12

704284R2

INSULATOR BLOCK

PAD, radiator

2шт.
