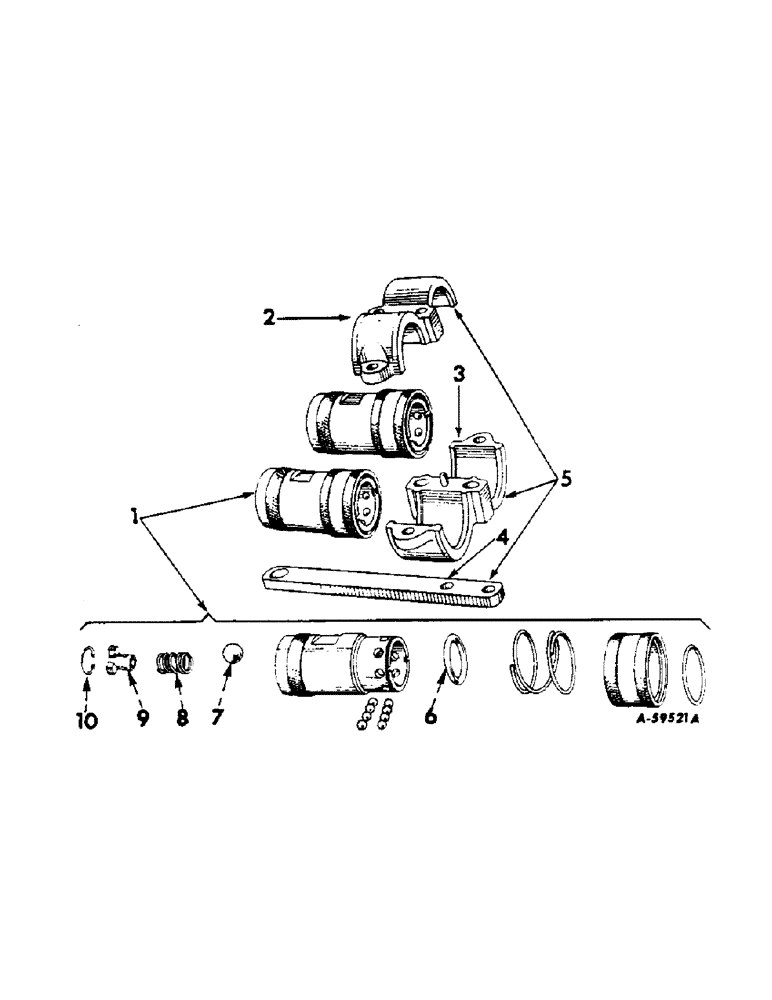

Запчасти Case IH B275 (115) - HYDRAULIC ATTACHMENTS, BREAKAWAY COUPLING (07) - HYDRAULIC SYSTEM

374778R91

COUPLING, breakaway, cpte.

1шт.

1

374783R91

COUPLING

self-sealing, female, cpte.

2шт.

2

371115R1

CLAMP

CALMP, self-sealig coupling frame

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

371114R1

CLAMP

FRAME, self-sealing coupling

1шт.

4

37116R1

BRACKET, self-sealing coupling frame

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, cap, hex-hd., cd-pltd., 5/16" x 1-1/2"

2шт.

5

371110R91

FRAME

self-sealing coupling, cpte.

1шт.

6

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

self-sealing coupling (13/16 x 1-1/16 x 1/8")

2шт.

7

17017R1

BALL,17/32" Dia

check, self-sealing coupling

2шт.

8

371121R1

SPRING, retaining, check ball

2шт.

9

374789R1

RETAINER, check ball spring

2шт.

10

374790R1

SNAP RING,0.688", Int, #68

Ring, Snap, 0.688", Int, #68

2шт.
