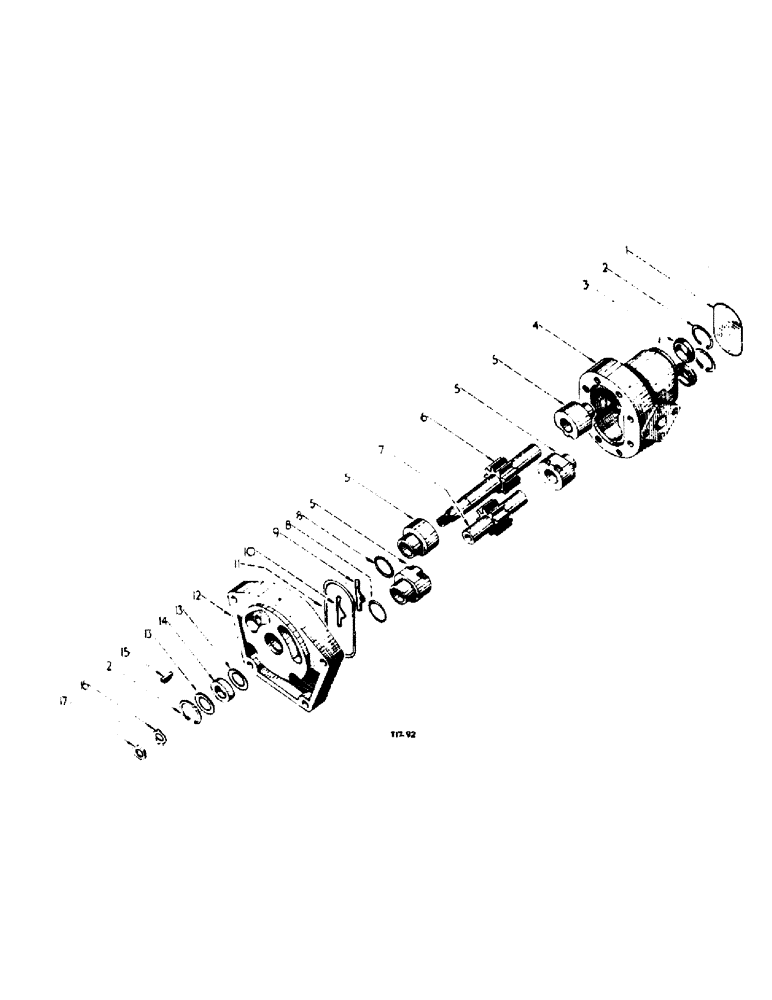

Запчасти Case IH B275 (108) - HYDRAULIC ATTACHMENTS, HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

704330R91

HYDRAULIC PUMP

PUMP, hydraulic, cpte.

1шт.

1

706073R1

PLATE, name

1шт.

706076R1

SCREW, self-tapping

2шт.

2

706066R1

RETAINER

CIRCLIP, 29 MM

3шт.

3

706049R1

PLUG, sealing

2шт.

4

706047R1

BODY

pump

1шт.

706070R1

O-RING

"O" RING, (Port adaptor outlet)

1шт.

706070R1

O-RING

"O" RING, (Port adaptor inlet)

1шт.

706074R1

SCREW

(Allen), 1/4" BSF, (Pressure manifold)

2шт.

706075R1

SCREW

(Allen), 5/16" BSF, (Suction manifold)

2шт.

7060534R1

WASHER, spring, (Grover)

2шт.

706072R1

WASHER

spring, (Grover)

2шт.

5

706057R91

BEARING

4шт.

706065R1

SRPING

4шт.

6

706058R1

GEAR, drive

1шт.

7

706059R1

GEAR, driven

1шт.

8

706054R1

GASKET

"O" RING

4шт.

9

706060R1

PLATE, pressure relief, or

1шт.

9

706061R1

PLATE, pressure relief, or

1шт.

9

706062R1

PLATE, pressure relief, or

1шт.

9

706063R1

PLATE, pressure relief

1шт.

10

706056R1

O-RING

"O" RING, pressure relief plate

1шт.

11

706055R1

"O" RING, body

1шт.

12

706048R91

COVER, assy.

1шт.

706052R1

SCREW, 5/16"

6шт.

706064R1

SCREW, 5/16" (Special)

2шт.

706053R1

SPRING WASHER

spring, (Grover)

8шт.

13

706050R1

WASHER, oil seal

2шт.

14

706051R91

RETAINER

OIL SEAL

1шт.

15

706067R1

KEY

Woodruff

1шт.

16

706069R1

LOCK WASHER

WASHER, lock

1шт.

17

706068R1

LOCK NUT

NUT, lock

1шт.
