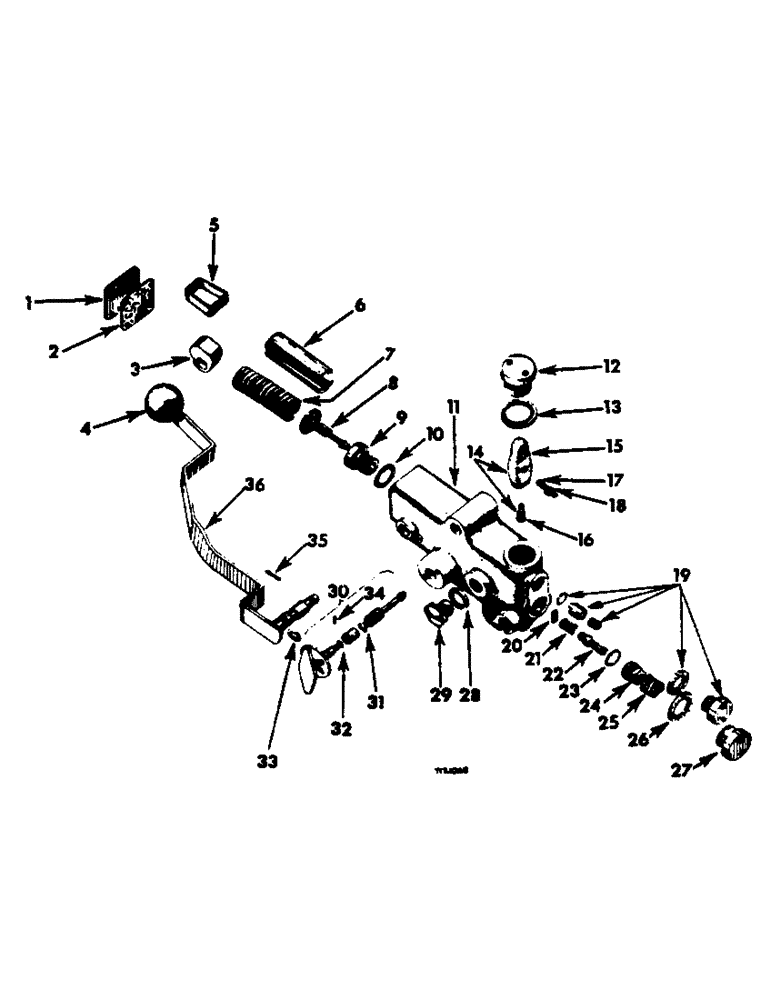

Запчасти Case IH B275 (106) - HYDRAULIC ATTACHMENTS, CONTROL VALVE (07) - HYDRAULIC SYSTEM

704624R93

VALVE, control, cpte.

1шт.

For service replacement on B-275 tractors up to 16888, also order strip P/N 3040078R1.

1шт.

1

706006R1

COVER

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

706007R1

GASKET

1шт.

3

706002R1

CAM

1шт.

5

706001R1

STIRRUP, cam

1шт.

6

707353R1

ARM

STIRRUP, spring

1шт.

7

705999R2

SPRING, pressure control

1шт.

8

707352R2

VALVE

relief

1шт.

For service replacement on B-275 tractors up to 16888, also order strip P/N 3040078R1.

1шт.

9

706575R1

VALVE

SEAT, relief valve

1шт.

10

705996R1

WASHER

copper

1шт.

11

BODY order: valve, P/N 704624R93

1шт.

12

706025R1

PLUG

1шт.

13

706026R1

GASKET

WASHER, (Dowty)

1шт.

14

706008R91

LEVER

intercouple, S.A., cpte. w/lever P/N 706009R1 and ball P/N 706010R1

1шт.

15

706009R1

LEVER, intercouple

1шт.

16

706010R1

BALL, end

1шт.

17

222449

SCREW

adjusting

1шт.

18

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

19

706011R91

LOCK VALVE

DASHPOT, S.A.

1шт.

20

706022R1

STOP

1шт.

21

706021R1

SPRING

1шт.

22

706020R1

VALVE

non-return

1шт.

23

706018R1

WASHER

cppper

1шт.

24

706017R1

SEAT

non-return valve

1шт.

25

706019R1

SPRING

1шт.

26

706026R1

GASKET

WASHER, (Dowty)

1шт.

27

706025R1

PLUG

1шт.

28

706016R1

WASHER

(Dowty)

1шт.

29

706027R1

PLUG

1шт.

30

706576R91

VALVE

isolating, sub assy., cpte., Comprising

1шт.

NSS

NOT SOLD SEPARAT

BUSH

1шт.

706585R1

RING

"O" RING

1шт.

706584R1

GASKET

"O" RING

1шт.

706583R1

STOP

PLATE

1шт.

Not supplied separately.

1шт.

706035R1

PLUG

1шт.

706036R1

PLUG

1шт.

706586R1

PIN

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

706581R1

VALVE

VAVLE

1шт.

Not supplied separately.

1шт.

706578R91

SPINDLE

VALVE

1шт.

Not supplied separately.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

31

706585R1

RING

"O" RING

1шт.

32

706584R1

GASKET

"O" RING

1шт.

33

706034R1

O-RING

"O" RING, shaft and lever

1шт.

34

706586R1

PIN

mills

1шт.

35

706005R1

PIN

1шт.

36

706003R92

LEVER

SHAFT, and lever sub assy., cpte. w/knob P/N 706004R1 (Note A)

1шт.

For service replacement on B-275 tractors up to 16888, also order strip P/N 3040078R1.

1шт.
