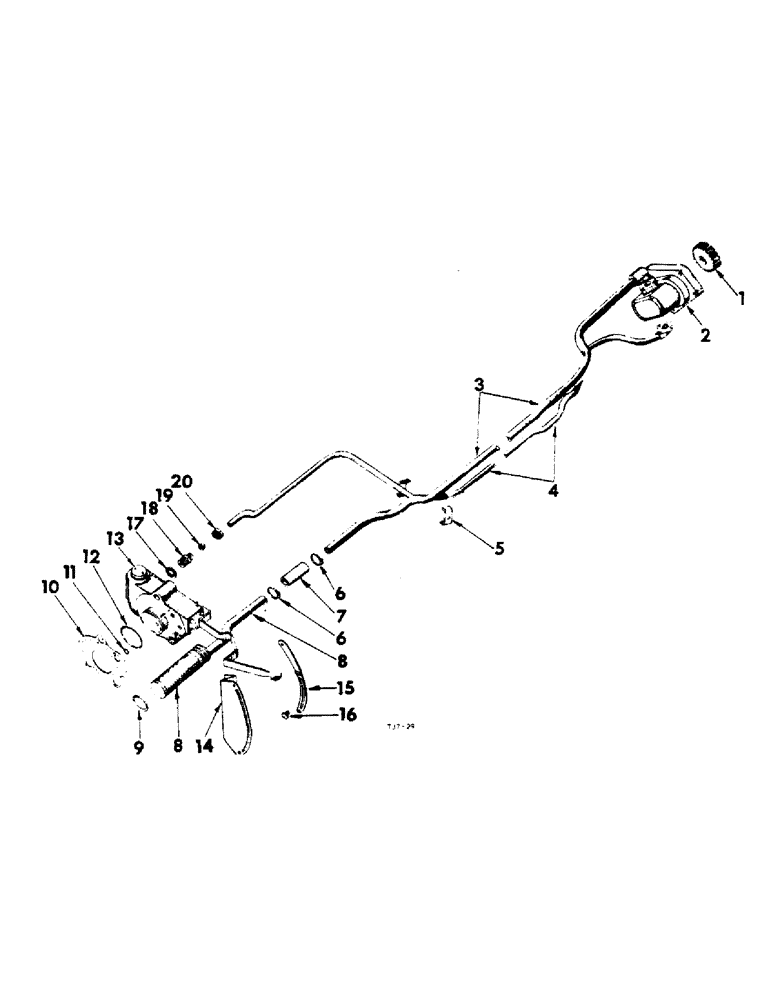

Запчасти Case IH B275 (103) - HYDRAULIC ATTACHMENTS, HYDRAULIC LIFT ATTACHMENT, HYDRAULIC PUMP & CONTROL VALVE (07) - HYDRAULIC SYSTEM

HYDRAULIC LIFT, attachment (Factory application), Comprising

1шт.

HYDRAULIC PUMP AND CONTROL VALVE

1шт.

HYDRAULIC LIFT (See detail list)

1шт.

1

704331R1

GEAR

PINION, hydraulic pump

1шт.

2

704330R91

HYDRAULIC PUMP

PUMP, hydraulic, cpte. (See detail list)

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

3шт.

271486

SCREEN

hex. hd., 2-5/8" x 5/16"

1шт.

3

704332R21

MANIFOLD

suction, cpte.

1шт.

4

704334R21

MANIFOLD

pressure, cpte., w/manifold 704334R2

1шт.

5

706405R1

CLAMP

hydraulic pipe

2шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

705937R91

CLIP

CLAMP, hose

2шт.

7

704741R1

HOSE,0.81" ID x 2.50"

Connecting, Suction Filter 0.81" ID x 2.50"

1шт.

8

704342R91

FILTER

suction, cpte.

1шт.

9

704348R1

O-RING,0.139" Thk x 1.687" ID, Cl 5

"O" RING, suction filter, or

1шт.

9

706087R1

O-RING

"O" RING, suction filter, or

1шт.

9

706088R1

O-RING

"O" RING, suction filter

1шт.

10

704625R3

GASKET

control valve

1шт.

11

704754R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

"O" RING, gasket, control valve, or

1шт.

11

704755R1

GASKET

"O" RING, gasket, control valve, or

1шт.

11

704756R1

O-RING

"O" RING, gasket, control valve

1шт.

12

704341R1

O-RING

"O" RING, cylinder, or

1шт.

12

706083R1

RING

"O" RING, cylinder, or

1шт.

12

706084R1

O-RING

"O" RING, cylinder

1шт.

13

704624R93

VALVE, control, cpte. with lever, (Note A) (See detail list)

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

hex. hd., 3" x 5/8", Course Threads

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

hex. hd., 2-1/2" x 5/8"

1шт.

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

hex. hd., 1-7/8" x 5/8"

1шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

3шт.

14

705233R1

SPRING

QUADRANT, control lever

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

15

705224R2

STRIP, quadrant, Serial Range: Up-B-265/16888

1шт.

15

3040078R1

STRIP

quadrant, B-275/16887 up

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

hex. hd., 3/4" x 5/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

2шт.

16

705223R1

STOP, lowering speed, Serial Range: Up-B-275/16888

1шт.

126032

WING NUT,3/8"-16

NUT, wing, type A

1шт.

17

704337R1

SEALING WASHER

WASHER, sealing, 1/2" BSP

1шт.

18

704336R1

COUPLING, BREAK AWAY

COUPLING, (Body only) male, parallel, 1/2" O.D. x 1/2" BSP

1шт.

19

705519R1

RING

sealing, (Ermeto)

1шт.

20

705520R1

NUT,0.69" Length

(Ermeto)

1шт.
