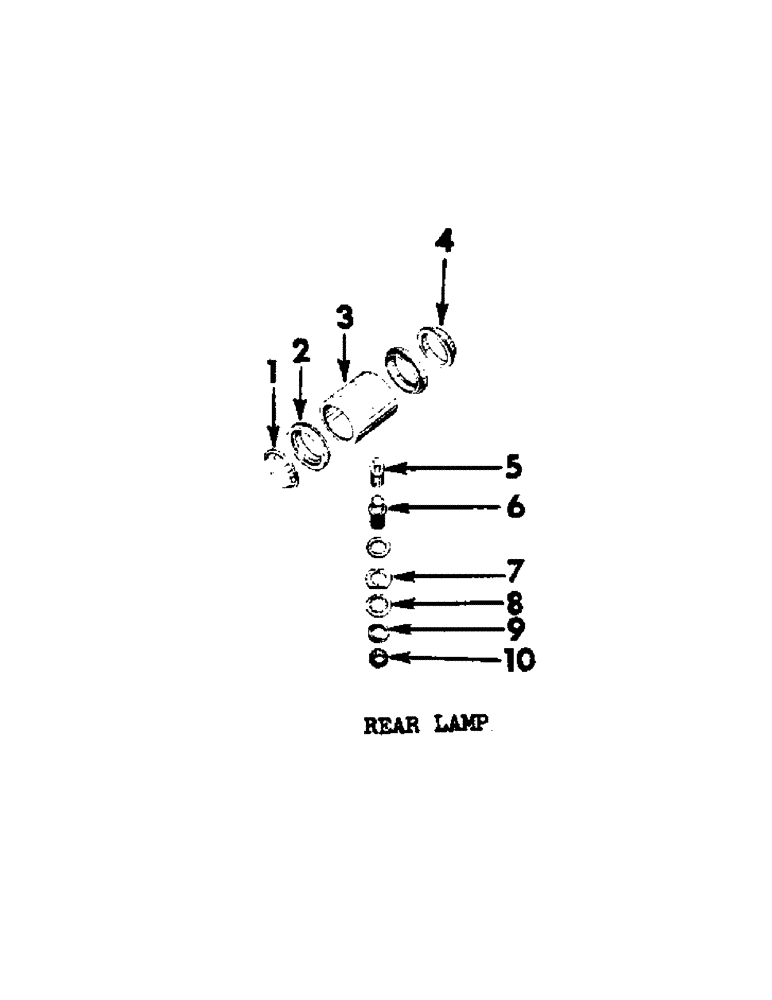

Запчасти Case IH B275 (052[A]) - ELECTRICAL SYSTEM, REAR LAMP (06) - ELECTRICAL SYSTEMS

708348R91

LIGHT ASSY.

LAMP, side and rear (12V - 6W)

1шт.

1

706114R1

LENS

red

1шт.

2

708419R1

GASKET

MOUNT, lens

2шт.

3

708421R1

BODY, lamp

1шт.

4

708420R1

LENS

clear

1шт.

5

707022R1

BULB, (12V - 6W)

1шт.

6

707127R1

BRACKET

SHELL, adaptor

1шт.

7

707128R1

NUT

securing, bulb holder

1шт.

8

707129R1

WASHER

Shakeproof

1шт.

9

707134R1

WASHER

NUT, lamp fixing

1шт.

10

707131R1

NUT

coupling, shell

1шт.
