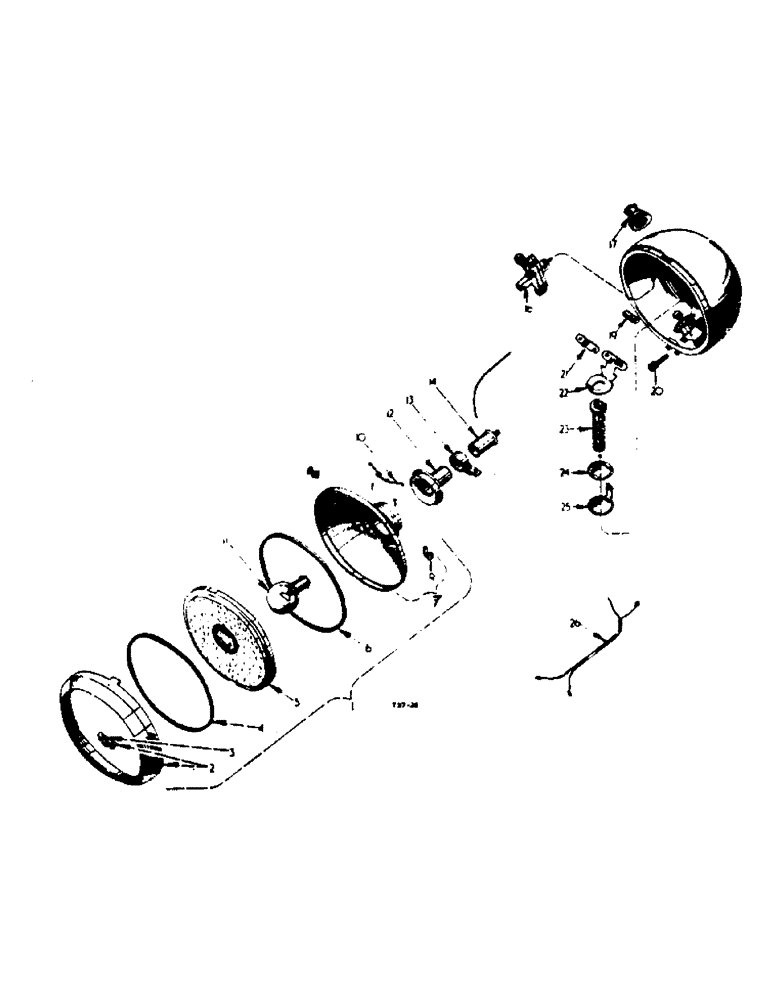

Запчасти Case IH B275 (050) - ELECTRICAL SYSTEM, PLOUGH LAMP (06) - ELECTRICAL SYSTEMS

705259R93

PLOUGH LAMP, 12V - 24W

1шт.

1

705806R91

DOOR

AND LENS, assy., Comprising

1шт.

705775R91

DOOR

1шт.

700447R1

DOOR SEAL

1шт.

702475R1

GASKET

1шт.

705807R1

LENS

1шт.

705776R91

DEFLECTOR

REFLECTOR

1шт.

702476R1

BEARING CARRIER

RETAINER

6шт.

2

705775R91

DOOR AND CATCH, assy, w/catch 702474R1

1шт.

3

702474R1

NO LONGER SERVICED

CATCH, door, bottom

1шт.

4

700447R1

DOOR SEAL

, Serial Range: lens-door

1шт.

5

705807R1

LENS

1шт.

6

702475R1

GASKET

, Serial Range: reflector-lens

1шт.

7

705776R91

DEFLECTOR

REFLECTOR, assy., w/two pins 705789R1, reflector 705786R1 and two springs 705788R1

1шт.

9

705788R1

SPRING, securing

2шт.

705789R1

PIN, split

2шт.

10

702476R1

BEARING CARRIER

RETAINER, lens

6шт.

11

705824R91

LAMP

BULB, 12V - 24W

1шт.

12

705779R91

TUBE, reflector, and centre, assy.

1шт.

13

705781R91

RING, clamp, assy., Comprising

1шт.

702473R1

RING

1шт.

702468R1

SCREW

1шт.

705794R1

SCREW

1шт.

705795R1

WASHER

1шт.

14

702483R91

ADAPTOR, assy.

1шт.

16

705818R91

SWITCH

multi-circuit

1шт.

705821R1

NUT

, Serial Range: (Switch-body)

4шт.

705819R1

SCREW, Serial Range: (Switch-body)

2шт.

705820R1

WASHER, Serial Range: (Switch-body)

2шт.

17

705822R1

COVER, rubber, switch knob

1шт.

19

702472R1

NUT

barrel

1шт.

20

702478R1

SCREW

door

1шт.

21

702467R1

CLAMP, cable

1шт.

22

705803R1

RETAINER, bolt

1шт.

702468R1

SCREW, cable clamp

2шт.

23

705812R1

BOLT

1шт.

24

705802R1

WASHER, seating

1шт.

25

705801R1

STRIP, earth

1шт.

26

705811R91

CABLE AND GROMMET, assy.

1шт.

705794R1

SCREW, for cable

1шт.

705795R1

WASHER, for cable

1шт.
