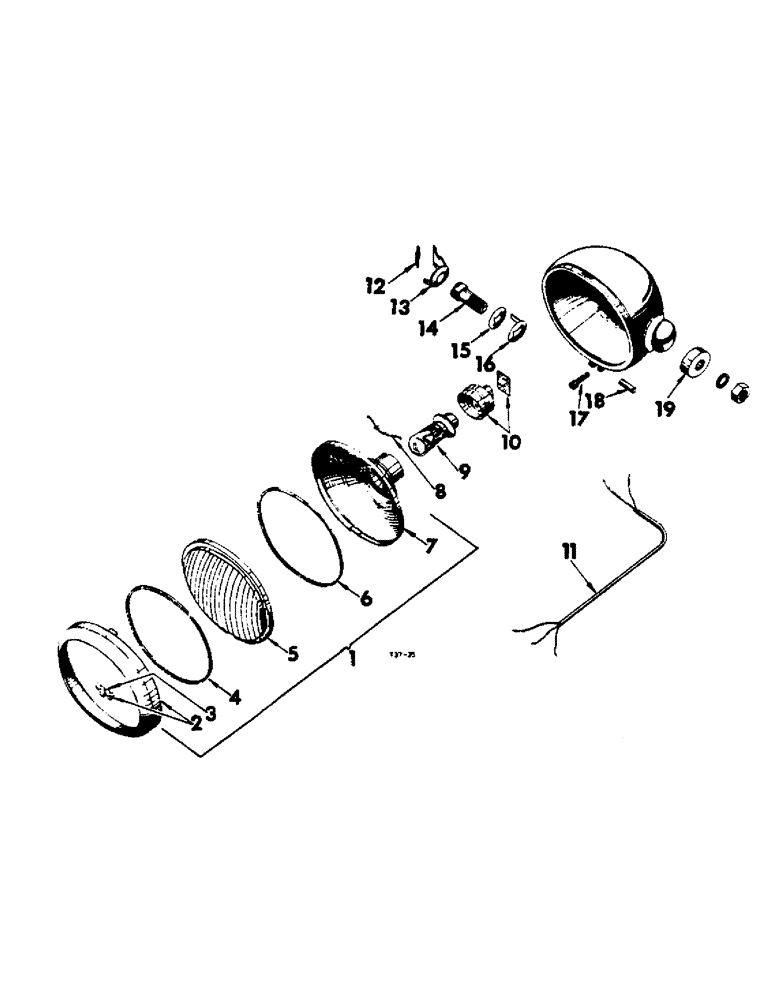

Запчасти Case IH B275 (048) - ELECTRICAL SYSTEM, HEADLAMP (06) - ELECTRICAL SYSTEMS

707891R91

LAMP BASE

(A) HEADLAMP, (12V - 24W) R.H. (Illustrated)

1шт.

707890R91

HEADLAMP

(B) HEADLAMP, (12V - 24W) L.H. (Not illustrated)

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

1шт.

1

708510R91

DOOR AND LENS, assy., Comprising

1шт.

705775R91

DOOR

1шт.

702475R1

GASKET

1шт.

700447R1

DOOR SEAL

1шт.

700446R1

LENS

1шт.

707830R91

NO LONGER SERVICED

REFLECTOR

1шт.

702476R1

BEARING CARRIER

RETAINER

6шт.

2

705775R91

DOOR AND CATCH, assy., w/catch 702474R1

1шт.

3

702474R1

NO LONGER SERVICED

CATCH, door, bottom

1шт.

4

700447R1

DOOR SEAL

, Serial Range: (Lens-door)

1шт.

5

700446R1

LENS

1шт.

6

702476R1

BEARING CARRIER

GASKET, Serial Range: (Reflector-lens)

1шт.

7

707830R91

NO LONGER SERVICED

REFLECTOR AND BULB TUBE, assy.

1шт.

8

702476R1

BEARING CARRIER

RETAINER, lens

6шт.

9

708512R91

LAMP

BULB, 12V - 24/24W, pre-focus, Single Contact

1шт.

9

C5NN13009A

BULB

12V, Dual Contact

1шт.

10

708511R91

CABLE AND CONTACT, assy., Comprising

1шт.

708515R91

CABLE

1шт.

708518R1

CONTACT

2шт.

708516R1

HOLDER

1шт.

708521R1

SHELL

1шт.

708517R1

SPRING

2шт.

708519R1

WASHER

1шт.

707838R1

WASHER

1шт.

11

708515R91

CABLE

1шт.

12

702467R1

CLIP, cable

1шт.

13

705803R1

RETAINER, bolt

1шт.

702468R1

SCREW, cable clip

2шт.

14

705805R1

BOLT, fixing

1шт.

15

705802R1

WASHER, seating

1шт.

16

705801R1

STRIP, earth

1шт.

17

702478R1

SCREW

door

1шт.

18

702472R1

NUT

barrel

1шт.

19

705785R1

WASHER, cupped

1шт.
