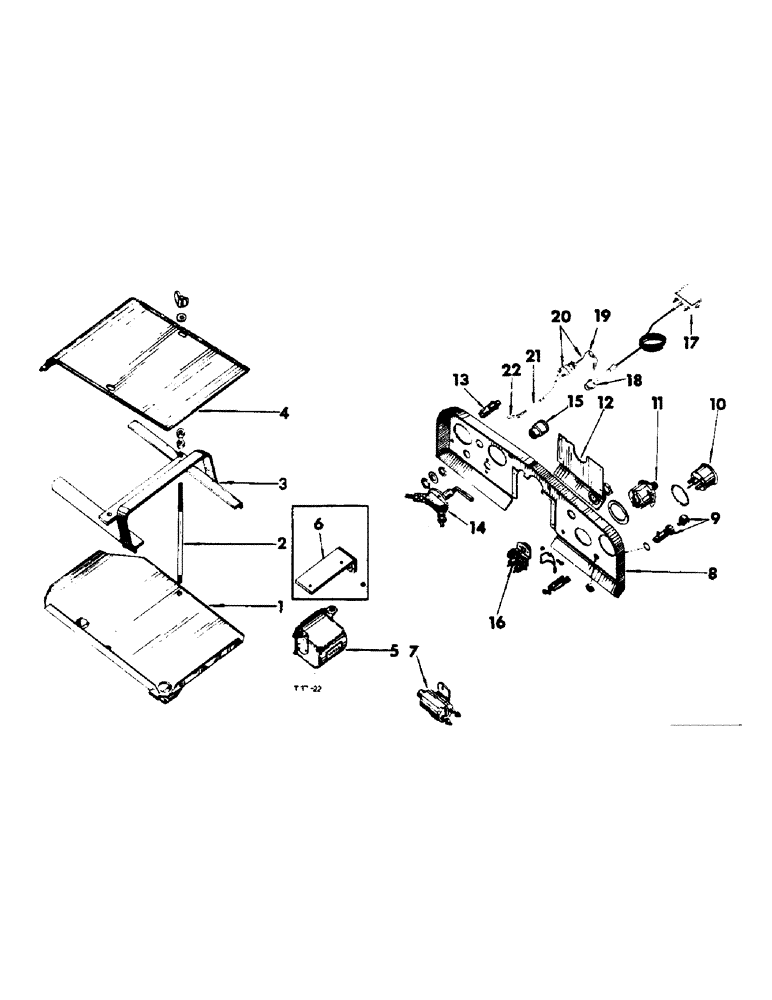

Запчасти Case IH B275 (040) - ELECTRICAL SYSTEM, INSTRUMENT PANEL, INSTRUMENTS AND BATTERY CARRIER (06) - ELECTRICAL SYSTEMS

1

3042756R91

CARRIER, battery, cpte. (DPA engines w/foot pedal accelerator)

1шт.

1

707526R91

CARRIER, batttery, cpte.

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external tooth, 3/8"

2шт.

2

707531R1

STUD, battery hold down

2шт.

3

707532R92

ROD

RETAINER, battery, assy.

1шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

707533R1

COVER, battery

1шт.

126032

WING NUT,3/8"-16

NUT, wing, type A, 3/8"

2шт.

Q1597

WASHER

plain steel, 13/32" I.D. x 3/4" O.D. x 16 ga.

2шт.

5

708969R92

REGULATOR

(12 V)

1шт.

109084

NUT,1/4"-20, G5

2шт.

113959

SCREW,Sl Rnd Hd, 1/4" - 20 x 1"

machine, slotted-rd.-hd., 1/4" x 1"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

705447R11

BRACKET, support, voltage regulator, cpte., Serial Range: up-B-275/8065

1шт.

181312

BOLT,Hex, 1/4" - 28 x 11/16", Gr 5

hex. hd., 1/4" UNF x 7/8"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

704668R91

IGNITION SWITCH

SWITCH, solenoid, starter motor, (12 V)

1шт.

103089

machine screw, hex. hd., no. 12

2шт.

113809

SCREW, machine, slotted-rd.-hd., no. 12 x 9/16"

2шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

2шт.

8

751185R11

PANEL, instrument

1шт.

704444R2

SCREW

NUT, speed, spire, 1/4" BSW

4шт.

704444R2

SCREW

(Cadmium plated) rd. hd., 1/4 BSW x 1/2"

4шт.

9

707481R92

HOLDER

fuse, cpte.

1шт.

706594R1

SCREW, rd. hd., brass, 5BA x 1/4"

1шт.

706595R1

NUT

lock, brass, 5BA

1шт.

706596R1

WASHER, brass, 5BA

1шт.

10

708109R92

NO LONGER SERVICED

AMMETER, cpte., Comprising

1шт.

3041057R1

BEZEL

1шт.

708637R1

CLAMP

2шт.

3041055R1

GLASS

1шт.

708636R1

NUT

2шт.

11

700165R92

SWITCH

(3 position) (Attachment)

1шт.

12

708435R1

PLATE, filler, instrument panel

1шт.

125706

SPARE PART

SCREW, pan hd., slotted, self tapping, type A, no. 8 x 1/4"

4шт.

13

705266R91

HORN

PUSH, horn

1шт.

14

709468R91

SWITCH

glow plug, service, assy., w/sleeve 707573R1

1шт.

109084

NUT,1/4"-20, G5

2шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

machine, slotted-truss-hd., 1/4" x 1/2"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

707573R1

SLEEVE

rubber

1шт.

15

709459R1

SLEEVE

rubber

1шт.

16

703557R92

RESISTOR

indicator, cpte.

1шт.

16

706685R92

RESISTOR

indicator, cpte.

1шт.

17

704538R92

NO LONGER SERVICED

INDICTOR, heat, assy.

1шт.

18

376575R1

NUT, heat indicator

1шт.

19

KEY, switch (Purchase locally)

1шт.

20

709282R91

SWITCH

ignition, assy.

1шт.

21

751685R91

CABLE, Serial Range: switch-solenoid

1шт.

22

705897R1

CONNECTOR, ELEC

CONNECTOR, cable

1шт.

709192R91

BODY, fuse holder, assy. (Only part of 707481R91)

1шт.

708637R1

CLAMP

terminal (Ammeter)

2шт.

455844

FUSE,25 Amp, Type 3AG

25 amp.

1шт.

709193R91

NO LONGER SERVICED

LID, fuse holder, assy. (Only part of 707481R91)

1шт.

708636R1

NUT, terminal (Ammeter)

2шт.

700489R1

SLEEVE

(Regulator)

4шт.

751686R1

TERMINAL

1шт.
