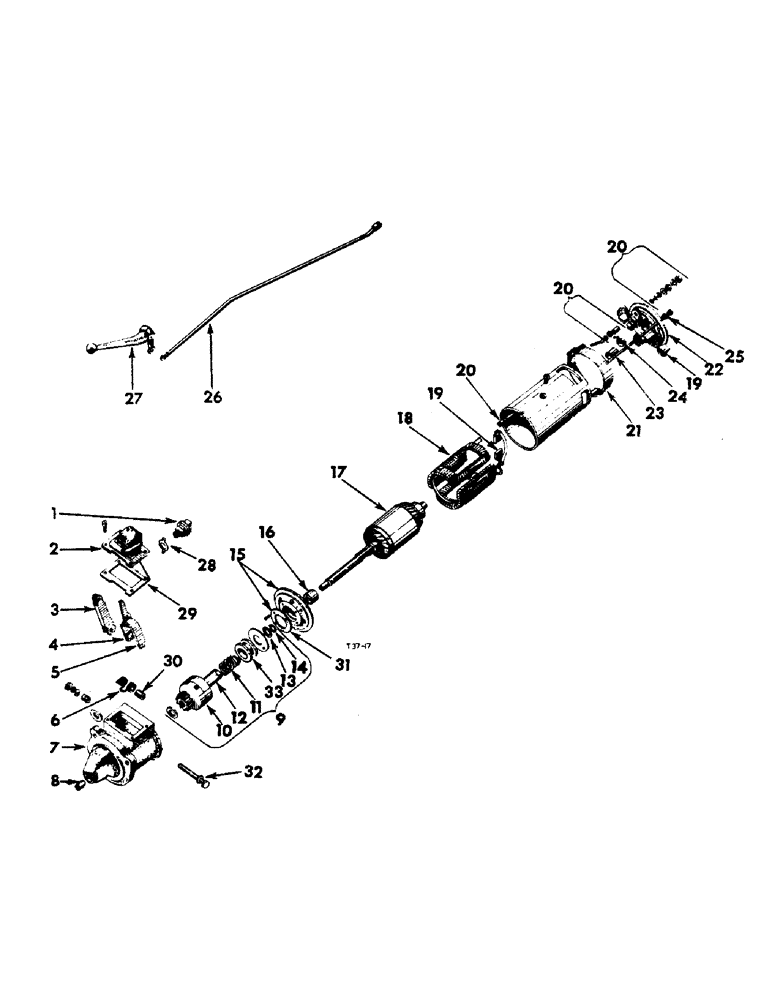

Запчасти Case IH B275 (038) - ELECTRICAL SYSTEM, STARTER MOTOR (06) - ELECTRICAL SYSTEMS

704447R92

MOTOR

STARTER MOTOR (12 V), Comprising

1шт.

705844R91

CYLINDER

ARMATURE

1шт.

705830R91

BAND

1шт.

705857R1

BOLT

2шт.

705834R91

BEARING

BRACKET

1шт.

705850R91

HOUSING

BRACKET

1шт.

705852R91

BRACKET

1шт.

3045650R1

BRACKET

1шт.

705833R91

BRUSH, COMMUTATOR

BRUSH SET

1шт.

705851R1

BUSHING

BUSH

1шт.

705853R1

BUSHING

BUSH

1шт.

702006R91

BUSHING

1шт.

705855R91

COIL

1шт.

3045649R1

COLLAR

2шт.

705859R1

COVER

1шт.

3045652R91

DRIVE

1шт.

705835R91

LEVER

1шт.

705836R91

LEVER

1шт.

705384R1

NUT

1шт.

705832R1

NUT

1шт.

705385R1

TAG

PLATE

1шт.

3045651R1

PLATE

1шт.

3045647R1

SCREW

1шт.

706715R91

SHOE SET

1шт.

705838R1

SPRING

1шт.

3043618R91

VALVE SPRING

SPRING SET

1шт.

705383R91

SWITCH

1шт.

705856R1

TERMINAL STRIP

TERMINAL

1шт.

3045658R1

TERMINAL

1шт.

3045655R1

WASHER

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex. hd., 3/8" x 1-1/8"

2шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1

705858R91

SWITCH

assembly (Note A)

1шт.

1

705383R91

SWITCH

assembly (Note B)

1шт.

2

705859R1

COVER

dust, rubber

1шт.

3045651R1

PLATE, dust over

1шт.

3

705836R91

LEVER, top, and stirrup assembly

1шт.

4

705835R91

LEVER, engaging, and shoe, assembly

1шт.

5

706715R91

SHOE, operating, and rivet assembly

1шт.

6

705838R1

SPRING, lever return

1шт.

7

705850R91

HOUSING

BRACKET/FRAME, fixing, assembly

1шт.

8

705851R1

BUSHING

BUSH, fixing bracket

1шт.

9

705839R91

DRIVE

ASSEMBLY (Order drive, 3045652R91) (Note A)

1шт.

9

3045652R91

DRIVE

ASSEMBLY (Note B)

1шт.

3045663R1

BUSH, pinion (Note B)

1шт.

3045661R1

CIRCLIP, clutch retaining (Note B)

1шт.

705848R91

SHIM

PACKAGE, shim, clutch adjusting

1шт.

705846R91

PLATE

S, clutch (Set)

1шт.

3045662R1

PLATE, clutch retaining (Note B)

1шт.

3045665R1

PLATE, pressure (Note B)

2шт.

3045653R91

RACE, inner, clutch (Set) (Note B)

1шт.

3045664R1

RING, rear, clutch plates (Note B)

1шт.

3045666R1

SPRING, cushioning pinion (Note B)

1шт.

10

705844R91

CYLINDER

PINION AND BARREL

1шт.

11

705840R1

SPRING, tension (Order package, 3045672R91) (Note A)

1шт.

11

3045660R1

SPRING, tension (Note B)

1шт.

12

705841R91

SLEEVE, and bush (Note A)

1шт.

13

705843R1

CUP, lock ring retaining

1шт.

14

705842R1

RING, lock

1шт.

15

705852R91

BRACKET/FRAME, brake, assembly

1шт.

16

705853R1

BUSHING

BUSH, brake bracket

1шт.

17

705854R91

ARMATURE

assembly

1шт.

18

705855R91

COIL

field, assembly

1шт.

19

705833R91

BRUSH, COMMUTATOR

BRUSH, set

1шт.

20

705856R1

TERMINAL STRIP

TERMINAL

1шт.

21

705830R91

BAND, cover,assembly

1шт.

3045647R1

SCREW, cover band securing

1шт.

705832R1

NUT

securing

1шт.

22

705834R91

BEARING

BRACKET/FRAME, assembly, (Comm. end)

1шт.

23

702006R91

BUSHING

bracket or frame

1шт.

24

3043618R91

VALVE SPRING

SPRING, set, brust tension

1шт.

25

705857R1

BOLT, fixing

2шт.

705860R91

PACKAGE

SUNDRY PARTS, set

1шт.

26

708347R1

RID, operating, manual starter

1шт.

Q1284

HEADED PIN,6.35mm OD x 19.05mm L

PIN, std. headed, 1/4" x 3/4"

1шт.

512166R1

PIN,1/4" x 7/8"

std. headed, 1/4" x 7/8"

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

2шт.

27

708346R1

LEVER, operating, manual starter

1шт.

11002VA

WASHER

plain, 17/32" I.D. x 7/8" O.D. x 16 ga.

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

28

705385R1

TAG

PLATE, switch fixing

1шт.

29

3045650R1

BRACKET, fixing, switch

1шт.

705384R1

NUT

switch fixing

1шт.

30

3045649R1

COLLAR, lever distance

1шт.

31

3045655R91

WASHER, brake, w/rivets

1шт.

32

3045648R1

BOLT, pivot, lever

1шт.

3045672R91

PACKAGE, service, operating drive bush and tension spring (Note A)

1шт.
