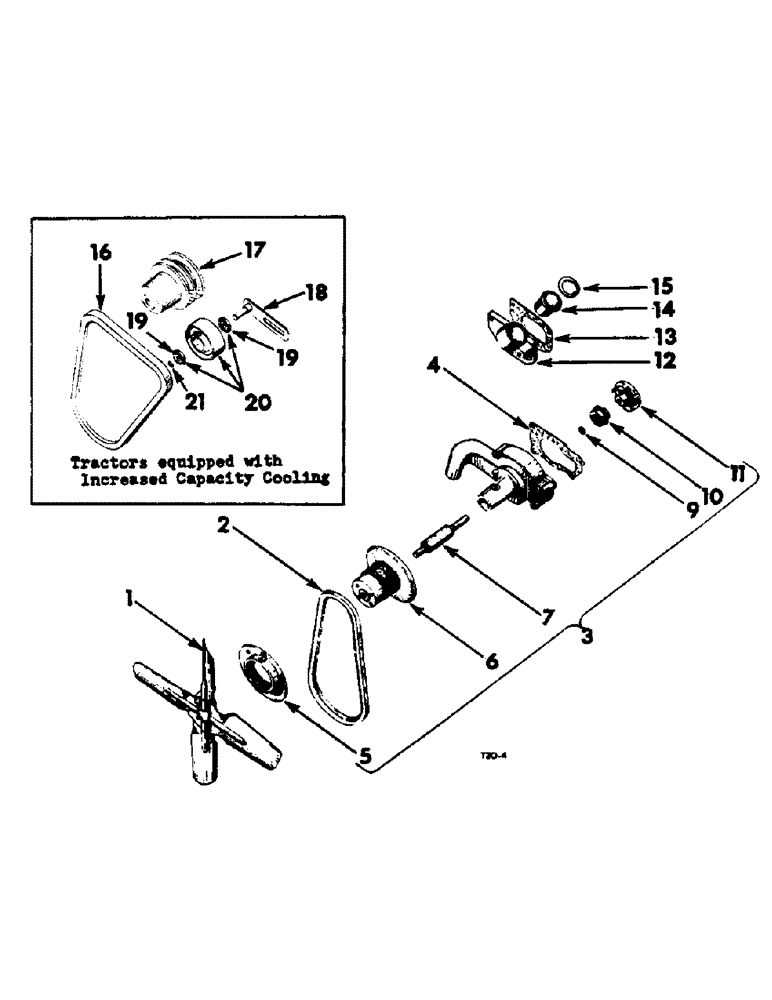

Запчасти Case IH B275 (031) - DIESEL ENGINE, FAN, THERMOSTAT AND WATER PUMP (01) - ENGINE

1

706749R91

FAN

blade assy.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

376371R1

V-BELT,0.64" W

Fan, Or 0.64" W

1шт.

2

709502R1

BELT

BELT, Fan

1шт.

3

703820R92

WATER PUMP

PUMP, water, cpte., Comprising

1шт.

3

703820R95GV

WATER PUMP

Value, Water Pump Assy.

1шт.

704217R91

NO LONGER SERVICED

BEARING

1шт.

704216R2

BODY

1шт.

Not supplied separately.

1шт.

704218R1

BOLT,1/4" - 20 x 1/2"

1шт.

703825R11

FLANGE

1шт.

704219R2

WASHER

FLINGER

1шт.

704222R1

HUB

1шт.

709909R1

IMPELLER

IMPELLOR

1шт.

703822R91

SEAL

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

103635

HOUSING

NUT, hex. 3/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

703816R1

GASKET

water pump

1шт.

5

703825R11

FLANGE

water pump pulley cpte. w/screw 102831 and nut 114502

1шт.

102831

SCREW

set, headless, dog pt., 5/16" x 7/8"

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

6

704222R1

HUB

water pump pulley

1шт.

7

704217R1

BEARING, spindle water pump

1шт.

704218R1

BOLT,1/4" - 20 x 1/2"

retaining water pump bearing

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

704219R2

WASHER

FLNGER, water pump spindle leak water

1шт.

10

703822R91

SEAL

water pump

1шт.

11

709909R1

IMPELLER

water pump

1шт.

12

703814R1

HOUSING

thermostat

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

13

703815R1

GASKET

thermostat housing

1шт.

14

369322R91

THERMOSTAT

(170 degrees F) or

1шт.

14

3042303R91

THERMOSTAT

(170 degrees F - 199 degrees F)

1шт.

15

3040778R1

RING

retainer, thermostat

1шт.

16

376372R1

BELT

fan, or

1шт.

16

3040315R1

BELT

fan

1шт.

17

3040316R1

HUB

water pump pulley

1шт.

18

3040313R11

BRACKET

fan belt adjusting pulley, cpte.

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

95-11041

WASHER,3/8"

(13/32 ID x 13/16 OD x .065) 3/8"

1шт.

19

3040303R91

BALL BEARING

BEARING, fan belt adjusting pulley

2шт.

19

3040307R91

CRANKSHAFT BEARING

BEARING, fan belt adjusting pulley, or

2шт.

19

3040808R91

CRANKSHAFT BEARING

BEARING, fan belt adjusting pulley, or

2шт.

20

3040302R11

PULLEY

fan belt adjusting, cpte.

1шт.

21

3040306R1

SNAP RING

CIRCLIP, retaining, fan belt adjusting pulley

1шт.
