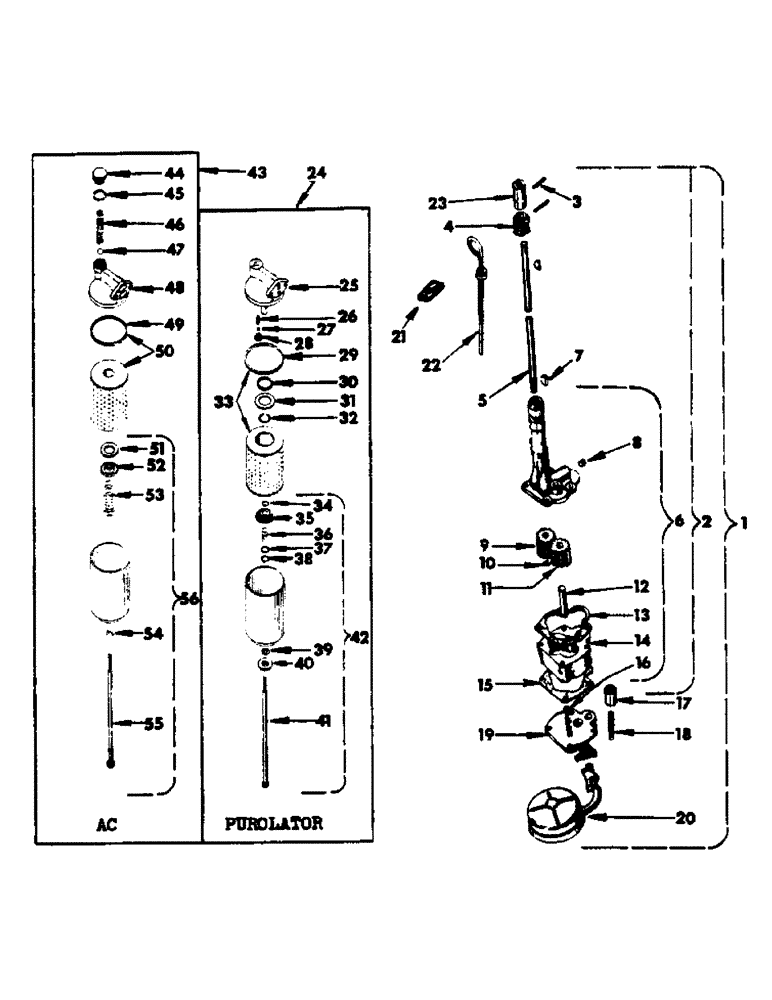

Запчасти Case IH B275 (028) - DIESEL ENGINE, LUBRICATION SYSTEM (01) - ENGINE

1

3043131R91

ENGINE OIL PUMP

PUMP, oil assy., BD-144/17289A up, Comprising

1шт.

751830R1

VALVE

BALL

1шт.

3043132R91

BODY

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

751828R1

COVER

1шт.

711558R1

GASKET

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

56108D

FILTER SCREEN

SCREEN

1шт.

751829R1

SPRING

1шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

6шт.

1

704105R94

ENGINE OIL PUMP

PUMP, oil assy., Up to BD-144/17288A, Comprising

1шт.

751830R1

VALVE

BALL

1шт.

751827R93

BODY

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

751828R1

COVER

1шт.

711558R1

GASKET

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

56108D

FILTER SCREEN

SCREEN

1шт.

751829R1

SPRING

1шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

6шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex. hd., 3/8" x 1-1/8", BD-144/7328A up

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Up to BD-144/7327A Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

3043132R91

BODY

oil pump assy., BD-144/17289A up, Comprising

1шт.

751831R91

BODY

1шт.

3042479R91

COUPLING

1шт.

751656R1

GEAR

1шт.

751657R1

GEAR

1шт.

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY

2шт.

704107R1

GEAR

PINION

1шт.

932204R1

LOCK PIN,M3 x 20, Slotted

PIN

2шт.

27999H

RING

RETAINER

1шт.

3042478R1

SHAFT

1шт.

2

751827R93

BODY

oil pump assy., BD-144/4879A to 17288A, Comprising

1шт.

Also including serial numbers BD-144/4729A to BD-144/4839A .

1шт.

751831R91

BODY

1шт.

751656R1

GEAR

1шт.

751657R1

GEAR

1шт.

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY

2шт.

704107R1

GEAR

PINION

1шт.

932204R1

LOCK PIN,M3 x 20, Slotted

PIN

1шт.

27999H

RING

RETAINER

1шт.

712095R1

SHAFT

1шт.

2

704106R91

NO LONGER SERVICED

BODY, oil pump assy., Up to BD-144/4878A, Comprising

1шт.

706630R91

BODY

1шт.

751656R1

GEAR

1шт.

751657R1

GEAR

1шт.

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY

2шт.

704107R1

GEAR

PINION

1шт.

932204R1

LOCK PIN,M3 x 20, Slotted

PIN

1шт.

27999H

RING

RETAINER

1шт.

712095R1

SHAFT

1шт.

3

932204R1

LOCK PIN,M3 x 20, Slotted

PIN, roll (3 MM dia. x 20 MM long)

2шт.

4

704107R1

GEAR

PINION, oil pump drive

1шт.

5

3042478R1

SHAFT

oil pump drive, BD-144/4879 up

1шт.

5

712095R1

SHAFT

oil pump drive, Serial Range: Up-BD-144/4878

1шт.

6

751831R91

BODY, oil pump, cpte., BD-144/4879A up

1шт.

Also including serial numbers BD-144/4729A to BD-144/4839A .

1шт.

6

706630R91

BODY, oil pump, cpte., Up to BD-144/4878A, Comprising

1шт.

NSS

NOT SOLD SEPARAT

BODY

1шт.

NSS

NOT SOLD SEPARAT

CASE

1шт.

706628R1

GASKET

1шт.

932205

PIN

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

7

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY, Woodruff, no. 5

2шт.

Not supplied separately.

1шт.

8

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, , Oil pump body Slotted, Headless, 1/8" NPT

1шт.

9

751656R1

GEAR

oil pump body

1шт.

Also including serial numbers BD-144/4729A to BD-144/4839A .

1шт.

10

27999H

RING

RETAINER, oil pump body gear

1шт.

11

751657R1

GEAR

oil pump idler

1шт.

Also including serial numbers BD-144/4729A to BD-144/4839A .

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT, oil pump idler

1шт.

13

706628R1

GASKET

oil pump body

1шт.

14

NSS

NOT SOLD SEPARAT

CASE, oil pump gear

1шт.

15

711558R1

GASKET

oil pump gear

1шт.

16

932205R1

LOCK PIN,M10 x 40, Slotted

PIN, roll (10 MM dia. x 40 MM long)

2шт.

17

751830R1

VALVE

BALL, oil pressure regulating valve, BD-144/4879A up

1шт.

Also including serial numbers BD-144/4729A to BD-144/4839A .

1шт.

17

16016R1

BALL

oil pressure regulating valve, Serial Range: Up-BD-144/4878A

1шт.

18

751829R1

SPRING

oil pressure regulating valve, BD-144/4878A

1шт.

Also including serial numbers BD-144/4729A to BD-144/4839A .

1шт.

18

713171R1

SHIM

SPRING, oil pressure regulating valve, Serial Range: Up-BD-144/4878A

1шт.

19

751828R1

COVER

oil pump, BD-144/4879A up

1шт.

Also including serial numbers BD-144/4729A to BD-144/4839A .

1шт.

19

708110R1

COVER, oil pump, Serial Range: Up-BD-144/4878A

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , Type A Int Tooth, 5/16"

6шт.

56108D

FILTER SCREEN

SCREEN, oil pump

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

21

706592R1

GASKET

lubricating oil filter base

1шт.

22

706977R91

DIPSTICK

GAUGE, oil level, cpte.

1шт.

23

3042479R1

COUPLING, BREAK AWAY

COUPLING, hourmeter drive, BD-144/17289A up

1шт.

24

708548R91

FILTER CARTRIDGE

FILTER, lubricating oil, assy. (Purolator) (Optional with 705612R91)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex hd, 3/8"-16 x 1-1/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

707873R1

HEAD

filter

1шт.

26

707865R1

SPRING

relief valve

1шт.

27

707870R1

BALL

relief valve

1шт.

28

707864R1

SEAT

relief valve

1шт.

29

707859R1

SEALING RING

SEAL, head

1шт.

30

707861R1

GASKET

1шт.

31

707868R1

GUIDE, element

1шт.

32

707874R1

CIRCLIP

1шт.

33

376364R91

ELEMENT

PACKAGE, service, oil filter element, or

1шт.

33

3042419R92

ENGINE OIL FILTER

PACKAGE, service, oil filter element

1шт.

34

707869R1

RETAINER

CIRCLIP

1шт.

35

707871R1

GUIDE, element - bottom

1шт.

36

707860R1

SPRING

1шт.

37

708967R1

WASHER

1шт.

38

707867R1

SEAL ASSY.

SEAL, centre spindle

1шт.

39

707863R1

O-RING,0.139" Thk x 0.296" ID, -203, Cl 5, 75 Duro

centre bolt

1шт.

40

707862R1

DISC

COLLAR, centre bolt

1шт.

41

707872R1

BOLT

centre

1шт.

42

707866R91

SUMP

assy.

1шт.

43

705612R91

FILTER

lubrication oil, assy. (AC) (Optional with 708548R91)

1шт.

44

705739R1

PLUG, valve

1шт.

45

705940R1

GASKET

valve plug

1шт.

46

705741R1

VALVE SPRING

SPRING, valve (Element relief)

1шт.

47

705743R1

BALL

valve (Engine relief)

1шт.

48

705738R91

HEAD

filter, assy., Comprising

1шт.

705743R1

BALL

1шт.

705742R1

COVER

1шт.

Also including serial numbers BD-144/4729A to BD-144/4839A .

1шт.

705744R1

GASKET

1шт.

705740R1

GASKET

1шт.

705745R1

INSERT

1шт.

Also including serial numbers BD-144/4729A to BD-144/4839A .

1шт.

705739R1

PLUG

1шт.

705735R1

SEAL

1шт.

705741R1

VALVE SPRING

SPRING

1шт.

49

705744R1

GASKET

SEAL, head

1шт.

50

705747R91

ELEMENT

PACKAGE, service, oil filter element, or

1шт.

50

376364R91

ELEMENT

PACKAGE, service, oil filter element

1шт.

51

705735R1

SEAL

element

2шт.

52

705734R1

RETAINER

lower seal

1шт.

53

705737R1

RETAINER

SPRING, element retainer

1шт.

54

705733R1

WASHER

centre bolt

1шт.

55

705732R1

BOLT

centre

1шт.

56

705731R91

SHELL

assy.

1шт.
