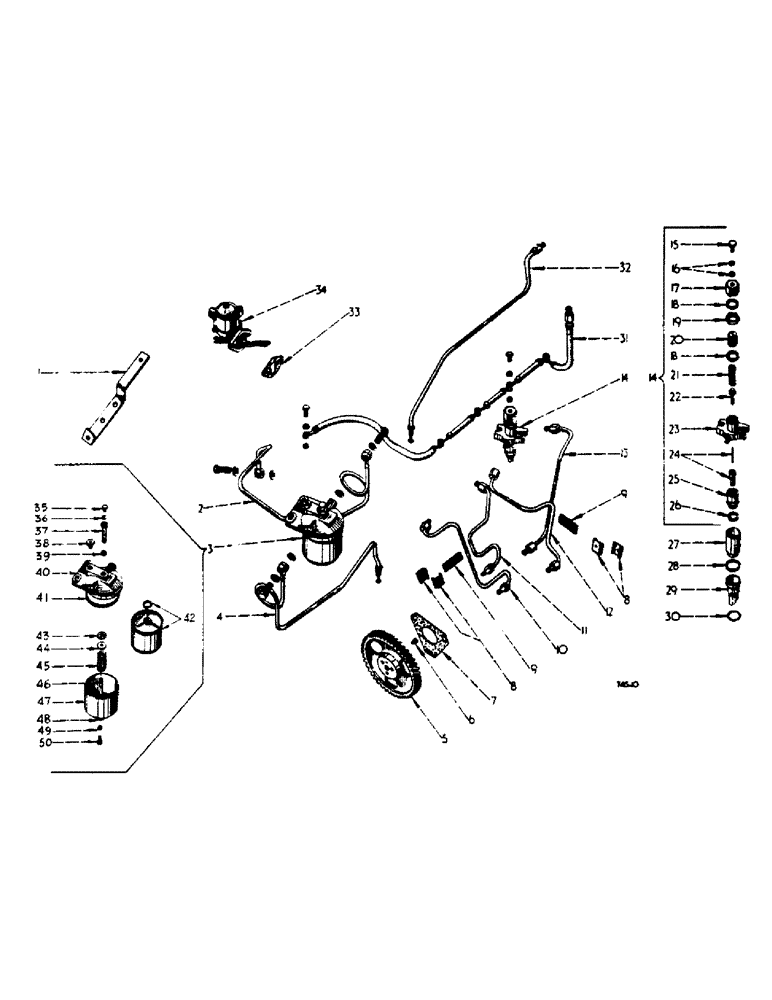

Запчасти Case IH B275 (025) - DIESEL ENGINE, INJECTION SYSTEM AND PRE-COMBUSTION CHAMBER, BD-144/17289A UP (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
705425R1
BRACKET, fuel filter support
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
102635
NUT,3/8"-16, G5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
2
708991R91
PIPE, fuel pump to filter, cpte.
1шт.
708293R1
BOLT
banjo, fuel filter
1шт.
708296R1
CONNECTOR, ELEC
BOLT, banjo, fuel feed pump
1шт.
708297R1
GASKET
WASHER, banjo, fuel feed pump
2шт.
704643R1
WASHER
banjo, fuel filter
1шт.
3
709004R92
FILTER, fuel
1шт.
413-818
BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5
hex. hd., 1/2" x 1-1/8"
2шт.
102637
NUT,1/2"-13, G5
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
4
708992R91
PIPE
fuel, fuel filter to injection pump, cpte.
1шт.
708293R1
BOLT
banjo, fuel filter
1шт.
704643R1
WASHER
banjo, fuel filter
2шт.
5
708290R11
GEAR
injection pump, cpte., w/pin 708291R1
1шт.
425463
SCREW,Hex Hd, 5/16"-24 x 3/4", w/LW
machine, hex. hd., 5/16" UNF x 3/4", with external tooth lockwasher
3шт.
6
708289R1
BOLT
PIN, dowel
1шт.
7
708289R1
BOLT
GASKET, injection pump
1шт.
8
841432R1
CLAMP
CLIP, injection pipe
4шт.
703700R1
NUT, self locking, no. 12-24, type P
2шт.
100780
VALVE
SCREW, machine, no. 12-24 x 7/8"
2шт.
9
841433R1
INSULATOR BLOCK
PAD, injection pipe
2шт.
10
708307R21
PIPE
injection, no. 1, cpte.
1шт.
11
708308R21
TUBE
PIPE, injection, no. 2, cpte
1шт.
12
708309R21
PIPE
injection, no. 3, cpte.
1шт.
13
708310R21
PIPE
injection, no. 4, cpte
1шт.
14
3040870R91
FUEL SYSTEM INJECTOR
NOZZLE, AND NOZZLE HOLDER, cpte., Comprising
4шт.
706275R91
NOZZLE HOLDER
BODY
1шт.
706289R1
BOLT
1шт.
706290R1
CAP
1шт.
706292R1
NUT
1шт.
706288R1
NUT
1шт.
706283R1
NUT
1шт.
3040871R91
NOZZLE CAP
NOZZLE
1шт.
706282R91
NEEDLE BEARING CAGE
SPINDLE
1шт.
706293R1
SPRING
1шт.
706287R1
WASHER
2шт.
703519R1
WASHER
2шт.
706291R2
SEALING WASHER,14.5mm ID x 21mm OD x 1.42mm Thk
1шт.
103026
NUT,3/8"-24, G5
8шт.
706077R1
WASHER
8шт.
15
706289R1
BOLT
banjo
4шт.
16
703519R1
WASHER
8шт.
17
706288R1
NUT
cap, nozzle holder
4шт.
18
706287R1
WASHER
8шт.
19
706292R1
NUT, lock
4шт.
20
706290R1
CAP, spring
4шт.
21
706293R1
SPRING
4шт.
22
706282R91
NEEDLE BEARING CAGE
SPINDLE, assy.
4шт.
23
706275R91
NOZZLE HOLDER
BODY, nozzle holder, assy.
4шт.
24
3040871R91
NOZZLE CAP
NOZZLE, cpte.
4шт.
25
706283R1
NUT
nozzle cap
4шт.
26
706291R2
SEALING WASHER,14.5mm ID x 21mm OD x 1.42mm Thk
4шт.
27
708314R1
CHAMBER
HOLDER, pre-combustion chamber
4шт.
28
710382R3
GASKET,29mm ID x 35mm OD x 1.22mm Thk
pre-combustion chamber, upper
4шт.
29
705359R1
NO LONGER SERVICED
CHAMBER, pre-combustion
4шт.
30
710383R1
GASKET
pre-combustion, lower
4шт.
31
705430R91
PIPE
fuel spill (Filter and injector to fuel tank)
1шт.
32
708993R91
PIPE, fuel, pump to fuel return pipe
1шт.
33
708295R1
GASKET
feed pump
1шт.
Ref #33 - 3043370R1 (Component) 1/17/95
1шт.
34
708294R91
FEED PUMP
PUMP, feed, cpte.
1шт.
138221
BRACKET
BOLT, socket hd., 5/16" x 3/4"
2шт.
35
3041357R1
BOLT
vent
1шт.
36
3041358R1
WASHER
vent bolt
1шт.
37
3041364R1
BOLT
1шт.
38
3044912R1
PLUG
1шт.
39
3041358R1
WASHER
1шт.
40
3041360R1
COVER, housing (Order filter, 709004R92)
1шт.
CIRCLIP
1шт.
41
704639R1
GASKET
WASHER, cover sealing
1шт.
42
704640R91
FILTER, ELEMENT
ELEMENT, filter, assy.
1шт.
43
3041349R1
OIL SEAL
RING, sealing, lower
1шт.
44
3041350R1
WASHER, flat
1шт.
45
3041356R1
SPRING
lower
1шт.
46
3041353R1
BOLT, centre housing
1шт.
47
3041352R1
HOUSING
1шт.
48
3041354R1
CUP, base
1шт.
3041355R1
RING, sealing
1шт.
49
3041358R1
WASHER
draing plug
1шт.
50
3041357R1
BOLT
PLUG, drain
1шт.
708114R1
CLIP, fuel pipe
1шт.
707321R91
ELECTRICAL WIRE
SEAL, governor
1шт.
3040973R1
STUD, vent, fuel filter orifice
1шт.
703519R1
WASHER
fuel filter orifice vent stud
1шт.
Выбрано товаров: 89
